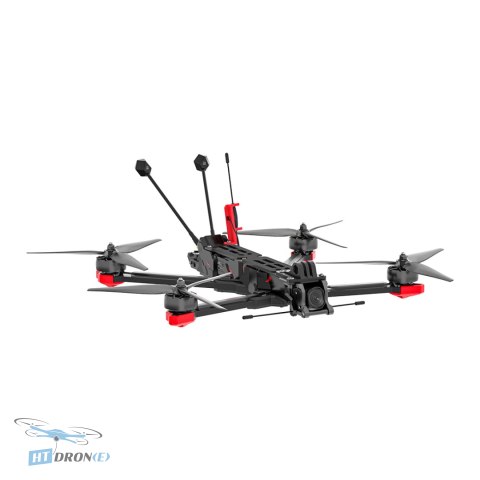

IFlight Chimera7 Pro V2 O4 Pro BNF 6S TBS GPS FPV Drone for Long Range Adventures

Introduction

The iFlight Chimera7 Pro V2 is engineered for FPV pilots who demand the ultimate in long-range performance and immersive flight experience. As the 'KING of FPV long range,' this 7.5-inch drone sets a new standard, allowing you to reach previously inaccessible locations. Its design prioritizes extended flight times by accommodating larger batteries, making it perfect for epic adventures like aerial filming in challenging terrains. The robust construction and powerful components ensure reliable performance, even in demanding conditions.

Key Advantages

• Unrivaled Long-Range FPV: Equipped with the latest DJI O4 Air Unit, offering up to 13km transmission range and low latency for superior control and immersion.
• Powerful Performance: Driven by smooth and durable XING2 2809 motors, providing maximum control over large 7.5-inch propellers.
• Enhanced Durability & Protection: Features the latest Chimera7 Pro frame design for maximum protection against dirt and debris, ensuring component longevity.
• Extended Flight Times: Designed to carry larger batteries, allowing for significantly longer flight durations, perfect for extended missions.
• Superior Video Quality: Capture stunning 4K stabilized video with a 155° ultra-wide-angle lens, delivering breathtaking visuals.
• Safety Features: Integrated GPS for easy Return-to-Home functionality and a protected battery plug with an anti-spark filter to safeguard electronics.
• Smooth & Stable Flight: Rigid frame construction minimizes resonance, while advanced flight control ensures a stable and precise flying experience.
• Reliable Video Transmission: The DJI O4 system provides stable 1080p/100fps video at up to 60 Mbps, ensuring a clear and responsive live feed.

Technical Specifications

• Product Name: Chimera7 Pro V2 6S HD
• Frame Geometry: DC (DeadCat)
• Flight Controller (FC): BLITZ F722 Flight Controller
• Electronic Speed Controller (ESC): BLITZ E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O4 Air Unit Pro
• Frame Wheelbase: 327±2 mm
• Motor: XING2 2809 1250KV Motors
• Propellers: HQ 7.5x3.7x3 / HQ 7.5x3x3 Propellers
• Weight: 725±5 g
• Takeoff Weight (with 8000mAh battery): Approx. 1621±5 g
• Dimensions (L×W×H): 270 × 199 × 34 ± 2 mm
• Max Speed: 140 km/h
• Max Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 30 min (no load, with 6S 8000mAh 21700 battery)
• Operating Temperature: -10° to 40° C
• Antennas: Dual Antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass
• Receiver: TBS Crossfire Nano RX
• Video Transmission - Product Name: DJI O4 Air Unit Pro
• Video Transmission - Image Sensor: 1/1.3 inch
• Video Transmission - Lens: Field of View: 155°
• Video Transmission - ISO: 100-25600
• Video Transmission - Video Resolution: 1080p/100fps H.265
• Video Transmission - Video Format: MP4, Max Video Bitrate: 130 Mbps
• Video Transmission - Color Mode: Normal Mode/D-Log M
• Video Transmission - Stabilization: RockSteady 3.0+
• Video Transmission - Live View Quality: 1080P@100fps
• Video Transmission - Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
• Video Transmission - Transmitter Power (EIRP): 5.1 GHz＜23 dBm (CE)/5.8 GHz＜33 dBm (FCC)/＜14 dBm (CE)/＜30 dBm (SRRC)
• Video Transmission - Max Video Transmission Distance: 15 km (FCC), 8 km (CE), 8 km (SRRC) with DJI Goggles 3/DJI Goggles N3
• Video Transmission - Communication Bandwidth: Max. 60 MHz
• Video Transmission - Built-in Storage: 4 GB
• Video Transmission - Supported SD Cards: microSD (up to 512 GB)
• Video Transmission - Operating Temperature: -10° to 40° C
• Video Transmission - Weight: Air Unit (with camera module): Approx. 32 g
• Video Transmission - Dimensions: Transmitter Module: 33.5 × 33.5 × 13 mm (L×W×H)

Applications

This FPV drone is ideal for long-range exploration, cinematic aerial videography, FPV adventures, and professional UAV applications requiring extended flight times and reliable video transmission. Its capabilities make it suitable for capturing stunning footage in remote locations and for pilots looking to push the boundaries of flight distance.

Compatibility

The drone is equipped with a TBS Crossfire Nano RX receiver. It is compatible with DJI Goggles 3 and DJI Goggles N3 for video transmission. The frame supports mounting larger batteries, including 6S 8000mAh 21700 configurations, for extended flight. The included propellers are HQ 7.5x3.7x3 and HQ 7.5x3x3.

FAQ

What is the maximum video transmission range of the iFlight Chimera7 Pro V2 O4 Pro drone?

The iFlight Chimera7 Pro V2 O4 Pro drone offers a maximum video transmission range of up to 15 km (FCC) or 8 km (CE/SRRC) when used with compatible DJI Goggles like the DJI Goggles 3 or DJI Goggles N3.

What type of motors does the iFlight Chimera7 Pro V2 use for powerful flight?

This drone is equipped with powerful and smooth iFlight XING2 2809 1250KV motors, designed for maximum control over its 7.5-inch propellers.

Can this FPV drone be used for professional aerial filming?

Yes, the iFlight Chimera7 Pro V2 is well-suited for professional aerial filming thanks to its 4K stabilized video capabilities, 155° ultra-wide-angle lens, and extended flight time potential.

What safety features are included in the iFlight Chimera7 Pro V2?

The drone includes built-in GPS for Return-to-Home functionality and a protected battery plug with an anti-spark filter to prevent damage to the XT60 connectors and connected electronics.

Where can I buy the iFlight Chimera7 Pro V2 O4 Pro FPV Drone with fast delivery?

You can order the iFlight Chimera7 Pro V2 O4 Pro FPV Drone directly from HTDRONE. We offer fast shipping within Poland and reliable international delivery via DHL.
