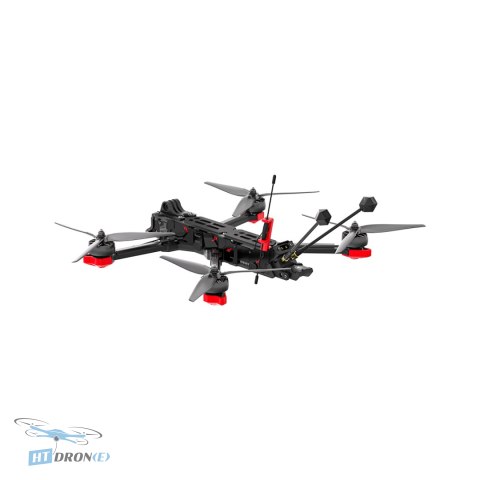

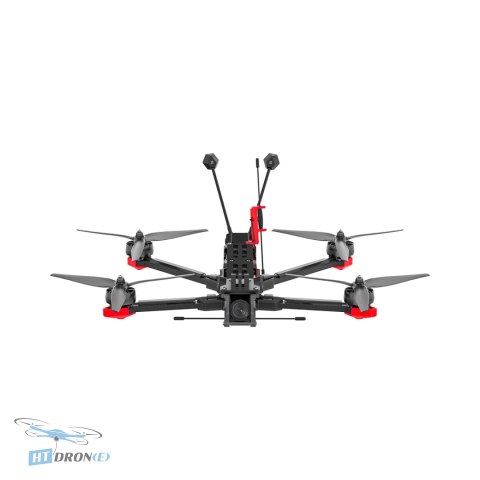

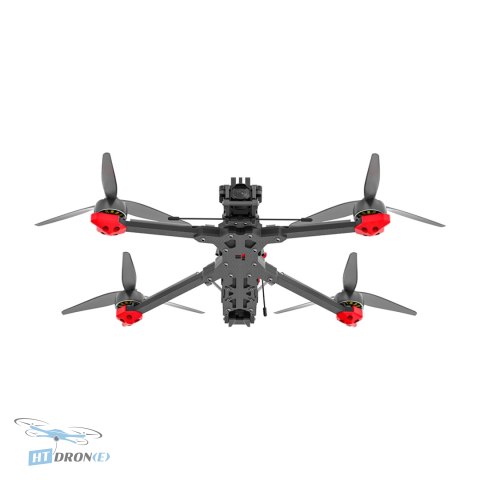

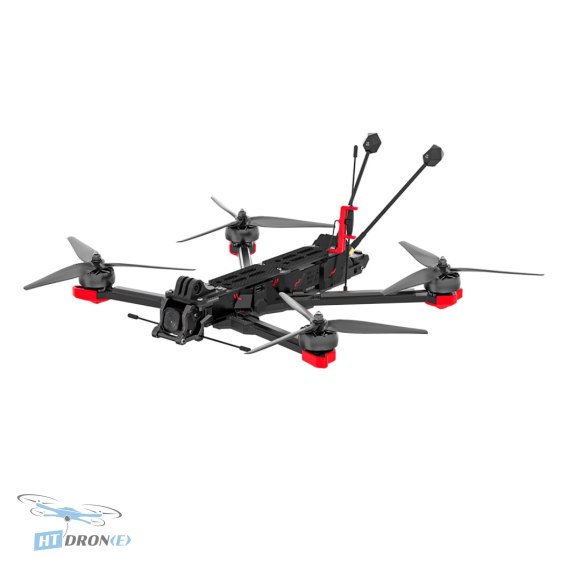

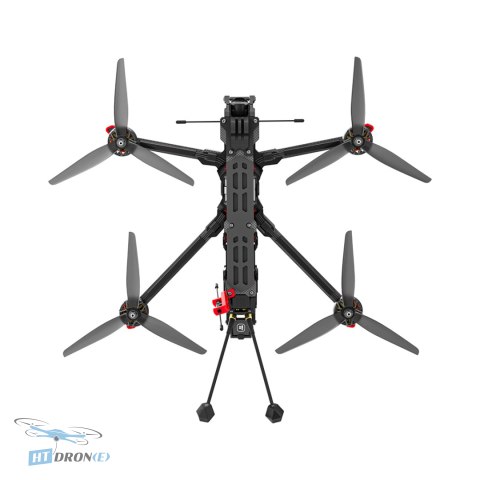

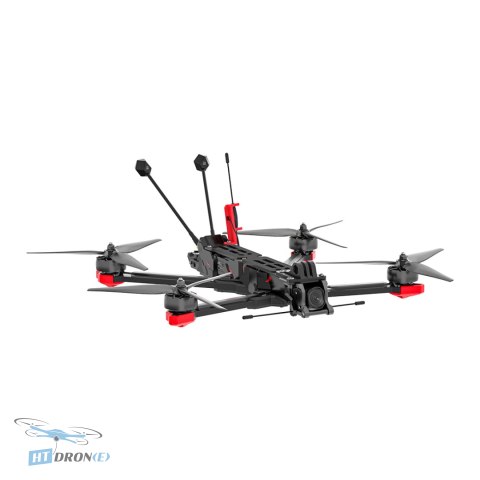

IFlight Chimera7 Pro V2 O4 Pro BNF FPV Drone with TBS Crossfire Diversity Nano GPS
Experience the ultimate FPV long-range adventure with the iFlight Chimera7 Pro V2. This 7.5-inch BNF drone features the advanced DJI O4 Air Unit for superior video transmission and extended flight range. Perfect for exploring new locations and extended flight times, it boasts powerful XING2 motors, a durable frame with enhanced protection, and integrated GPS for safety. Buy the best for your aerial explorations at HTDRONE.
| Enter your email |
| Reviews | |
| Price of consignment | 0 |
| The Availability Of |
|
| Leave your phone |
Introduction
The iFlight Chimera7 Pro V2 O4 Pro BNF is engineered for the serious FPV pilot seeking unparalleled long-range performance. Dubbed the 'KING of FPV long range', this 7.5-inch drone redefines aerial exploration, allowing access to previously unreachable locations. Its design accommodates larger batteries for extended flight times, making it ideal for ambitious adventures like alpine surfing. Built with a super rigid frame to minimize resonance and powered by XING2 2809 motors, it offers maximum control for its 7.5-inch propellers.
Key advantages
- Powerful and smooth XING2 motors for reliable performance.
- Latest Chimera7 Pro frame design for maximum protection against dirt and debris.
- Advanced DJI O4 video transmission for immersive FPV experience and extended range.
- Ultra-wide 155° FOV 4K stabilized video for breathtaking aerial footage.
- Battery connector with anti-spark filter to protect electronics and extend connector life.
- Integrated GPS for enhanced safety and easy return-to-home functionality.
- High-quality components ensure durability and peak performance for long-range flights.
- Versatile battery mounting options for extended flight duration.
Technical specifications
- Product Name: Chimera7 Pro V2 6S HD
- Frame Geometry: DC (DeadCat)
- Flight Controller: BLITZ F722 Flight Controller
- ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
- Video Transmission: DJI O4 Air Unit Pro
- Frame Wheelbase: 327±2 mm
- Motor: XING2 2809 1250KV Motors
- Propellers: HQ 7.5x3.7x3 / HQ 7.5x3x3 Propellers
- Weight: 725±5 g
- Takeoff Weight with 8000mAH Battery: Approx. 1621±5 g
- Dimensions: 270x199x34±2 mm (L×W×H)
- Max Speed: 140 km/h
- Max Takeoff Altitude: 3200 m
- Max Hover Time: Approx. 30 min (unloaded, with 21700 6S 8000 mAh battery)
- Operating Temperature: -10° to 40° C
- Antennas: Dual Antennas
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass
- Receiver: TBS Crossfire Diversity NANO RX
- Video Transmission - Product Name: DJI O4 Air Unit Pro
- Video Transmission - Image Sensor: 1/1.3 inch
- Video Transmission - Lens FOV: 155°
- Video Transmission - ISO: 100-25600
- Video Transmission - Video Resolution: 1080p/100fps H.265
- Video Transmission - Video Format: MP4, Max Video Bitrate: 130 Mbps
- Video Transmission - Color Mode: Normal Mode/D-Log M
- Video Transmission - Stabilization: RockSteady 3.0+
- Video Transmission - Live View Quality: 1080P@100fps
- Video Transmission - Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
- Video Transmission - Transmitter Power (EIRP): 5.1 GHz＜23 dBm (CE)/5.8 GHz＜33 dBm (FCC)/＜14 dBm (CE)/＜30 dBm (SRRC)
- Video Transmission - Max Video Transmission Range: 15 km (FCC) with DJI Goggles 3/DJI Goggles N3
- Video Transmission - Communication Bandwidth: Max 60 MHz
- Video Transmission - Built-in Storage: 4 GB
- Video Transmission - Supported SD Cards: microSD (up to 512 GB)
- Video Transmission - Operating Temperature: -10° to 40° C
- Video Transmission - Weight: Air Unit (with camera module): Approx. 32 g
- Video Transmission - Dimensions: Transmission module: 33.5×33.5×13 mm (L×W×H)
Applications
This FPV drone is designed for long-range exploration, aerial photography, cinematic FPV, and demanding FPV adventures. Its robust build and advanced features make it suitable for pilots looking to push the boundaries of flight distance and explore challenging environments.
Compatibility
The drone comes equipped with a TBS Crossfire Diversity Nano RX receiver. It is compatible with DJI O4 Air Unit compatible goggles. The flight controller supports 2-6S LiPo batteries. Propellers are HQ 7.5x3.7x3 or HQ 7.5x3x3. Supports microSD cards up to 512 GB for video recording.
FAQ
What is the maximum video transmission range of the iFlight Chimera7 Pro V2 O4 Pro?
The DJI O4 Air Unit Pro on the Chimera7 Pro V2 offers a maximum video transmission range of up to 15 km (FCC) with compatible goggles like DJI Goggles 3 or DJI Goggles N3.
What type of receiver is included with the iFlight Chimera7 Pro V2?
This FPV drone comes with a TBS Crossfire Diversity Nano RX receiver, ensuring reliable control for long-range flights.
How long can the iFlight Chimera7 Pro V2 hover on a single charge?
With an 8000 mAh 6S battery, the iFlight Chimera7 Pro V2 can achieve a maximum hover time of approximately 30 minutes when unloaded.
What makes the Chimera7 Pro V2 suitable for long-range FPV?
It features the advanced DJI O4 Air Unit for extended video range, powerful XING2 motors for efficient flight, a robust frame for durability, and integrated GPS for safety, all designed for pushing flight boundaries.
Where can I buy the iFlight Chimera7 Pro V2 FPV drone with fast delivery?
You can order the iFlight Chimera7 Pro V2 FPV drone from HTDRONE, your specialized FPV parts store based in Poland. We offer fast international delivery via DHL.
