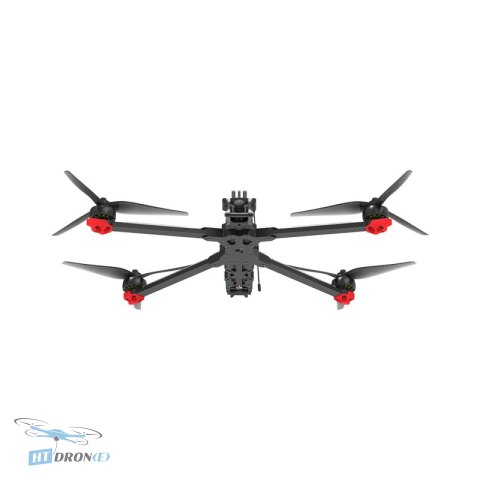

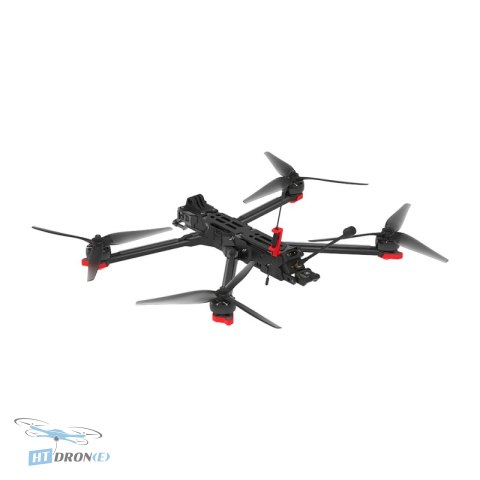

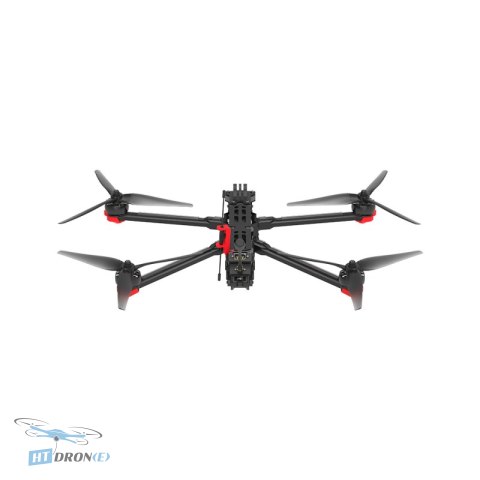

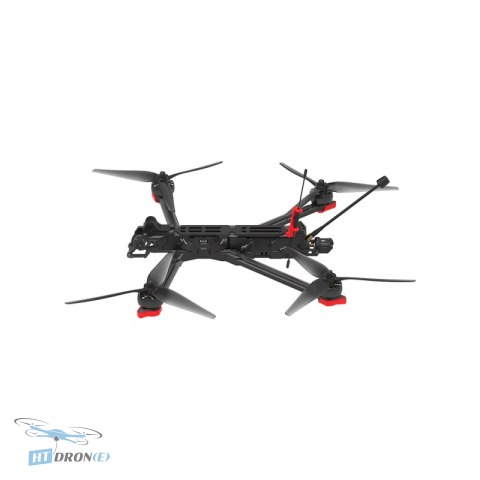

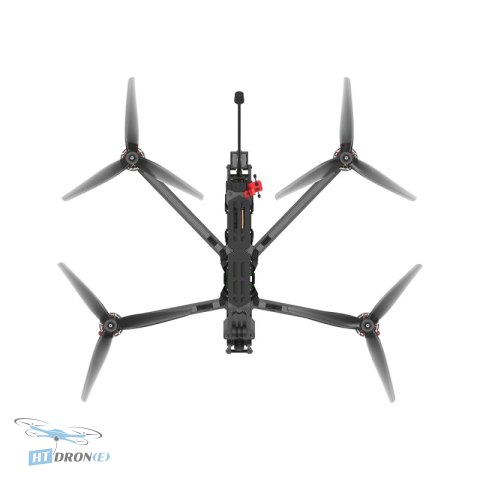

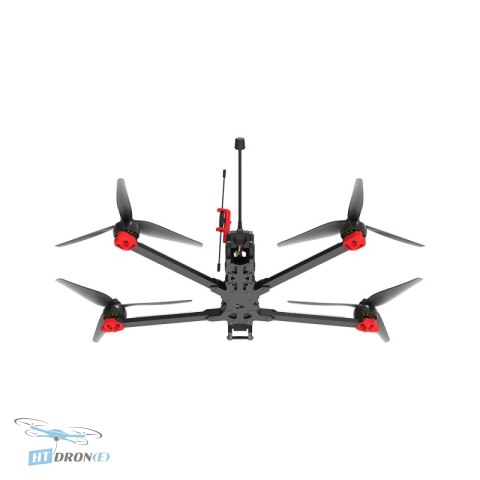

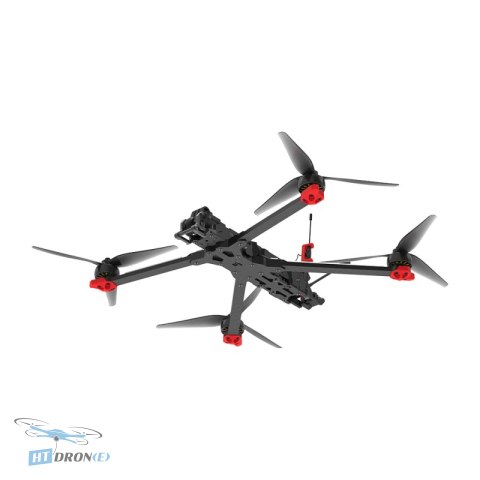

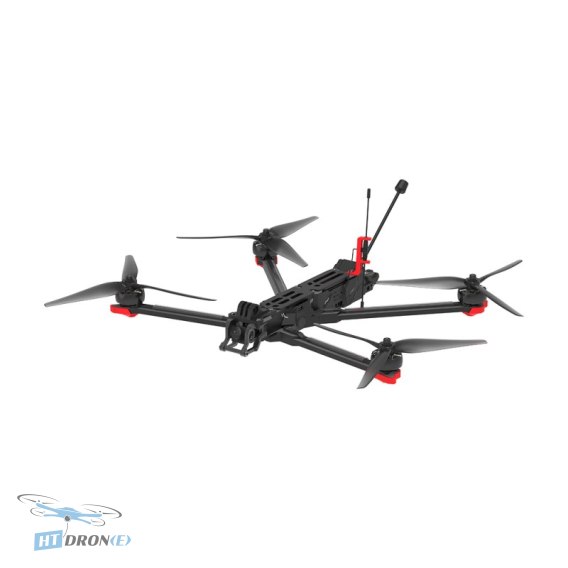

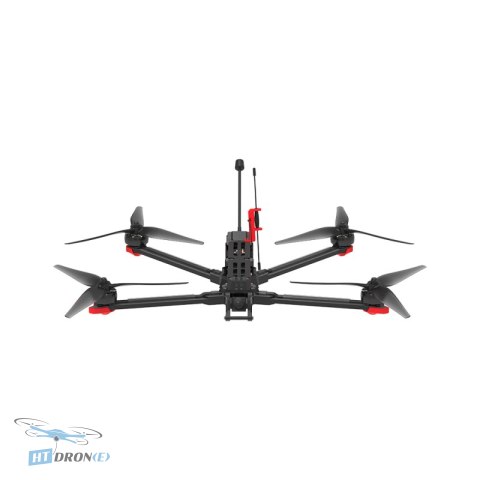

IFlight Chimera9 Analog BNF (ELRS 868/915MHz) Long Range FPV Drone

Introduction

The iFlight Chimera9 Analog BNF (ELRS 868/915MHz) is a high-performance FPV drone designed for serious long-range enthusiasts. It combines advanced features with robust construction to provide a reliable and exhilarating flying experience. Whether you're exploring vast distances or pushing the limits of FPV flight, the Chimera9 is engineered to meet the demands of seasoned pilots.

Key advantages

• Smooth and powerful XING2 motors with unibell technology for durability and performance.
• Latest Chimera9 frame design for maximum component protection and optimized cooling.
• Secure battery connector with an anti-spark filter to protect electronics and extend connector life.
• Pre-installed GPS for enhanced safety, including Betaflight GPS Rescue mode readiness.
• High-performance BLITZ components for smooth flight control and powerful output.
• Long flight times, with up to approximately 33 minutes of hover time.
• Ready-to-fly (BNF) configuration for quick setup and immediate flight.
• Integrated ELRS 868/915MHz receiver for reliable long-range control.

Technical specifications

• Product Name: Chimera9 6S Analog
• Model: Chimera 9inch
• Flight Controller (FC): BLITZ F722 Flight Controller
• Electronic Speed Controller (ESC): BLITZ E55 4-IN-1 2-6S 55A ESC
• Video Transmitter (VTX): BLITZ Whoop 1.6W VTX
• Camera: RaceCam R1 Mini 1000TVL 2.5mm
• Geometry: DeadCat (DC)
• Frame Wheelbase: 405 mm
• Motor: XING2 2809 Motors
• Propeller: 9X4X3 propellers
• Weight: 776g (without battery)
• Dimensions (L×W×H): 360x235x34mm
• Max Speed: 140km/h
• Max Takeoff Height: 6000 m
• Max Hover Time: Approx. 33 minutes
• Operating Temperature: -10° to 40° C (14° to 104° F)
• Antennas: Single antennas
• GNSS: GPS + Galileo
• Payload Capacity: 1.5-2.2 kg
• Receiver Option: ELRS868/915
• VTX Product Name: BLITZ Whoop 1.6W VTX
• VTX Input Voltage: 7V - 34V
• VTX Interface: MMCX
• VTX Power Levels: PIT/25mW/400mW/800mW/1600mW
• VTX Channels: 40 (including Raceband)
• VTX Mounting Hole Spacing: 30.5x30.5 mm/Φ3
• VTX Weight: 18.9 g (without antenna)
• VTX Telemetry: IRC Tramp
• VTX RC Tramp Table Values: 25mW/400mW/800mW/1600mW

Applications

This drone is ideally suited for long-range FPV flights, aerial exploration, cinematic FPV, and extended duration missions where reliable control and GPS features are essential. Its robust design also makes it suitable for pilots who want a durable platform for various FPV applications.

Compatibility

The Chimera9 Analog BNF is compatible with 6S LiPo batteries. It features a secure XT60 battery connector with an integrated anti-spark circuit. The integrated ELRS 868/915MHz receiver ensures compatibility with compatible ELRS radio transmitters.

FAQ

What is the maximum flight time of the iFlight Chimera9 Analog BNF drone?

The iFlight Chimera9 Analog BNF drone boasts an impressive maximum hover time of approximately 33 minutes, allowing for extended exploration and FPV sessions.

Does the iFlight Chimera9 Analog BNF drone include GPS functionality?

Yes, the drone comes with pre-installed GPS for enhanced safety, including readiness for Betaflight GPS Rescue mode. This feature helps you find your way back during long-range flights.

What type of motors does the iFlight Chimera9 Analog BNF drone use?

It is equipped with smooth and powerful iFlight XING2 2809 motors, featuring durable unibell technology, a titanium alloy shaft, and NSK bearings for reliable performance.

Where can I buy the iFlight Chimera9 Analog BNF drone with fast delivery?

You can buy the iFlight Chimera9 Analog BNF drone at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our shop for the best deal.

What is the payload capacity of the iFlight Chimera9 Analog BNF drone?

The iFlight Chimera9 Analog BNF drone has a payload capacity of 1.5-2.2 kg, making it suitable for carrying FPV equipment or other light payloads.
