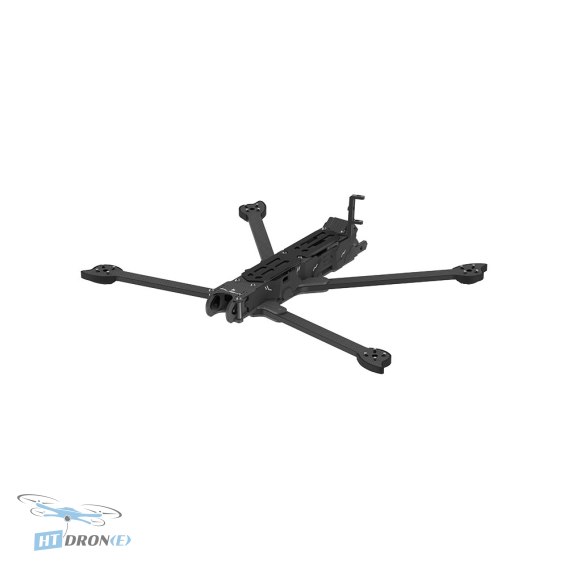

IFlight Chimera9 ECO 9" FPV Racing & Freestyle Drone Frame Kit - 405mm Wheelbase

Introduction

The iFlight Chimera9 ECO Frame Kit is a versatile and robust frame engineered for the demands of FPV racing and freestyle piloting. It provides an excellent balance of lightweight construction and durable materials, ensuring superior agility and crash resistance during intense aerial maneuvers. The thoughtful design prioritizes ease of assembly and maintenance, making it an ideal choice for builders of all levels.

Key advantages

• Durable and lightweight construction for optimal performance.
• Versatile design suitable for both FPV racing and freestyle flying.
• User-friendly assembly and maintenance features.
• Accommodates large batteries, mountable on top or bottom for balanced flight.
• Robust materials ensure resilience against impacts and crashes.
• Designed for smooth flight characteristics and high maneuverability.
• Optimized for various flight stack and VTX configurations.
• Includes essential accessories for a complete build.

Technical specifications

• Product Name: Chimera9 ECO Frame Kit
• Geometry: DeadCat (DC)
• Wheelbase: 405mm
• Frame Dimension: L360*W235*H34 mm
• Frame Body Dimension: 34 mm
• Arm Thickness: 6 mm
• Bottom Plate Thickness: 3 mm
• Top Plate Thickness: 2 mm
• Upper Deck Thickness: 3mm
• Max Stack Height: 21 mm
• Max VTX Height: 30 mm
• Flight Stack Mount: 30.5*30.5mm φ3mm
• VTX Mount: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
• Motor Mount: 16x16mm / 19*19mm φ3mm
• Weight: 377g

Applications

This frame is ideally suited for high-performance FPV applications including racing, freestyle acrobatics, and general aerial exploration where durability and agility are paramount. It can be configured for various flying styles, from aggressive racing lines to smooth cinematic freestyle.

Compatibility

The iFlight Chimera9 ECO Frame Kit supports multiple mounting options for flight stacks (30.5x30.5mm, 25x25mm, 20x20mm) and VTX units, along with standard motor mounting patterns (16x16mm, 19x19mm). It is designed to accommodate large batteries, offering flexibility in weight distribution and flight tuning. The frame includes an O3 antenna mount and TPU parts for secure component mounting.

FAQ

What is the iFlight Chimera9 ECO Frame Kit best suited for?

The iFlight Chimera9 ECO Frame Kit is best suited for FPV racing and freestyle piloting. Its durable construction and optimized geometry provide excellent agility and resilience required for high-speed maneuvers and demanding flight conditions.

What are the main technical specifications of the Chimera9 ECO frame?

The Chimera9 ECO frame features a 405mm wheelbase, DeadCat geometry, and a lightweight yet strong build with 6mm thick arms and 3mm bottom plate. It supports various flight stack and VTX mounting options.

Can I mount large batteries on the iFlight Chimera9 ECO frame?

Yes, the Chimera9 ECO frame is designed to accommodate large batteries. You have the flexibility to mount them either on the top or bottom of the frame to achieve optimal balance and flight performance tailored to your needs.

Where can I buy the iFlight Chimera9 ECO Frame Kit with fast delivery?

You can buy the iFlight Chimera9 ECO Frame Kit at HTDRONE. We are based in Poland and offer fast delivery within Poland and reliable worldwide shipping via DHL, ensuring you receive your order promptly.

What is the weight of the iFlight Chimera9 ECO Frame Kit?

The iFlight Chimera9 ECO Frame Kit weighs approximately 377g. This weight is optimized to balance durability and agility, contributing to the drone's overall flight performance.
