Introduction

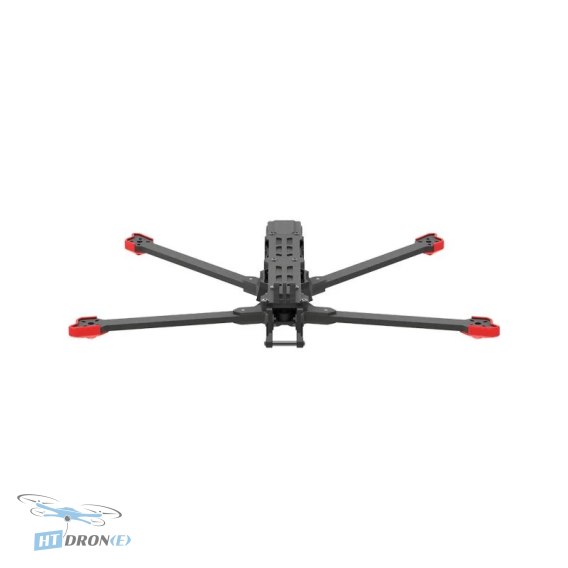

The iFlight Chimera9 FPV LR Frame Kit is a high-performance 9-inch frame specifically designed for FPV pilots focused on long-range flights and cinematic aerial videography. It addresses the need for stability, extended flight times, and robust mounting for advanced digital FPV systems like the DJI O3 Air Unit, solving the problem of frame instability and vibration during demanding long-range missions.

Key Advantages

• Optimized for Long-Range Cinematic Flights: Delivers maximum stability and flight time for professional aerial footage.
• Super-Stiff Carbon Fiber Construction: Minimizes resonance for cleaner video and improved flight control.
• Dedicated DJI O3 Air Unit Integration: Features a custom heatsink and side panels for optimal cooling and fit.
• Enhanced Camera Mounting: New mount design with TPU dampening for a wider camera field of view and reduced vibrations.
• Robust 9-inch Propeller Support: Designed for 9-inch propellers and recommended 2809 motors for maximum control.
• Durable and Protective Design: Latest Chimera9 frame upgrades ensure maximum protection for your components.
• Versatile VTX Antenna Mounting: Includes a new dual 5.8G VTX antenna mount with TPU protection.
• Improved Battery Management: Comes with non-slip battery pads and securing straps for a stable power source.

Technical Specifications

• Product Name: Chimera9 Frame Kit

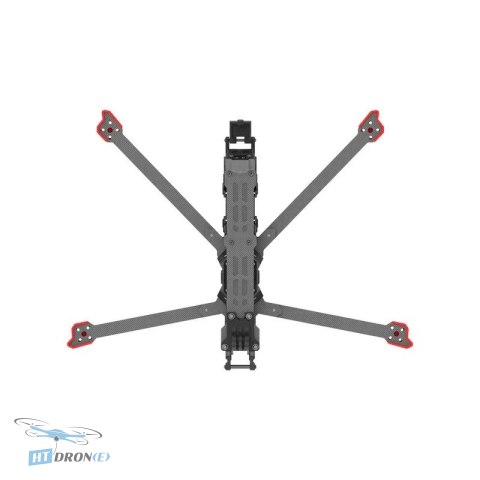

• Geometry: DeadCat (DC)
• Wheelbase: 405mm
• Frame Dimension: L360*W235*H34 mm
• Frame Body Dimension: 34 mm
• Arm Thickness: 6 mm
• Bottom Plate Thickness: 3 mm
• Top Plate Thickness: 2 mm
• Upper Deck Thickness: 3mm
• Motor Mount: 16x16mm / 19*19mm
• VTX Mount: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
• Weight: 385.5 grams
• Included in Package: 1x Chimera9 Frame Kit, 1x O3 Air Unit Heatsink, 1x O3 MIPI Digital Video Cable 215mm, 2x O3 IPEX to RP-SMA Antenna Pigtails, 1x O3 TPU Dual Antenna Mount, 1x Screw Bag, 1x TPU Kit, 2x Anti-slip Battery Pad, 2x Battery Straps (20*300mm)

Applications

This frame is ideal for FPV long-range flying, cinematic videography, professional aerial photography, and exploration missions. Its design prioritizes stable flight and high-quality video capture for demanding applications.

Compatibility

Designed for seamless integration with the DJI O3 Air Unit. Supports a wide range of VTX mounting standards (30.5x30.5mm, 25x25mm, 20x20mm) and motor mounting patterns (16x16mm, 19x19mm). Includes necessary cables and mounts for the O3 Air Unit.

FAQ

What is the iFlight Chimera9 FPV LR Frame Kit designed for?

The iFlight Chimera9 FPV LR Frame Kit is specifically engineered for long-range FPV flights and cinematic aerial videography, prioritizing stability and extended flight times.

What digital FPV system is this frame compatible with?

This frame is designed for seamless integration with the DJI O3 Air Unit, featuring a dedicated heatsink and optimized mounting.

What are the main advantages of the Chimera9 FPV LR frame?

Key advantages include its super-stiff carbon fiber construction for minimal resonance, enhanced camera mounting for a wider FOV, and robust design for maximum component protection during long-range missions.

What is the wheelbase and main material of the Chimera9 frame?

The Chimera9 FPV LR frame has a wheelbase of 405mm and is constructed from high-quality, super-stiff carbon fiber for maximum durability and rigidity.
