IFlight Helion 3110 900KV FPV Drone Motor

Introduction

The iFlight Helion 3110 900KV is a high-performance FPV drone motor designed to deliver superior power and efficiency for your custom builds. Whether you're assembling a racing drone, a freestyle quadcopter, or a professional UAV, this motor offers the robustness and responsiveness needed for challenging flights. Its advanced design ensures smooth operation and durability, making it a top choice for serious FPV enthusiasts.

Key Advantages

• Exceptional 900KV rating for optimal balance of speed and torque.
• Robust Unibell design for enhanced durability and smooth rotation.
• High-quality NSK bearings ensure longevity and reduced friction.
• N52H curved magnets provide powerful magnetic flux for increased efficiency.
• Single copper winding for reliable performance and heat dissipation.
• Designed for demanding FPV and UAV applications.
• Includes all necessary mounting hardware and M5 flange nut for easy installation.
• Powerful performance with a maximum output of 2143.8W.

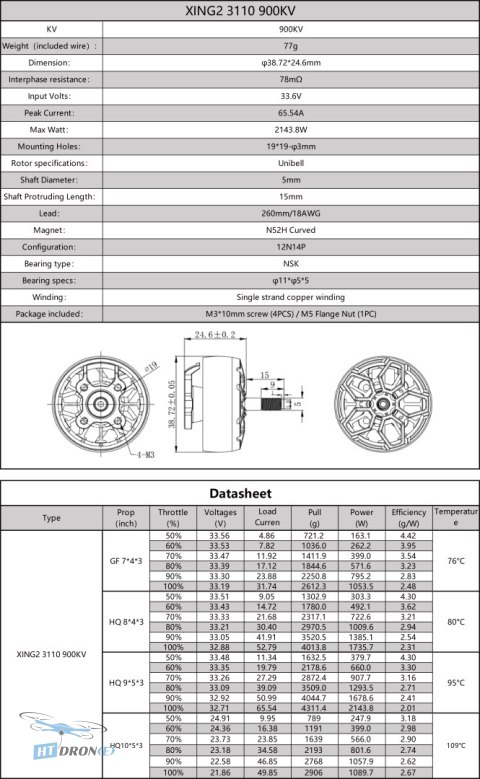

Technical Specifications

• KV: 900KV
• Weight (including wire): 77g
• Dimension: φ38.72 * 24.6 mm
• Inter-phase Resistance: 78 mΩ
• Input Voltage: 33.6V
• Peak Current: 65.54A
• Maximum Power: 2143.8 W
• Mounting Holes: 19*19 φ3mm
• Rotor Specification: Unibell
• Shaft Diameter: 5 mm
• Shaft Extended Length: 15 mm
• Wire: 260mm/18AWG
• Magnet: Curved N52H
• Configuration: 12N14P
• Bearing Type: NSK
• Bearing Specification: φ11 * φ5 * 5
• Winding: Single Copper Winding

Applications

This iFlight Helion motor is ideal for a wide range of FPV applications, including high-performance racing drones, freestyle quadcopters, cinematic FPV setups, and professional UAV platforms. Its power and efficiency make it suitable for builds requiring significant thrust and responsiveness.

Compatibility

Features standard 19*19mm mounting holes with φ3mm diameter, compatible with most FPV frames. The 5mm diameter shaft and 15mm extended length allow for a variety of propeller choices. Equipped with a 260mm/18AWG wire for flexible ESC connections.

FAQ

What is the best application for the iFlight Helion 3110 900KV motor?

The iFlight Helion 3110 900KV motor is best suited for high-performance FPV applications, including racing drones and freestyle quadcopters. Its power and efficiency make it ideal for builds requiring excellent thrust and responsiveness during aggressive maneuvers.

What are the key technical specifications of the iFlight Helion 3110 900KV motor?

This motor features a 900KV rating, a robust Unibell design, N52H curved magnets, and NSK bearings for durability. It operates at up to 33.6V, can handle a peak current of 65.54A, and delivers a maximum power of 2143.8W. The mounting pattern is 19x19mm with a 5mm shaft diameter.

What is included in the package for the iFlight Helion 3110 900KV motor?

The package includes one iFlight Helion 3110 900KV motor, four M3x10 screws for mounting, and one M5 flange nut. Everything needed for basic installation is provided.

Where can I buy the iFlight Helion 3110 900KV motor with fast delivery?

You can buy the iFlight Helion 3110 900KV motor at HTDRONE. We offer fast shipping within Poland and reliable international delivery via DHL. Check our store for the best deals and order your high-performance FPV motor today!

Is the iFlight Helion 3110 900KV motor compatible with standard FPV frames?

Yes, the motor features standard 19x19mm mounting holes with φ3mm diameter, ensuring compatibility with most FPV frames. The 5mm shaft and 260mm wire length also provide flexibility for various setups.
