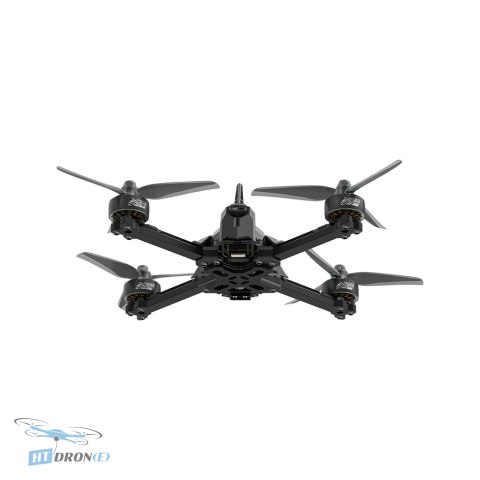

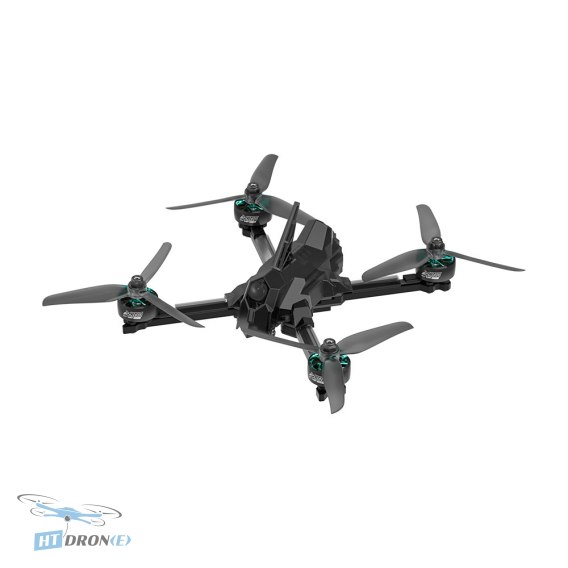

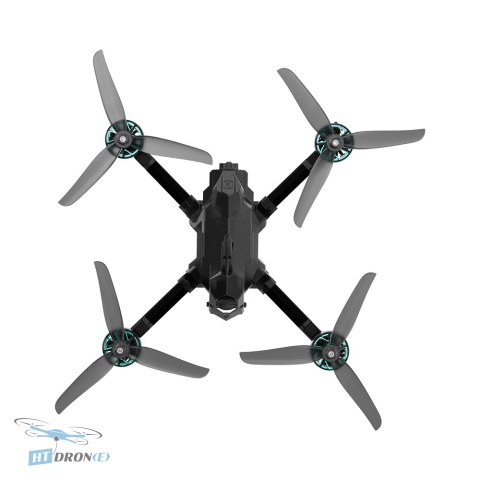

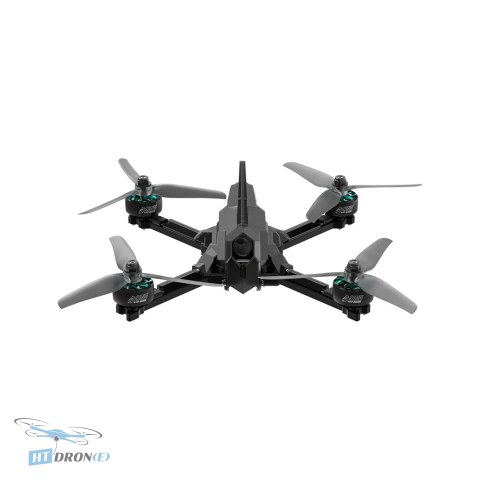

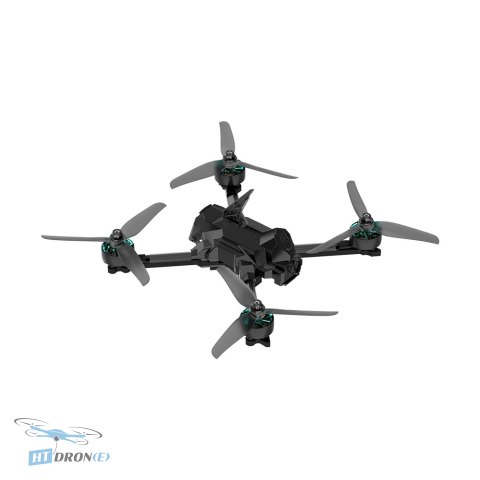

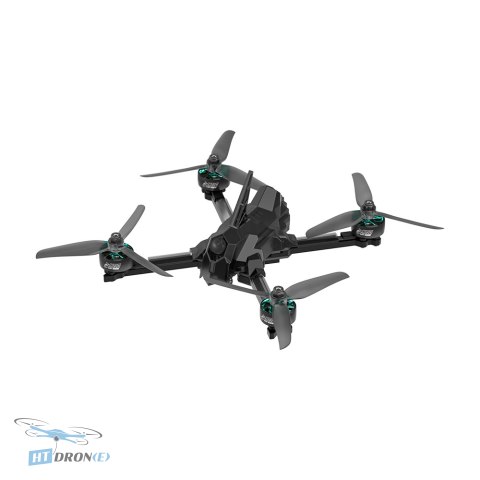

IFlight Mach R5 Sport Analog 6S BNF (TBS) FPV Racing Drone

Introduction

The iFlight Mach R5 Sport Analog 6S BNF (TBS) is a high-performance FPV drone designed for racing and dynamic flight. This 5-inch quadcopter combines a lightweight, compact build with robust features, making it an excellent choice for both experienced pilots and those looking to upgrade. Its advanced design prioritizes ease of maintenance, durability, and aerodynamic efficiency for superior flight performance.

Key advantages

• Lightweight and Compact: Weighing only 302g, it offers exceptional agility without compromising on performance.
• Innovative Quick-Release Aero Sell: Features a unique canopy with a quick-release buckle for fast and easy maintenance, plus protection against dirt and moisture.
• Secure Battery Plug: Prevents power cable interference with propellers, ensuring safer operation.
• Front-Mounted Receiver Socket: Simplifies receiver replacement and integration.
• Customizable DIY Space: Standard mounting holes (20*20) and antenna mounts allow for personalization and compatibility with various VTX systems and antennas.
• Durable Construction: Features a carbon fiber TPU canopy for enhanced protection.
• High-Performance Components: Equipped with BLITZ Mini F722 FC, BLITZ E55R ESC, BLITZ Force VTX, and R5 2207 motors for reliable power and control.
• Optimized for TBS: Includes TBS Crossfire Nano RX for reliable radio control.

Technical specifications

• Product Name: Mach R5 Sport 6S Analog
• FC: BLITZ Mini F722 Flight Controller
• ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC
• Video Transmitter: BLITZ Force VTX 600mW
• Camera: RaceCam Micro 1200TVL
• Frame: 210 mm wheelbase
• Motor: R5 2207 2050KV Motors
• Propeller: Nazgul R5 V2 Propellers
• Dry Weight: Approx. 295 g (without battery)
• Dimensions (L×W): 148*148*51 mm
• Max Speed: 208 km/h
• Max Takeoff Altitude: 6000 m
• Max Hover Time: Approx. 12 minutes (with 6S 1400mAh, no load)
• Max Wind Resistance: Level 6
• Operating Temperature: -10° to 40° C
• Antennas: Single antenna
• GNSS: Not applicable
• Receiver Option: TBS Crossfire Nano RX
• VTX Power Output: 0-25-200-400-600mW
• VTX Input Voltage: 5V
• VTX Current Draw: ≤pit @80mA, ≤25mw@280mA, ≤100mw@405mA, ≤400mw@485mA, ≤600mw@575mA
• VTX Frequency: 40CH (A-B-E-F-R)
• VTX Antenna Interface: MMCX
• VTX Mounting Hole: 20×20/Φ3mm/25×25/Φ2mm
• VTX Weight: 4g (W/O antenna)
• VTX Dimensions: 29x29mm

Applications

This FPV drone is ideal for competitive FPV racing, freestyle flying, and high-speed aerial maneuvers. Its robust design also makes it suitable for advanced hobbyists and pilots looking for a reliable platform for dynamic aerial videography.

Compatibility

The Mach R5 Sport is compatible with HDZERO systems and other VTXs via standard 20*20 mounting holes. It features an MMCX antenna interface for the VTX and is configured with a TBS Crossfire Nano RX receiver. The frame supports standard mounting holes for various electronic components and accessories.

FAQ

What is the iFlight Mach R5 Sport Analog 6S BNF (TBS)?

The iFlight Mach R5 Sport Analog 6S BNF (TBS) is a 5-inch FPV racing drone designed for high-speed performance and agility. It comes pre-configured with a TBS Crossfire receiver for reliable control and features a lightweight, durable design for competitive flying.

What are the key features of the Mach R5 Sport drone?

Key features include its lightweight 302g build, innovative Quick-Release Aero Sell canopy for easy maintenance, a secure battery plug, front-mounted receiver socket, and customizable DIY space with standard 20*20 mounting holes. It also boasts high-performance components like the BLITZ F722 FC and R5 2207 motors.

What is the maximum flight time for the iFlight Mach R5 Sport?

The iFlight Mach R5 Sport can achieve a maximum hover time of approximately 12 minutes when using a 6S 1400mAh battery without any payload. Actual flight time may vary based on flight style and conditions.

Where can I buy the iFlight Mach R5 Sport Analog 6S BNF (TBS) drone?

You can buy the iFlight Mach R5 Sport Analog 6S BNF (TBS) drone at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

Is the iFlight Mach R5 Sport suitable for beginners?

While it offers great performance, the Mach R5 Sport is geared towards experienced FPV pilots due to its racing focus and high-speed capabilities. Beginners might find it more challenging to handle compared to trainers, but it's an excellent choice for those looking to advance their skills.
