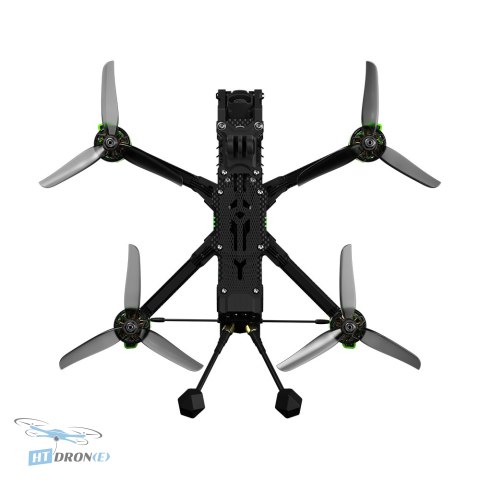

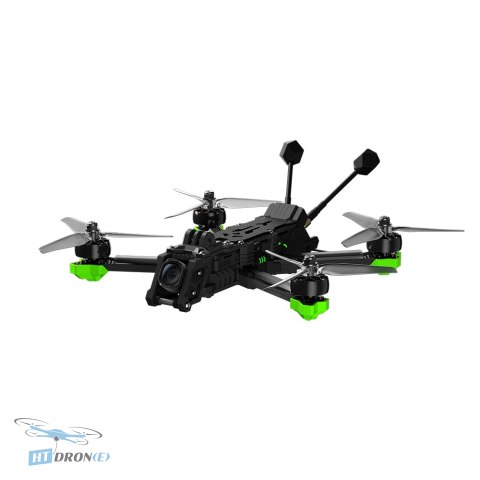

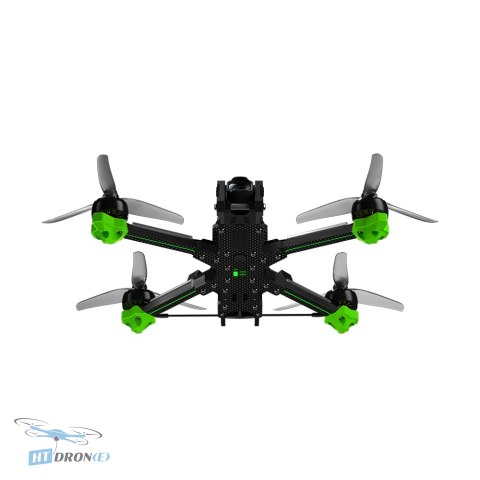

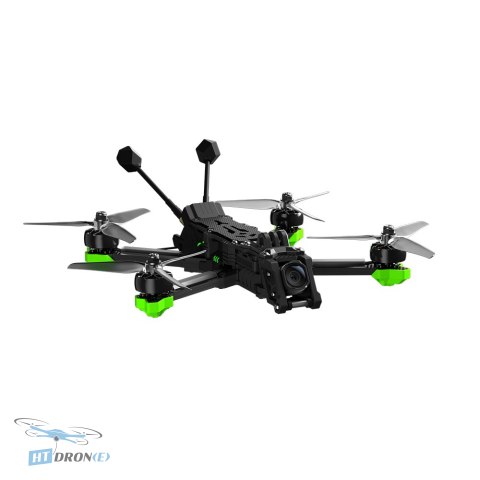

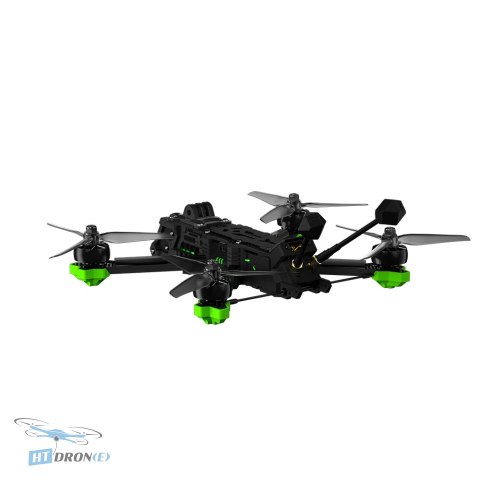

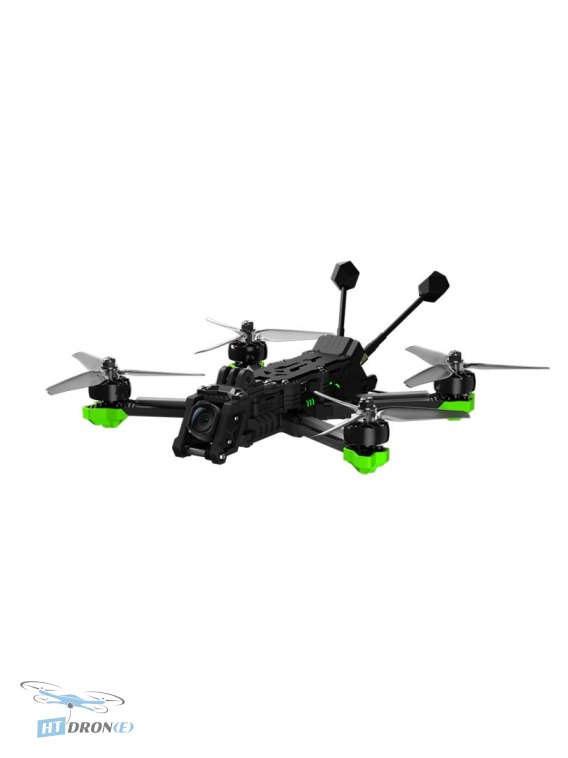

IFlight Nazgul Evoque F5 V3 O4 Pro BNF ELRS 868/915MHz 500mW RX FPV Drone

Introduction

The iFlight Nazgul Evoque F5 V3 O4 Pro BNF is engineered for discerning FPV pilots who require exceptional control range, signal stability, and top-tier video transmission. Equipped with the integrated ELRS 868/915 MHz 500mW receiver and the cutting-edge DJI O4 Air Unit Pro, this drone delivers stunning 4K visuals with an ultra-wide field of view, making it perfect for professional cinematic explorations and dynamic freestyle maneuvers.

Key advantages

• Dual Frame Geometry: Seamlessly switch between DeadCat for cinematic shots free of prop wash and True X for agile freestyle performance.
• Robust Borg Mini Stack: Features a 65A continuous current rating, dual independent BECs, a spark-suppressing filter, and a polymer capacitor for stable power delivery and enhanced reliability.
• Advanced Cooling Design: A fin-shaped cooling channel ensures rapid heat dissipation, maintaining peak performance even under demanding conditions.
• Durable Construction: Fully injection-molded parts offer superior material strength, precise fit, and a refined finish compared to TPU components.
• Flagship Video System: The DJI O4 Air Unit Pro captures breathtaking 4K footage with a 155° FOV, providing sharp, immersive visuals even in low light.
• Extended Range Control: The integrated ELRS 868/915 MHz 500mW receiver ensures extended control range and low latency in challenging environments.
• Integrated ELRS Receiver: Built-in ExpressLRS receiver operating on 868/915MHz with 500mW power for reliable, long-range control.

Technical specifications

• Product Name: Evoque F5 V3 O4 HD BNF
• FC: Borg Mini F7 V1.1 Flight Controller
• ESC: Borg Mini 60A ESC
• Video Transmission: DJI O4 Air Unit Pro
• Frame Geometry: DeadCat (default) / True X (switchable)
• Frame Wheelbase: 236mm (DC default) / 239mm (True X)
• Motor: XING2 2207 1750KV motors
• Propellers: Nazgul F5 propellers
• Weight: 492±5g
• Takeoff Weight: Approx. 736±5g (with 1480mAh battery)
• Dimensions (L x W x H): 230 x 207 x 54 mm (DC-default) / 207 x 199 x 54 mm (True X)
• Adjustable Camera Tilt Angle: 10-45°
• Max Speed: 190 km/h
• Max Takeoff Altitude: 7000 m
• Max Hovering Time: Approx. 12-13 min (no load, with 6S 1480mAh battery)
• Operating Temperature: -10° to 40° C (14° to 104° F)
• Antennas: Dual antennas
• Receiver: ELRS 868/915 MHz 500mW RX (integrated)
• Video Transmission - Product Name: DJI O4 Air Unit Pro
• Video Transmission - Image Sensor: 1/1.3 inch
• Video Transmission - Lens: Field of View: 155°
• Video Transmission - ISO: 100-25600
• Video Transmission - Video Resolution: 1080p/100fps H.265
• Video Transmission - Video Format: MP4, Max Video Bitrate: 130 Mbps
• Video Transmission - Color Mode: Normal mode / D-Log M
• Video Transmission - Stabilization: RockSteady 3.0+; Stabilization disabled (when RockSteady is enabled, shooting angle only supports standard).
• Video Transmission - Live View Quality: 1080P@100fps
• Video Transmission - Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
• Video Transmission - Transmitter Power (EIRP): 5.1 GHz＜23 dBm (CE) / 5.8 GHz＜33 dBm (FCC) / ＜14 dBm (CE) / ＜30 dBm (SRRC)
• Video Transmission - Max Video Transmission Distance: With DJI Goggles 3 / DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
• Video Transmission - Communication Bandwidth: Max 60 MHz
• Video Transmission - Built-in Storage: 4 GB
• Video Transmission - Supported SD Cards: microSD (up to 512 GB)
• Video Transmission - Operating Temperature: -10° to 40° C
• Video Transmission - Weight: Air Unit (incl. camera module): Approx. 32 g
• Video Transmission - Dimensions: Transmitter module: 33.5 x 33.5 x 13 mm (L x W x H)

Applications

This FPV drone is ideal for advanced freestyle piloting, cinematic aerial videography, long-range exploration, and high-speed FPV racing. Its capabilities are suited for professional content creators and serious hobbyists seeking top performance.

Compatibility

Requires compatible FPV goggles (e.g., DJI Goggles 3/DJI Goggles N3) and an ELRS compatible remote controller. Does not include a Hero 7 camera or TPU 3D printed camera mount.

FAQ

What is the primary advantage of the iFlight Nazgul Evoque F5 V3 O4 Pro BNF drone?

The primary advantage is its combination of the DJI O4 Air Unit Pro for exceptional 4K video quality and an integrated ELRS 868/915MHz 500mW receiver for extended control range and reliable signal.

Who is the target audience for the iFlight Nazgul Evoque F5 V3 O4 Pro BNF?

This drone is designed for experienced FPV pilots who engage in advanced freestyle flying, cinematic aerial videography, and long-range exploration, requiring top-tier performance and video capabilities.

Can the frame geometry be changed on the iFlight Nazgul Evoque F5 V3 O4 Pro?

Yes, the drone features a dual frame geometry design, allowing pilots to switch between a DeadCat configuration for unobstructed cinematic shots and a True X configuration for agile freestyle maneuvers.

What are the video transmission capabilities of this drone?

It utilizes the DJI O4 Air Unit Pro, offering 1080p/100fps H.265 video recording, a 155° field of view, and excellent live view quality up to 15 km (FCC) / 8 km (CE) with compatible goggles.

Where can I buy the iFlight Nazgul Evoque F5 V3 O4 Pro BNF and what are the shipping options?

You can buy this FPV drone at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta. International customers can benefit from fast worldwide shipping via DHL.
