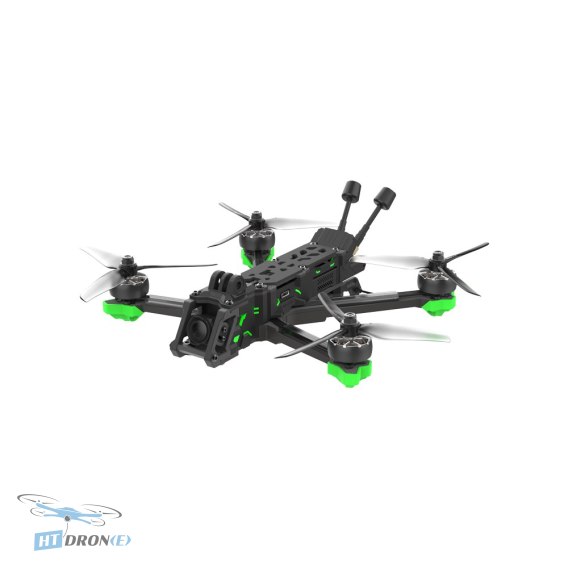

IFlight Nazgul Evoque F5D V2 HD 6S BNF (ELRS 2.4GHz) FPV Drone

Introduction

The iFlight Nazgul Evoque F5D V2 HD is a high-performance, Bind-N-Fly (BNF) FPV drone designed for serious pilots. This drone combines cutting-edge technology with a durable frame, making it ideal for aggressive freestyle maneuvers and competitive racing. It's engineered for pilots who demand reliability, exceptional video quality, and powerful performance in a ready-to-fly package.

Key Advantages

• Smooth and powerful XING2 motors for superior flight control and speed.
• Durable Nazgul frame design offering maximum component protection and efficient cooling.
• Cutting-edge DJI O3 HD Air Unit for low-latency, high-definition video transmission up to 10 km.
• Capture breathtaking footage with 4K stabilized video at a wide 155° field of view.
• Enhanced durability with a protected battery plug featuring an anti-spark filter to prolong XT60 connector life.
• Optimized cooling for the DJI O3 HD Air Unit via a custom CNC heatsink, preventing overheating.
• ELRS 2.4GHz receiver option for reliable, long-range control link.
• Ready-to-fly BNF configuration for quick setup and immediate flight.

Technical Specifications

• Product Name: Evoque F5 V2
• Flight Controller: BLITZ Mini F722 Flight Controller
• ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O3 Air Unit
• Frame Wheelbase: 223 mm (DeadCat)
• Motor: XING2 2207 Motors
• Propeller: Nazgul 5-inch Props
• Weight: 436g (without battery)
• Takeoff Weight: Approx. 693g/695g (with 1400mAh battery)
• Dimensions: 190x136x36±2mm (DeadCat)
• Diagonal Distance: 225 mm
• Max Speed: 190 km/h (Manual mode)
• Max Takeoff Altitude: 5000 m
• Max Hovering Time: Approx. 8 minutes
• Max Flight Distance: 5 km
• Max Wind Resistance: Level 7
• Operating Temperature: -10° to 40° C
• Receiver Option: ELRS 2.4GHz RX
• Video Transmission Product Name: DJI O3 Air Unit
• Video Transmission Weight: Approx. 36.4g
• Video Transmission Bandwidth: Max. 40 MHz
• Video Transmission FOV (Single Screen): 155°
• Video Transmission Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX & TX)
• End-to-End Latency (DJI FPV Goggles V2): <28ms (810p/120fps), <40ms (810p/60fps)</li>
• End-to-End Latency (DJI Goggles 2): <30ms (1080p/100fps), <40ms (1080p/60fps)</li>
• Max Video Transmission Rate: 50 Mbps
• Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
• Video Transmission Operating Temperature: -10º to 40º C
• Power Input: 7.4-26.4 V
• Audio Transmission: N/A

Applications

This FPV drone is perfectly suited for high-speed FPV racing, dynamic freestyle flying, aerial cinematography requiring high-quality video, and general UAV exploration. Its robust build and advanced features make it a versatile choice for both competitive pilots and content creators.

Compatibility

The drone is compatible with DJI FPV Goggles V2 and DJI Goggles 2 for the O3 Air Unit video transmission system. It requires a compatible ELRS 2.4GHz transmitter for control. The battery connector is XT60, supporting 6S LiPo batteries.

FAQ

What is the main application for the iFlight Nazgul Evoque F5D V2 HD drone?

The iFlight Nazgul Evoque F5D V2 HD is primarily designed for aggressive FPV freestyle flying and competitive FPV racing. Its robust construction and high-performance components also make it suitable for aerial cinematography requiring high-quality video.

What video transmission system does this FPV drone use?

This drone features the advanced DJI O3 HD Air Unit, offering low-latency, high-definition video transmission. It supports up to 10km range in FCC mode and provides excellent video quality for immersive FPV experience.

What is the battery requirement for the iFlight Nazgul Evoque F5D V2 HD?

The drone is a 6S model, meaning it requires a 6S LiPo battery. It comes with a protected XT60 battery connector that includes an anti-spark filter to help prolong the connector's lifespan.

Does the iFlight Nazgul Evoque F5D V2 HD come with a receiver?

Yes, this is a Bind-N-Fly (BNF) drone and comes equipped with an ELRS 2.4GHz receiver. You will need a compatible ELRS 2.4GHz transmitter to bind and fly the drone.

Where can I buy the iFlight Nazgul Evoque F5D V2 HD drone with reliable delivery?

You can buy the iFlight Nazgul Evoque F5D V2 HD drone at HTDRONE. We are based in Poland and offer fast shipping within Poland and worldwide delivery via DHL, ensuring you receive your order quickly and reliably.
