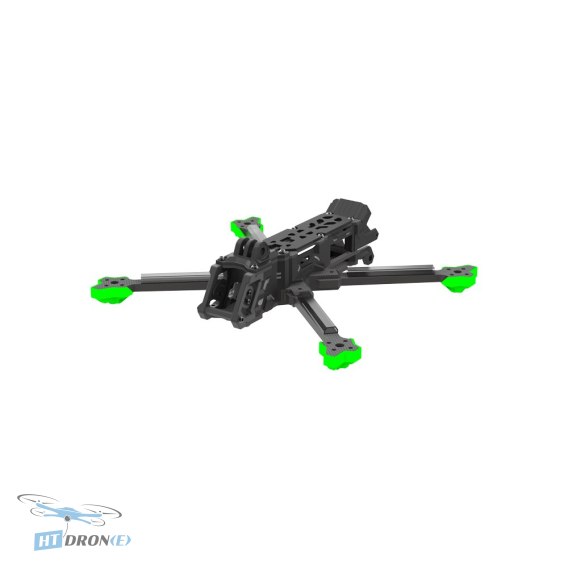

IFlight Nazgul Evoque F6X V2 FPV Drone Frame Kit for DJI O3 HD Air Unit

Introduction

The IFlight Nazgul Evoque F6X V2 Frame Kit is the latest evolution in FPV drone frame design, specifically engineered to seamlessly integrate with the DJI O3 HD Air Unit. This Squashed X frame offers a perfect blend of durability, performance, and advanced features, making it an ideal choice for serious FPV enthusiasts and competitive pilots looking to build a high-performance drone capable of capturing stunning aerial footage with the latest digital FPV systems.

Key Advantages

• Optimized for DJI O3 HD Air Unit: Features a dedicated design for the O3 Air Unit, including a specialized heatsink and new side panels for a perfect fit.
• Enhanced Camera Mount: A new camera mount design provides a wider field of view and includes TPU dampening inserts to reduce vibrations for smoother footage.
• Robust Construction: Built with 6mm thick arms and reinforced plates (3mm bottom, 2mm top, 3mm camera plate) for maximum durability and crash resistance.
• Improved Aerodynamics: The Squashed X configuration offers a stable flight platform suitable for various FPV disciplines.
• Integrated Antenna Mount: Includes a new dual 5.8G VTX antenna mount with TPU protection for secure and reliable signal transmission.
• Comprehensive Kit: Comes with all necessary components, including TPU arm guards, bumpers, battery pads, and straps, for a complete build.
• V2 Updates: The V2 version incorporates crucial updates for the DJI O3 HD Air Unit, ensuring optimal performance and cooling.
• Maximum Protection: Designed with advanced features for maximum protection of your valuable FPV components.

Technical Specifications

• Product Name: Evoque F6 V2 Frame Kit
• Wheelbase: 255 mm (Squashed X)
• Frame Dimensions: L196*W164*H36 mm (Squashed X)
• Frame Body Height: 36 mm
• Arm Thickness: 6mm
• Bottom Plate Thickness: 3mm
• Top Plate Thickness: 2mm
• Camera Plate Thickness: 3mm
• Max Stack Height: 22 mm
• Max VTX Height: 23 mm
• FC Mounting: 20*20 / Φ3 mm
• Motor Mounting: 16*16 / Φ3mm
• VTX Mounting: 25.5*25.5 φ1.6 mm
• Weight: 252g

Applications

This FPV frame kit is primarily designed for building high-performance FPV drones. Its robust construction and compatibility with the DJI O3 Air Unit make it suitable for freestyle FPV flying, cinematic FPV videography, and competitive FPV racing. It provides a solid foundation for drones carrying action cameras like GoPro, enabling stable and high-quality aerial recordings.

Compatibility

The frame is designed with specific mounting patterns for flight controllers (20*20mm), motors (16*16mm), and VTX units (25.5*25.5mm). It includes a dedicated space and mounting solutions for the DJI O3 Air Unit, ensuring seamless integration. Maximum stack height is 22mm and VTX height is 23mm.

FAQ

What is the IFlight Nazgul Evoque F6X V2 Frame Kit designed for?

The IFlight Nazgul Evoque F6X V2 Frame Kit is specifically designed for building high-performance FPV drones, with particular optimization for the DJI O3 HD Air Unit. It's suitable for freestyle, cinematic, and racing applications.

What are the key upgrades in the V2 version of this frame?

The V2 version features updates specifically for the DJI O3 HD Air Unit, including a dedicated heatsink, new camera mount for a wider field of view with TPU dampening, and new side panels that perfectly fit the O3 Air Unit.

What are the main technical specifications of the IFlight Nazgul Evoque F6X V2 frame?

Key specifications include a 255mm Squashed X wheelbase, 6mm thick arms, 3mm bottom plate, 2mm top plate, and support for a 20*20mm FC stack. The total weight is approximately 252g.

Is this frame compatible with other FPV systems besides the DJI O3 HD Air Unit?

While optimized for the DJI O3 HD Air Unit, the frame features standard mounting patterns (20*20mm FC, 16*16mm motor, 25.5*25.5mm VTX) allowing for compatibility with various analog or digital FPV components, provided they fit within the specified dimensions.

Where can I buy the IFlight Nazgul Evoque F6X V2 Frame Kit with reliable delivery?

You can buy the IFlight Nazgul Evoque F6X V2 Frame Kit at HTDRONE. We offer fast and reliable international delivery via DHL, ensuring you receive your order promptly.
