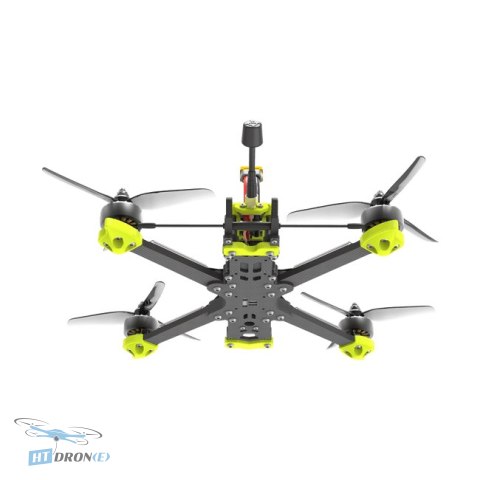

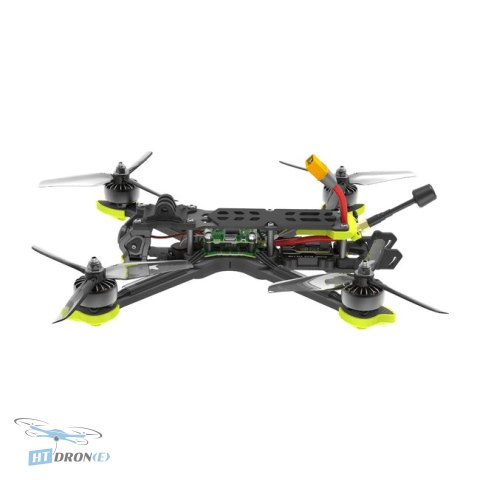

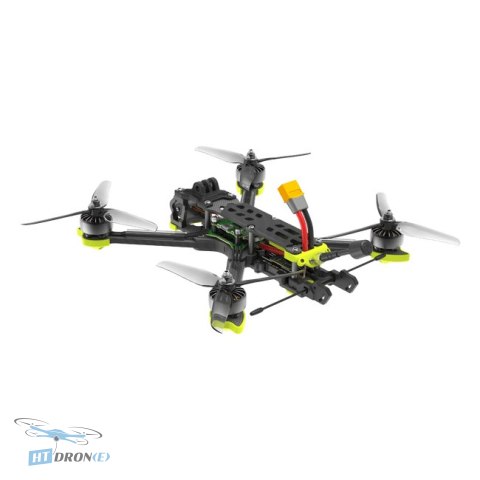

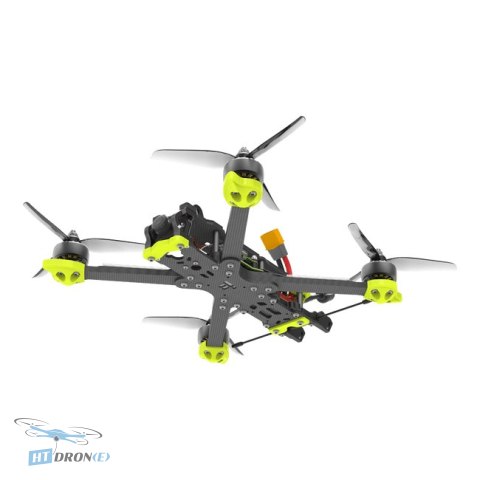

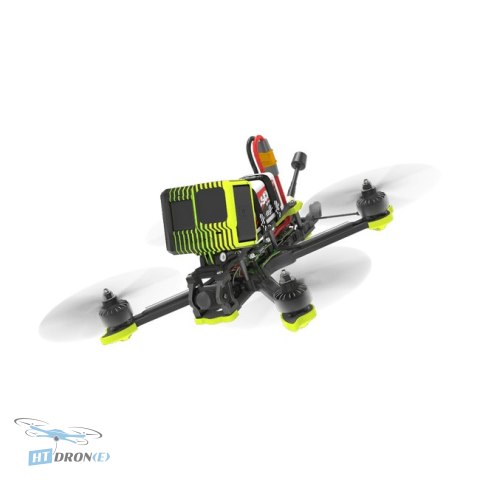

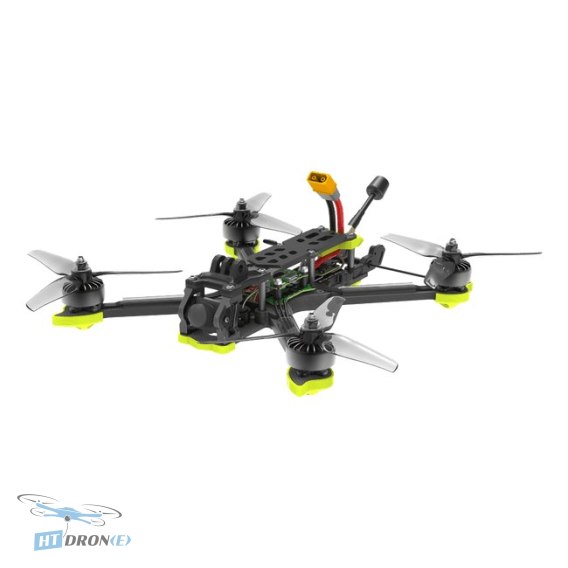

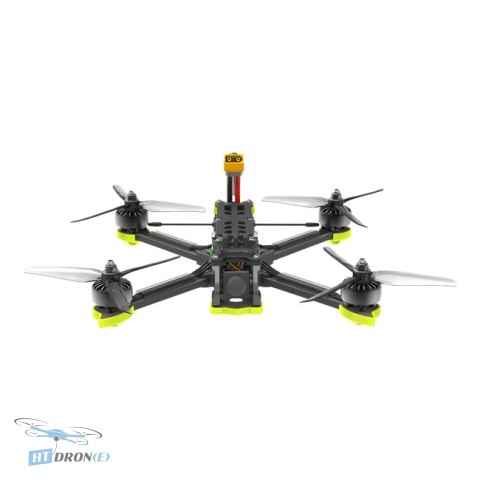

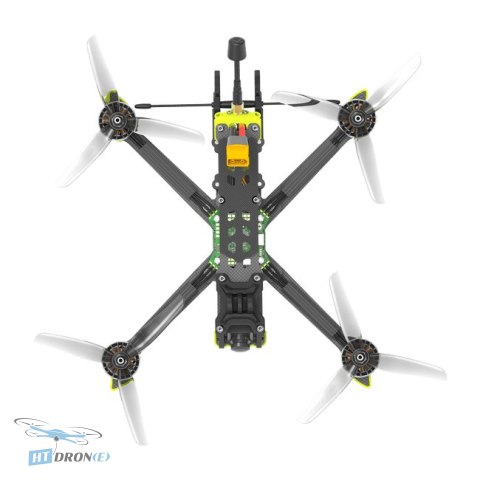

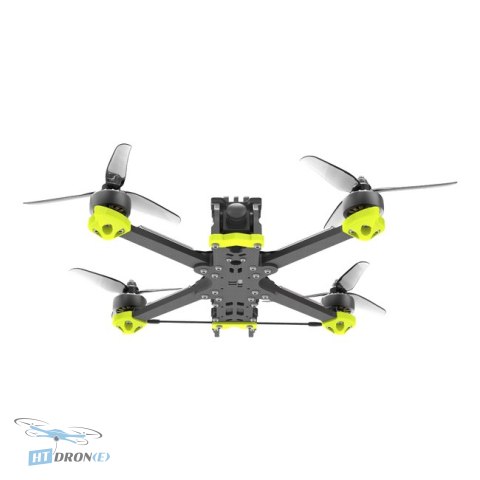

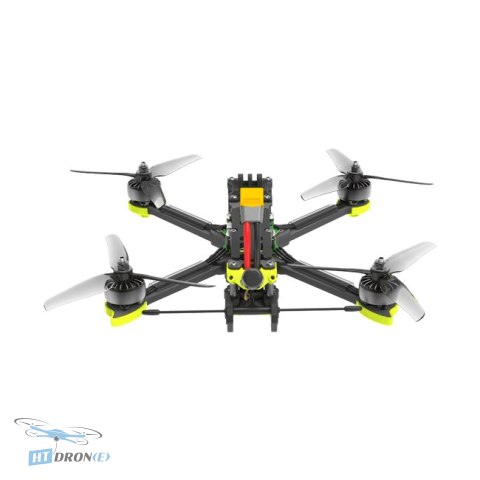

IFlight Nazgul XL5 ECO 6S Analog BNF FPV Drone - True-X Freestyle Ready to Fly

Introduction

The iFlight Nazgul XL5 ECO 6S Analog BNF is a standard 5-inch FPV drone engineered to redefine freestyle performance and exceptional value. This Ready-to-Fly (RTF) quadcopter is built for pilots who demand reliability and power for their freestyle maneuvers and aerial capture needs. It represents a perfect balance of cutting-edge technology and user-friendly design, making it a top choice for enthusiasts seeking an unparalleled FPV experience.

Key Advantages

• Lightweight and Durable Construction: Crafted from high-quality carbon fiber and aluminum, providing a robust yet lightweight frame that ensures excellent flight characteristics and resilience.
• Advanced Flight Control: Equipped with the BLITZ ATF435 Flight Controller and BLITZ E55S 55A ESC, delivering precise control and stable flight performance for demanding freestyle tricks.
• Powerful Video Transmission: Features the BLITZ 1.6W VTX, offering multiple power output options for extended range and clear video feed, ensuring you never miss a moment.
• Enhanced Durability and Protection: Includes an anti-spark filter circuit to protect the XT60 connectors and onboard electronics from voltage spikes and current surges.
• User-Friendly Design: Comes with an integrated buzzer and a receiver mounting bracket, simplifying maintenance, setup, and receiver adjustments.
• Customizable Build: Offers 20x20 and 30.5x30.5 mounting holes, ensuring compatibility with a wide range of popular flight stacks and VTX systems for personalized builds.
• Versatile Mounting Options: Features an aluminum camera mount and an included GoPro mount, allowing for secure installation of FPV cameras and action cameras for high-quality footage.
• High-Performance Motors: Powered by XING-E Pro 2207 1800KV motors and Nazgul F5 propellers for maximum thrust and efficiency.

Technical Specifications

• Product Name: Nazgul XL5 ECO 6S Analog BNF
• Frame Geometry: True-X
• Flight Controller (FC): BLITZ ATF435 Flight Controller
• Electronic Speed Controller (ESC): BLITZ E55S 4-IN-1 ESC (2-6S, 55A)
• Video Transmitter (VTX): BLITZ 1.6W VTX (0-25-400-800-1600mw output power)
• Receiver Option: TBS Crossfire NANO RX
• Frame Wheelbase: 245 mm
• Motor: XING-E Pro 2207 1800KV Motors
• Propeller: Nazgul F5 Propellers
• Weight: 427g (without battery)
• Takeoff Weight: Approx. 652g (with 6S 1400mAh battery)
• Dimensions (L×W×H): 173×173×34±2 mm
• Diagonal Distance: 245 mm
• Max Speed: 190 km/h (Manual Mode)
• Max Takeoff Altitude: 3200 m
• Max Hovering Time: Approx. 7.5 min (no load with 6S 1400mAh battery)
• Max Wind Resistance Level: Level 7
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antenna: Single Antenna
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass (Optional)
• VTX Input Voltage: 7-34V (2-8S)
• VTX Antenna Interface: MMCX
• VTX Mounting Hole: 30.5×30.5 / Φ3mm
• VTX Weight: 18.9g (without antenna)
• VTX Dimensions: 38.5×38.5mm

Applications

This FPV drone is ideally suited for professional freestyle FPV piloting, advanced aerial cinematography, competitive FPV racing, and dynamic aerial video production. Its robust design and high performance also make it suitable for advanced hobbyists looking to push the limits of FPV flight.

Compatibility

The Nazgul XL5 ECO features standard mounting patterns (20x20 and 30.5x30.5) for various flight controllers and VTX systems. It is designed to work with 6S LiPo batteries and is compatible with TBS Crossfire receivers. The included aluminum camera mount ensures compatibility with most FPV cameras.

FAQ

What is the iFlight Nazgul XL5 ECO 6S Analog BNF FPV Drone best suited for?

The iFlight Nazgul XL5 ECO 6S Analog BNF is best suited for professional FPV freestyle piloting, advanced aerial cinematography, and dynamic FPV racing. Its robust construction and high-performance components make it ideal for pilots seeking extreme maneuverability and reliability.

What are the key technical specifications of the Nazgul XL5 ECO?

Key specifications include a 245mm True-X frame, BLITZ ATF435 Flight Controller, BLITZ E55S 55A ESC, BLITZ 1.6W VTX, XING-E Pro 2207 1800KV motors, and it's designed for 6S batteries. It weighs 427g without battery and supports up to 1600mw VTX output power.

Does the iFlight Nazgul XL5 ECO come with a receiver?

Yes, this model comes with the TBS Crossfire NANO RX receiver option, ensuring reliable control for your FPV flights. It's a Bind-N-Fly (BNF) drone, meaning the receiver is pre-installed and configured.

Where can I buy the iFlight Nazgul XL5 ECO 6S Analog BNF FPV Drone?

You can buy the iFlight Nazgul XL5 ECO 6S Analog BNF FPV Drone at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

What makes the Nazgul XL5 ECO stand out in terms of durability?

The drone features a lightweight yet durable frame constructed from carbon fiber and aluminum. It also includes an anti-spark filter circuit to protect the XT60 connectors and onboard electronics from voltage spikes, enhancing its overall longevity.
