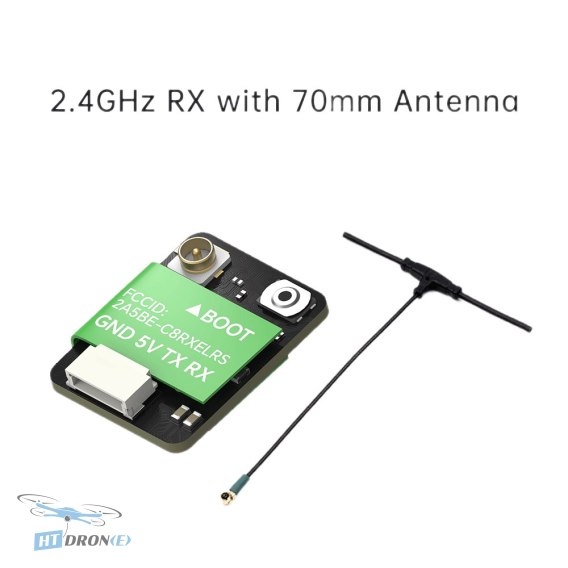

IFlight ELRS 2.4G Nano Receiver with 70mm Mini Antenna - Enhanced FPV Drone Performance

Introduction

The iFlight ELRS 2.4G Nano Receiver with a 70mm Mini Antenna is a cutting-edge component designed to elevate your FPV drone experience. Built with an improved circuit design and a newly modernized temperature-compensated crystal oscillator, this receiver significantly reduces packet loss and maintains high-frequency stability, ensuring a more reliable and responsive connection between your transmitter and drone. It's the perfect choice for serious FPV pilots who demand precision and consistency in their flights.

Key advantages

• Enhanced circuit design for improved reliability.
• Temperature-compensated crystal oscillator ensures lower packet loss and stable high-frequency performance.
• High performance specifically optimized for the 2.4GHz frequency band.
• Compact and lightweight design (0.5g) ideal for space-constrained builds.
• Supports the CRSF protocol for seamless integration.
• Includes a 70mm mini antenna for optimal signal reception.
• Designed for maximum performance when paired with iFlight transmitters.
• Fast and reliable delivery available from HTDRONE.

Technical specifications

• Antenna Connector: IPEX
• Antenna Length: 70 mm
• Firmware: ExpressLRS iFlight 2.4GMHz Nano RX
• Frequency Bands: 2.4GHz ISM
• Telemetry Power: 12.3dbm (17mW 2.4G)

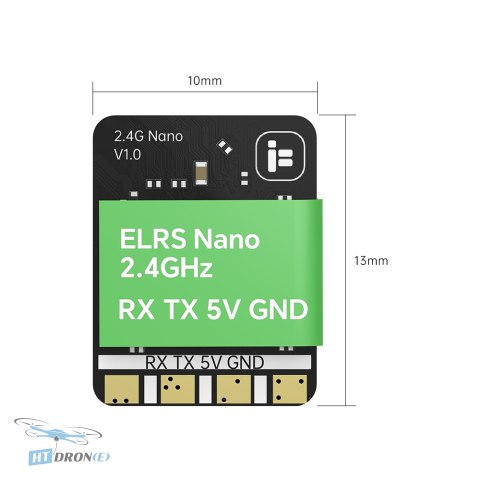

• Dimensions: 10*13mm
• Connector: SUR0.8 Connector
• Interface: RX TX 5V GND
• Input Voltage: 5V
• Protocol: CRSF
• Weight: 0.5g

Applications

This iFlight ELRS Nano Receiver is perfect for a wide range of FPV applications, including drone racing, freestyle flying, cinematic FPV, and general UAV operations where a stable and low-latency control link is crucial. It is designed for pilots who want to push the limits with confidence.

Compatibility

For optimal performance, it is recommended to use these ELRS receivers in conjunction with an iFlight transmitter. Ensure you install the latest firmware and follow the ExpressLRS community for updates and tutorials. The antenna should be installed away from conductive or magnetic materials like carbon fiber, metal, or motors.

FAQ

What makes the iFlight ELRS 2.4G Nano Receiver stand out?

The iFlight ELRS 2.4G Nano Receiver features an enhanced circuit design and a modern temperature-compensated crystal oscillator, which significantly reduces packet loss and ensures high-frequency stability for a more reliable FPV control link.

Is this iFlight receiver compatible with all FPV transmitters?

While it's designed for maximum performance with iFlight transmitters, the ELRS system generally works with compatible ExpressLRS transmitters. Always ensure your firmware is up-to-date and check community resources for specific compatibility information.

What is the best way to install the antenna for this receiver?

To ensure optimal signal reception and performance, the antenna should be installed away from conductive or magnetic elements such as carbon fiber frames, metal parts, or motors. Proper antenna placement is crucial for a stable connection.

Where can I buy the iFlight ELRS 2.4G Nano Receiver with fast delivery?

You can buy the iFlight ELRS 2.4G Nano Receiver with fast delivery at HTDRONE, your specialized FPV and UAV drone parts store based in Poland. We offer worldwide shipping via DHL.

What are the main benefits of using ExpressLRS (ELRS) technology with this receiver?

ExpressLRS technology, used in this receiver, is known for its high performance, low latency, and reliability, especially at the 2.4GHz band. This translates to a more responsive and stable control experience for your FPV drone.
