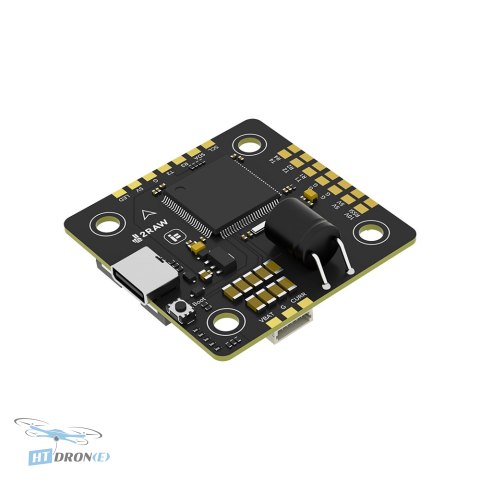

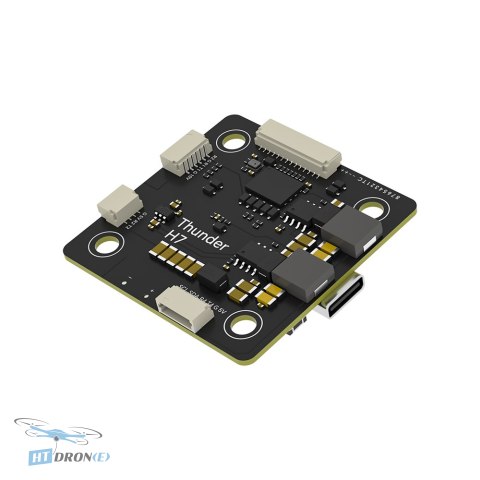

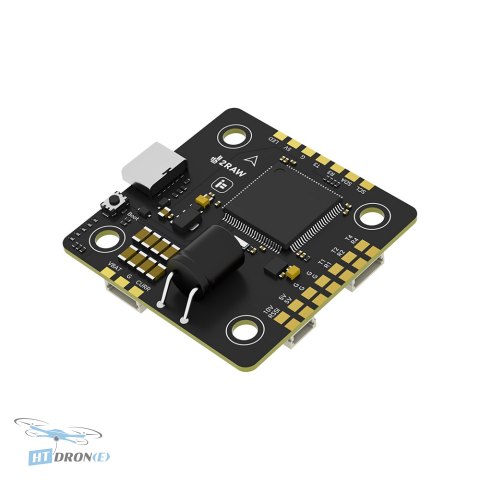

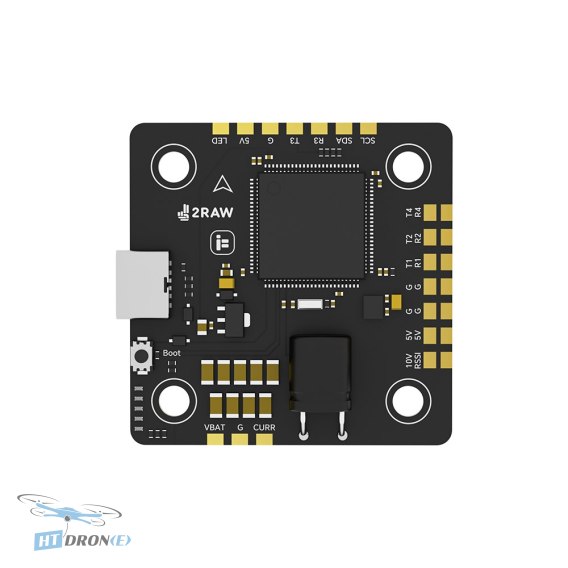

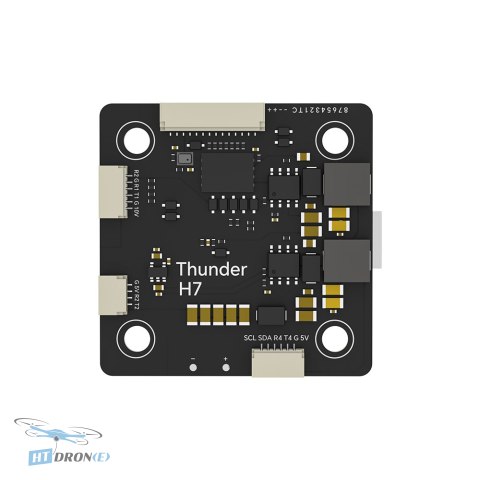

IFlight Thunder H7 Flight Controller | STM32H743, ICM42688P | High Voltage FPV Drone FC

Introduction

The iFlight Thunder H7 is a next-generation flight controller built for demanding pilots and high-voltage applications. As the first FC designed for direct 12S power input, it provides exceptional power handling without compromising performance or durability. Ideal for advanced FPV racers and heavy-lift drone operators, this flight controller redefines capabilities in top-tier drone systems.

Key Advantages

• Direct 12S power support for high-voltage applications.
• Powerful STM32H743 MCU for fast processing and responsiveness.
• High-performance ICM42688P gyroscope for ultra-precise flight control.
• Modular design accommodating both plug-and-play and soldered connections.
• Integrated capacitor filtering ensures clean and stable power delivery.
• Multiple UARTs and ample onboard flash memory for Blackbox logging.
• Designed for demanding FPV racing and heavy-lift drone builds.
• Robust construction suitable for intense flight conditions.

Technical Specifications

• MCU: STM32H743
• Gyroscope: ICM42688P
• Barometer: SPL06-001
• OSD: None
• Blackbox: 512MB onboard flash memory
• UARTs: 6
• Motor Outputs: 4× SH1.0 connector
• I2C: SDA/SCL pads
• LED Controller: Yes
• Buzzer Pad: Yes
• BEC Output: 5V 1.5A / 10V 1.5A (2A peak for 120s)
• Firmware: Betaflight & INAV - 2RAW_THUNDER_H7
• Mounting Pattern: 30.5 × 30.5 mm / φ4 mm
• Dimensions: 42 × 42 mm
• Weight: 14 g
• Capacitor Socket: Built-in 63V 100 μF capacitor filtration

Applications

This flight controller is perfectly suited for high-performance FPV racing drones, professional freestyle quads, and heavy-lift UAV platforms requiring robust power handling and precise control. It excels in demanding aerial cinematography and competitive FPV racing scenarios.

Compatibility

Supports direct 12S power input. Features 6 UARTs for extensive peripheral connectivity, I2C pads for sensors, and standard 30.5x30.5mm mounting for compatibility with most FPV drone frames. Includes BEC outputs for powering your components.

FAQ

What makes the iFlight Thunder H7 ideal for high-voltage applications?

The iFlight Thunder H7 is specifically designed for direct 12S power input, allowing it to handle high voltages without performance loss or durability issues, making it perfect for demanding FPV builds.

What processor and gyroscope does the iFlight Thunder H7 use for optimal performance?

It is equipped with a powerful STM32H743 MCU for fast processing and an ultra-responsive ICM42688P gyroscope, ensuring precise flight control and quick reactions in complex FPV setups.

Can the iFlight Thunder H7 be used for both FPV racing and heavy-lift drones?

Yes, its robust power handling, high-performance components, and precise control capabilities make it an excellent choice for both demanding FPV racing and heavy-lift UAV applications.

Where can I buy the iFlight Thunder H7 flight controller with reliable delivery?

You can order the iFlight Thunder H7 flight controller directly from HTDRONE. We offer fast and reliable international delivery via DHL, ensuring you receive your parts promptly.

What are the mounting dimensions and compatibility features of the iFlight Thunder H7?

The Thunder H7 features a standard 30.5x30.5mm mounting pattern with φ4mm holes, ensuring compatibility with most FPV drone frames. It also includes multiple UARTs and BEC outputs for easy integration of peripherals.
