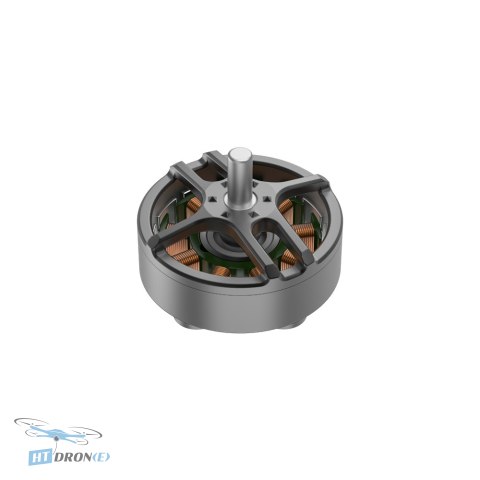

IFlight XING 1002 22000KV FPV Motor for Micro Drones

Introduction

The iFlight XING 1002 22000KV FPV Motor is a top-tier choice for enthusiasts building high-performance micro FPV drones. Designed for unparalleled agility and speed, this motor excels in demanding flight conditions, offering a significant advantage for racing and freestyle pilots. Its advanced construction ensures reliability and consistent performance, making it a must-have component for any serious FPV pilot looking to upgrade their setup. Get the best performance for your tiny FPV machine.

Key Advantages

• Ultra-high KV rating (22000KV) for extreme speed on micro builds.
• Extremely lightweight design at only 2.4g, including the wire.
• Premium NSK bearings ensure smooth operation and extended lifespan.
• Powerful N52H curved magnets provide superior torque and efficiency.
• Robust construction with a segmented bell and 1.5mm shaft for durability.
• Optimized for 4V input voltage, delivering a peak current of 7.8A.
• Standard M1.4 mounting holes for wide compatibility.
• Includes essential mounting screws for easy installation.

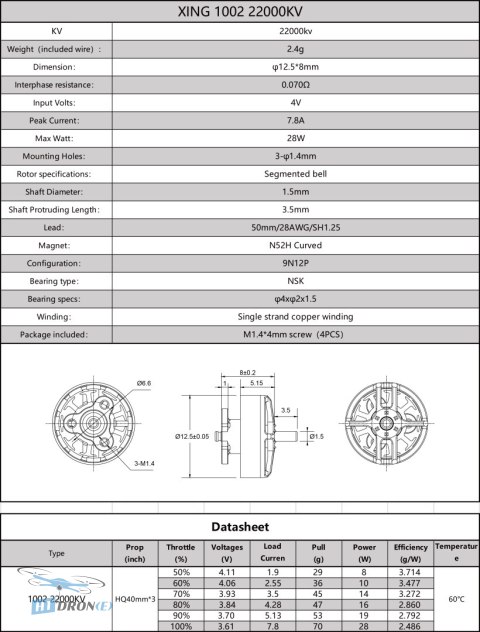

Technical Specifications

• Model: XING 1002 Black Motor
• KV: 22000KV
• Weight (including wire): 2.4g
• Dimensions: φ12.5 * 8 mm
• Inter-phase Resistance: 0.070Ω
• Input Voltage: 4V
• Peak Current: 7.8A
• Max Power: 28W
• Mounting Holes: 3 * 3 φ1.4 mm
• Rotor Specification: Segmented bell
• Shaft Diameter: 1.5 mm
• Shaft Extending Length: 3.5 mm
• Lead: 50mm/28AWG/SH1.25
• Magnet: Curved N52H
• Configuration: 9N12P
• Bearing Type: NSK
• Bearing Specification: φ4 * φ2 * 1.5
• Winding: Single copper wire

Applications

This motor is specifically designed for ultra-lightweight FPV drones, including Tiny Whoops, micro racing quads, and freestyle builds where agility and speed are paramount. It's ideal for indoor flying, small-scale aerial photography, and competitive FPV racing.

Compatibility

Features standard 3x3mm mounting holes with M1.4 screws, compatible with most micro FPV frames. The SH1.25 connector on the 50mm 28AWG lead ensures easy integration with common FPV ESCs.

FAQ

What is the main advantage of the iFlight XING 1002 22000KV motor?

The primary advantage is its extremely high KV rating (22000KV) combined with a very low weight (2.4g), offering exceptional speed and agility for micro FPV drones. It's designed for maximum performance in small, lightweight builds.

What type of FPV drones is the iFlight XING 1002 motor best suited for?

This motor is ideal for micro FPV drones, including Tiny Whoops, 1S or 2S builds, and small racing or freestyle quadcopters where high power-to-weight ratio is crucial. It's perfect for pilots who demand speed and responsiveness.

What are the key technical specifications of the iFlight XING 1002 22000KV motor?

Key specs include a 22000KV rating, 2.4g weight, NSK bearings, N52H magnets, a 1.5mm shaft diameter, and standard 3x3mm mounting holes. It operates efficiently at 4V input voltage with a peak current of 7.8A.

Where can I buy the iFlight XING 1002 22000KV motor with reliable delivery?

You can buy the iFlight XING 1002 22000KV motor at HTDRONE. We offer fast and reliable shipping options, including worldwide delivery via DHL, ensuring you get your FPV parts quickly.

What is included in the package with the iFlight XING 1002 motor?

The package includes one iFlight XING 1002 FPV motor and four M1.4x4mm screws for mounting. This provides you with the essential components needed for installation on your FPV drone.
