IFlight XING 2814 Race 880KV FPV Drone Motor for 9-10 inch Quadcopters

Introduction

The iFlight XING 2814 Race Motor 880KV is engineered for demanding FPV applications, specifically targeting larger quadcopter frames ranging from 9 to 10 inches. This motor is built to provide enhanced performance and power, making it an ideal choice for pilots who require superior thrust and rapid response for dynamic flight. Whether you're engaging in freestyle flying or aggressive aerial maneuvers, the XING 2814 motor is designed to meet your needs.

Key Advantages

• Optimized for 9-10 inch FPV quadcopters, offering increased efficiency.
• High-quality Japanese NSK bearings ensure durability and smooth operation.
• Powerful N52H arc magnets provide impressive thrust and rapid acceleration.
• Electromagnetically matched magnets and stator for optimal power delivery.
• Robust 7075 aluminum bell and base for enhanced durability.
• Secure motor lead protection and a hex grub screw shaft lock for reliability.
• Designed for immediate power output, perfect for steep dives and aggressive maneuvers.
• Available in Segmented Bell and Unibell configurations (randomly shipped).

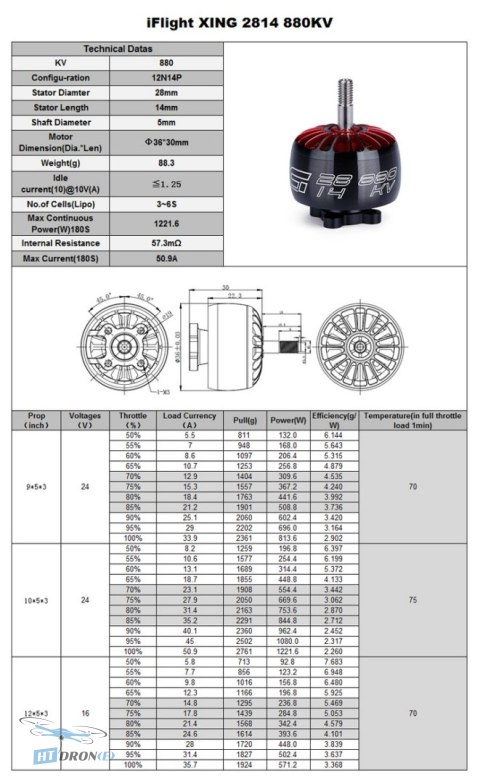

Technical Specifications

• Model: iFlight XING X2814 Motor
• KV Rating: 880KV
• Weight (incl. cable): 88.3g
• Dimensions: φ36 * 30 mm
• Inter-phase Resistance: 57.3 mΩ
• Peak Current: 50.9A
• Max Power: 1221.6W
• Shaft Diameter: 5 mm
• Shaft Extension Length: 14 mm
• Configuration: 12N14P
• Mounting Holes: 19 * 19 φ3 mm
• Bell Type: Segmented Bell / Unibell (random)

Applications

This high-performance motor is ideal for FPV racing drones, freestyle quadcopters, and larger aerial platforms requiring significant power and control. It excels in applications demanding quick throttle response and sustained high thrust, such as cinematic flying, long-range exploration, and aggressive freestyle maneuvers.

Compatibility

The iFlight XING 2814 Race Motor is designed for compatibility with 9-10 inch FPV drone frames. It features standard M3 mounting holes (19x19mm pattern) and a 5mm motor shaft, ensuring broad compatibility with most FPV ESCs and propellers suitable for this size class. It requires an appropriate ESC capable of handling its power and current demands.

FAQ

What is the iFlight XING 2814 Race Motor 880KV best suited for?

The iFlight XING 2814 Race Motor 880KV is specifically designed for larger FPV quadcopter frames, particularly those in the 9-10 inch size range. It offers increased efficiency and power output, making it ideal for aggressive flying styles and maneuvers like steep dives.

What are the key performance features of the XING 2814 880KV motor?

This motor boasts Japanese NSK bearings for durability, N52H arc magnets for high thrust, and an electromagnetically matched stator for smooth power delivery. The 7075 aluminum construction ensures robustness, and its design allows for immediate power response.

What is the mounting pattern for the iFlight XING 2814 Race Motor?

The motor features standard mounting holes with a 19x19mm pattern and M3 size screws. The shaft diameter is 5mm, with a 14mm extension length, ensuring compatibility with a wide range of FPV propellers and ESCs.

Where can I buy the iFlight XING 2814 Race 880KV motor with fast delivery?

You can buy the iFlight XING 2814 Race 880KV motor at HTDRONE. We are based in Poland and offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our store for the best deals on FPV parts.

What is the maximum power output of the XING 2814 880KV motor?

The iFlight XING 2814 880KV motor is capable of delivering a maximum power output of 1221.6W, with a peak current draw of 50.9A. This ensures ample power for demanding FPV applications.
