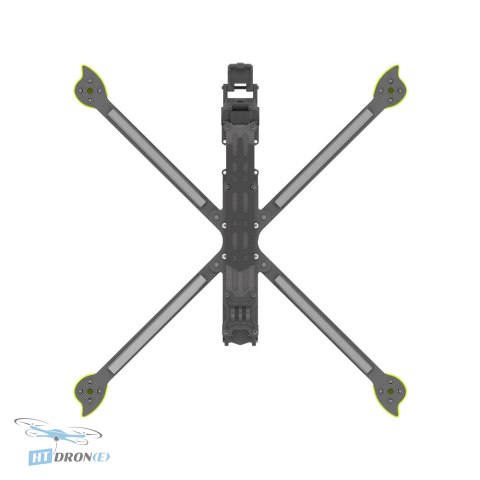

IFlight XL10 V6 10" FPV Drone Carbon Fiber Frame Kit True-X True-X 420mm Wheelbase

Introduction

The iFlight XL10 V6 is a premium 10-inch FPV drone frame kit engineered for high-performance freestyle and long-range flying. Constructed from durable 3K carbon fiber, this frame provides a solid foundation for your custom build, offering excellent stability and resistance to impact. It's ideal for pilots looking to build powerful drones capable of carrying larger payloads or achieving extended flight times.

Key advantages

• Full 3K carbon fiber construction for maximum durability.
• Optimized 10-inch design for popular 10-inch propellers.
• Versatile True-X configuration offers stable flight characteristics.
• Supports both 30.5x30.5mm and 20x20mm electronic stacks.
• Extensive compatibility with digital FPV systems like DJI O3 Air Unit and Caddx Vista.
• Integrated TPU 360° protection and antenna mounts for added security.
• Generous mounting options for VTX and motors to suit various setups.
• Includes essential accessories like a battery non-slip mat and straps for a complete build.

Technical specifications

• Product Name: Nazgul XL10 V6 10 inch Frame Kit
• Wheelbase: 420mm
• Frame Dimension: L297*W297*H35mm
• Arm Thickness: 7mm
• Bottom Plate Thickness: 3mm
• Top Plate Thickness: 3mm
• Max Stack Height: 19mm
• Max VTX Height: 29mm
• Motor Mount: 16x16mm/19x19mm
• VTX Mount: 20*20 Φ2mm / 25.5*25.5 Φ2mm / 30.5*30.5 Φ3mm
• Weight: 345±5 grams

Applications

This frame is perfectly suited for building powerful long-range FPV drones, cinematic FPV rigs, and heavy-lift platforms. Its robust design also makes it suitable for freestyle flying where durability is key. It's an excellent choice for pilots integrating high-definition digital video transmission systems.

Compatibility

Compatible with DJI O3 Air Unit, Caddx Vista HD System, and BLITZ Whoop 1.6W VTX. Supports 30.5x30.5mm and 20x20mm mounting patterns for flight controllers and ESC stacks. Motor mounting options include 16x16mm and 19x19mm.

FAQ

What is the iFlight XL10 V6 frame best suited for?

The iFlight XL10 V6 frame is ideal for building high-performance 10-inch FPV drones. It excels in long-range flying, cinematic FPV applications, and can also serve as a robust platform for freestyle builds due to its durable carbon fiber construction.

What electronic stacks and digital FPV systems are compatible with the iFlight XL10 V6?

This frame supports both 30.5x30.5mm and 20x20mm flight controller and ESC stacks. It is also fully compatible with popular digital FPV systems such as the DJI O3 Air Unit and the Caddx Vista HD System.

What are the main technical specifications of the iFlight XL10 V6 frame?

The iFlight XL10 V6 features a 420mm wheelbase, 7mm thick arms, and 3mm thick top and bottom plates. It weighs approximately 345±5 grams and supports a maximum stack height of 19mm and VTX height of 29mm.

Where can I buy the iFlight XL10 V6 frame with reliable delivery?

You can buy the iFlight XL10 V6 frame at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta. International customers can benefit from worldwide shipping via DHL.

Does the iFlight XL10 V6 frame include any mounting accessories?

Yes, the package includes essential accessories for your build. It comes with a screw bag, a TPU kit for protection and antenna mounting, a non-slip battery mat, and two battery straps.
