IFlight iXC13 X-CLASS 850mm FPV Racing Drone Frame Carbon Fiber

Introduction

The iFlight iXC13 X-CLASS 850mm FPV Racing Drone Frame is a top-tier, professional-grade chassis designed for the most demanding FPV racing and freestyle applications. Constructed from high-quality 3K carbon fiber, this frame provides an exceptional balance of strength, rigidity, and lightweight performance, making it the perfect foundation for building a competitive X-Class drone. Its innovative design addresses common stress points, ensuring longevity and reliability even under extreme flight conditions.

Key advantages

• Constructed from premium 3K carbon fiber for maximum durability and minimal weight.
• Features a Ture X design optimized for stability and maneuverability in high-speed racing.

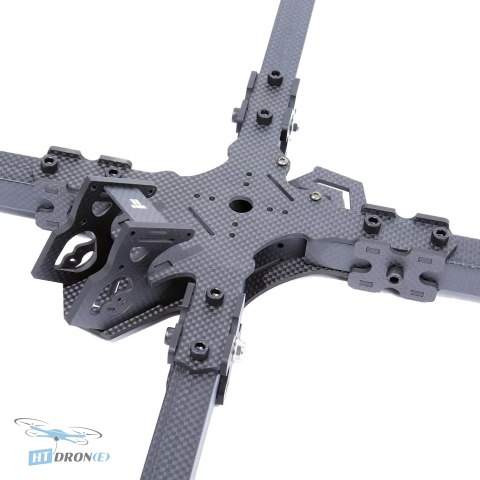

• Includes a GoPro mount and generous internal space for easy integration of all necessary FPV and control electronics.

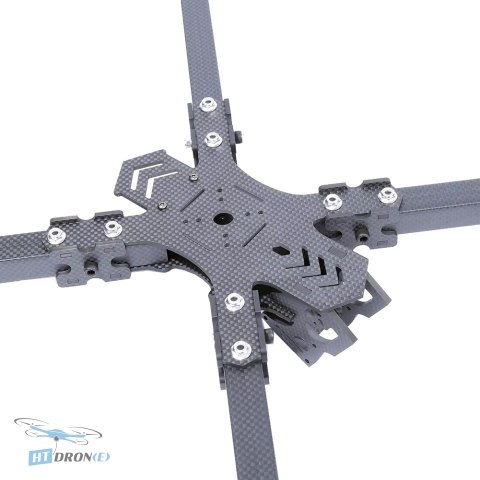

• Innovative multi-directional arm locking system enhances structural integrity between arms and the main body.

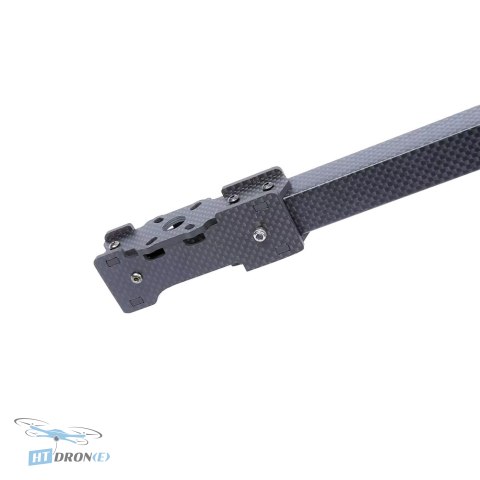

• Unique motor base design ensures rapid installation and robust mounting for powerful motors.
• Designed to accommodate a wide range of FPV components with versatile mounting options for VTX and motors.
• Robust construction ensures resilience against impacts, crucial for competitive FPV racing.

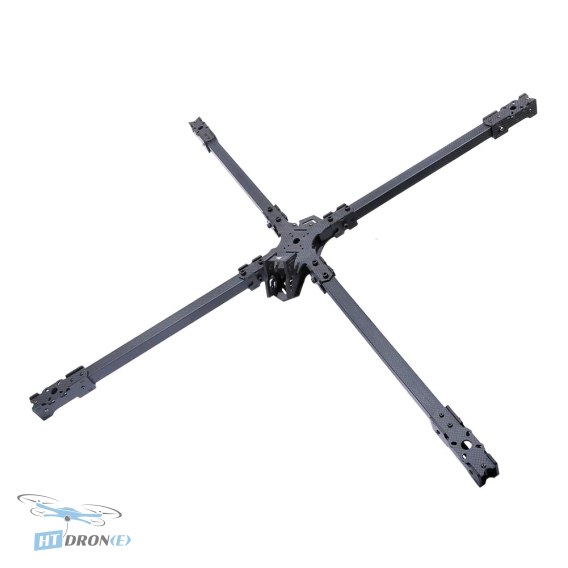

• Optimized for 850mm wheelbase, providing excellent flight characteristics for X-Class drones.

Technical specifications

• Product Name: iXC13 X Class Frame
• Wheelbase: 850mm
• Carbon Fiber Arm Dimension: 20 mm * 20 mm * 375 mm
• Tube: 20 mm (outer diameter), 18 mm (inner diameter)
• Frame Body Dimension: 20 mm
• Single Tube Length: 375 mm
• Arm Thickness: 6 mm
• Bottom Plate Thickness: 3 mm
• Top Plate Thickness: 2 mm

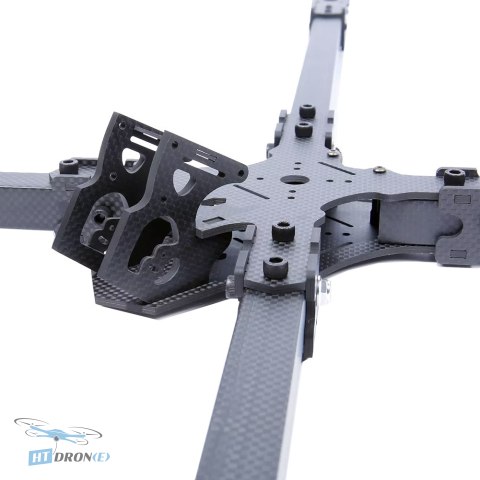

• Camera Plate Thickness: 3 mm
• Motor Mount: 19x19mm - 25*25mm
• VTX Mount: 30.5*30.5mm / 20*20mm
• Weight: 503.9 g (excluding TPU parts)

Applications

This frame is specifically designed for high-performance FPV racing, particularly within the X-CLASS category. It is also suitable for advanced drone builds requiring a large, stable, and durable platform for aerial cinematography, professional aerial surveys, or experimental FPV setups. Its robust construction makes it ideal for competitive environments where durability is paramount.

Compatibility

The iFlight iXC13 frame features versatile mounting options, including motor mounts supporting 19x19mm to 25x25mm patterns and VTX mounts for both 30.5x30.5mm and 20x20mm stacks. This wide compatibility allows for integration with a broad spectrum of FPV racing components and electronics.

FAQ

What is the main application for the iFlight iXC13 X-CLASS 850mm frame?

The iFlight iXC13 X-CLASS 850mm frame is primarily designed for high-performance FPV racing, especially within the X-CLASS category. Its robust construction and large size also make it suitable for advanced drone builds requiring stability and power.

What are the key construction materials and features of this iFlight frame?

This frame is constructed from premium 3K carbon fiber, featuring a Ture X design for optimal flight characteristics. Key advantages include a multi-directional arm locking system for enhanced durability and a unique motor base design for quick assembly.

What is the wheelbase and weight of the iFlight iXC13 frame?

The iFlight iXC13 frame has a substantial wheelbase of 850mm, providing excellent stability. The frame itself weighs approximately 503.9 grams, excluding any additional TPU parts.

What mounting options are available for motors and VTX on the iXC13 frame?

The iXC13 frame offers versatile mounting solutions. It supports motor mounts ranging from 19x19mm to 25x25mm and VTX mounts compatible with both 30.5x30.5mm and 20x20mm standards, ensuring broad component compatibility.

Where can I buy the iFlight iXC13 X-CLASS 850mm frame with reliable delivery?

You can order the iFlight iXC13 X-CLASS 850mm frame from HTDRONE, located in Poland. We offer fast shipping within Poland and reliable international delivery via DHL. Check our store for the best deals and fast shipping options.
