IFlight iXC15 X-CLASS FPV Drone Frame 950mm Wheelbase Carbon Fiber

Introduction

The iFlight iXC15 X-CLASS Frame represents iFlight's pioneering entry into the X-CLASS drone category. Designed for pilots demanding unparalleled performance and durability, this frame is a testament to extensive research and development, refined over six months through multiple iterations. It addresses the need for a stable, reliable, and easily adjustable platform for high-performance FPV applications.

Key Advantages

• Ture X Design: Constructed from pure 3K carbon fiber for maximum strength and minimal weight.

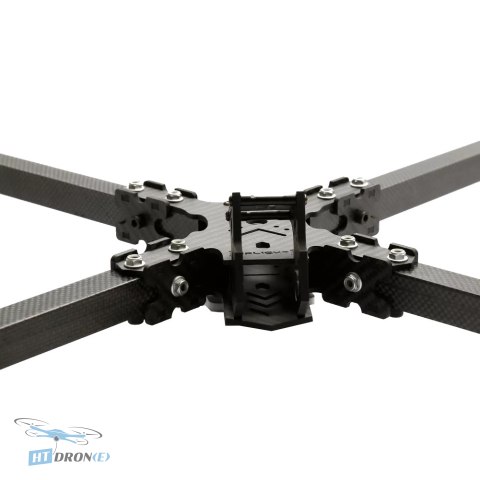

• Robust Arm Mounting: Features a multi-directional arm locking system using M5 'Power-Lock' screws and M5 nuts, ensuring a secure and stable connection between arms and the body.
• Enhanced Durability: Reinforced arm bases and dual cross-bracing provide exceptional stability and reliability.

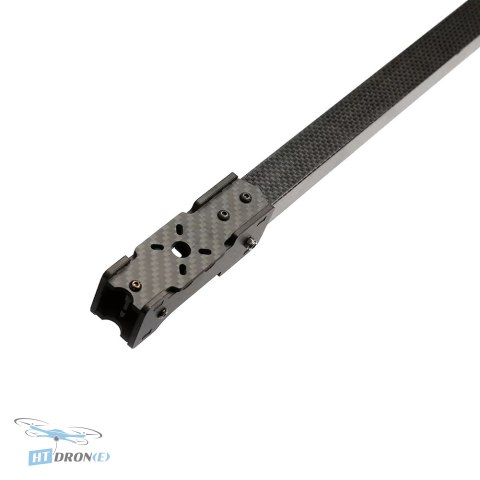

• Versatile Motor Mounting: Universal screw pattern fits most market motors, simplifying installation and reducing front-end weight for improved agility.

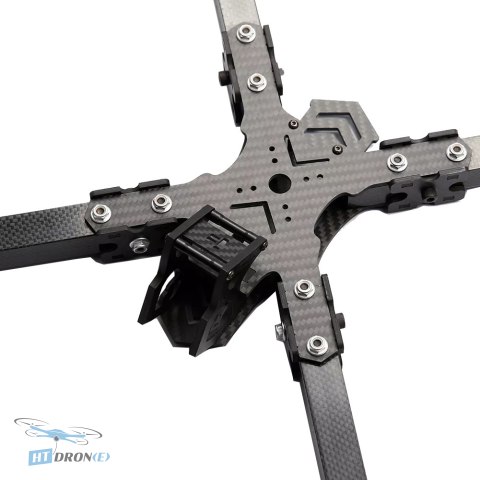

• Ample Installation Space: Generous internal space provided by 3mm thick top and bottom plates accommodates various electronic components.
• Integrated GoPro Mount: Includes a dedicated mount for your GoPro, perfect for capturing stunning aerial footage.
• Ease of Repair: The robust mounting system facilitates quick and straightforward arm replacement or repair on-site.
• Optimized Antenna Mount: Features a 3D printed flexible antenna mount at the rear for secure and easy tail antenna installation.

Technical Specifications

• Product Name: iXC15 X Class Frame

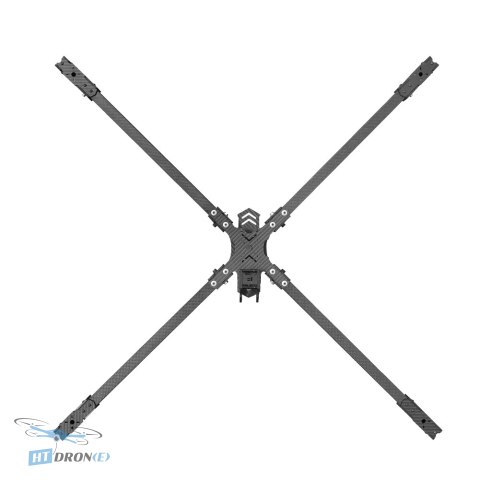

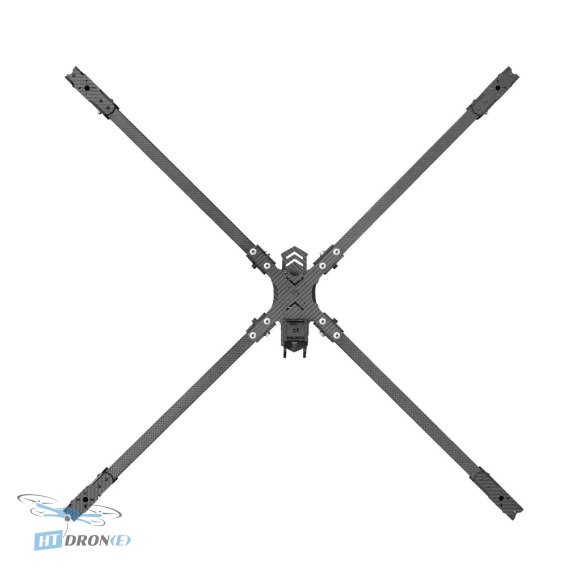

• Wheelbase: 950mm
• Carbon Fiber Arm Tube Dimensions: 20mm * 20mm * 425mm
• Tube Size: 20mm (outer diameter), 18mm (inner diameter)
• Single Tube Length: 375mm
• Arm Thickness: 6mm
• Bottom Plate Thickness: 3mm
• Top Plate Thickness: 2mm
• Camera Plate Thickness: 3mm
• Motor Mount: 19x19mm - 25x25mm
• VTX Mount: 30.5x30.5mm / 20x20mm
• Weight: 643 grams (excluding TPU parts)

Applications

This frame is ideally suited for high-performance FPV racing, freestyle flying, and professional UAV applications where stability, durability, and the capacity to carry heavier payloads are essential. Its robust construction makes it suitable for demanding aerial photography and videography setups.

Compatibility

The motor mount supports 19x19mm to 25x25mm patterns, and the VTX mount accommodates both 30.5x30.5mm and 20x20mm standards, offering broad compatibility with popular FPV components.

FAQ

What is the main application for the iFlight iXC15 X-CLASS FPV Drone Frame?

The iFlight iXC15 X-CLASS Frame is primarily designed for high-performance FPV racing and freestyle flying. Its robust construction and large 950mm wheelbase also make it suitable for professional UAV applications requiring stability and payload capacity.

What are the key benefits of the iXC15 X-CLASS frame's arm mounting design?

The frame utilizes a unique multi-directional arm locking system with M5 'Power-Lock' screws and nuts. This design ensures a very strong and stable connection between the arms and the body, enhancing overall durability and simplifying on-site repairs or replacements.

How does the iFlight iXC15 frame accommodate different motor and VTX sizes?

The iXC15 features a versatile motor mount compatible with 19x19mm to 25x25mm patterns, and a VTX mount supporting both 30.5x30.5mm and 20x20mm standards. This wide compatibility allows for flexible component selection.

What is the weight of the iFlight iXC15 X-CLASS Frame?

The iFlight iXC15 X-CLASS Frame weighs approximately 643 grams, excluding any TPU parts. This weight is optimized for its size and robust construction, balancing durability with flight performance.
