ISDT D2MK2 200W Smart Balance Charger for FPV & RC Batteries

Introduction

The ISDT D2MK2 200W Smart Balance Charger is a high-performance charging solution designed for the demanding needs of FPV drone pilots, RC hobbyists, and modelers. It offers exceptional power, intelligent charging features, and robust build quality, ensuring your batteries are always ready for action. This charger is ideal for users who require efficient, reliable, and versatile battery management.

Key Advantages

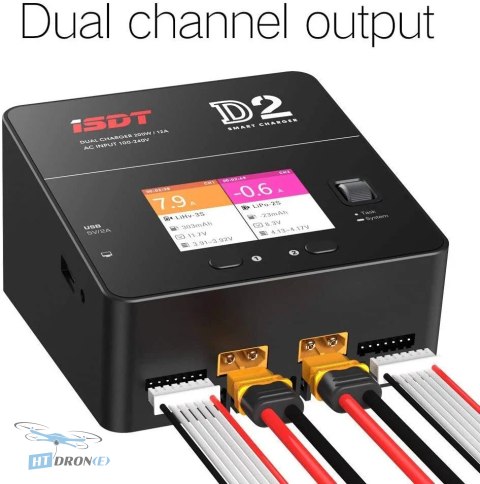

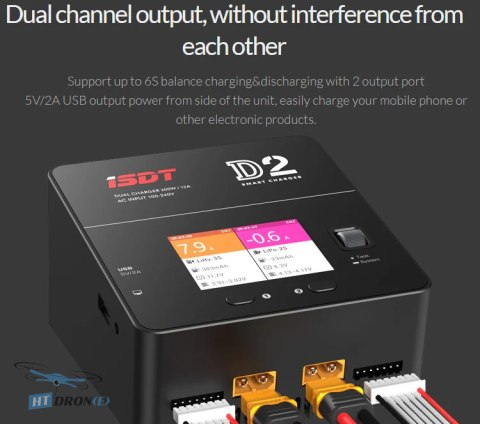

• Dual-Channel Power: Simultaneously charge or discharge batteries on two independent channels with a total output of 200W, ensuring efficient workflow.

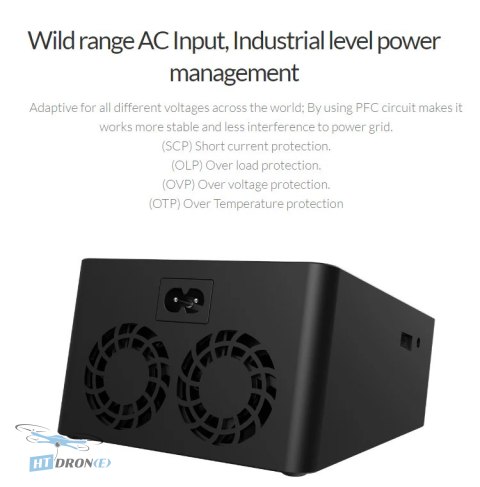

• Versatile Input: Operates on AC 100-240V, making it suitable for use worldwide, and features a DC power supply mode for added flexibility.
• Smart Charging OS: Utilizes a specially designed operating system for intelligent charging processes, optimizing battery life and performance.
• High Power Output: Delivers up to 200W of charging power, with options for parallel task mode to maximize output to a single battery for faster charging.
• Advanced Cooling: Equipped with a dual-fan cooling system to maintain optimal operating temperatures even under heavy load.
• Multi-Language Support: Features a fully localized interface for ease of use across different regions.
• Clear Display: A 2.4-inch IPS LCD screen provides clear visibility of all charging parameters.
• Compact and Efficient: Boasts an excellent power-to-space ratio with optimized energy consumption.

Technical Specifications

• Input Voltage: AC 100-240 V
• Charging Current: 0.1-12.0 A per channel (up to 2 channels)
• Discharge Current: 0.1-1.5 A per channel (up to 2 channels)
• Max Charging Power: 200 W
• Max Discharge Power: 15 W per channel
• Balancing Current: 1.5 A per cell (for both channels)
• Cell Balancing: Supports 2-6S on each channel

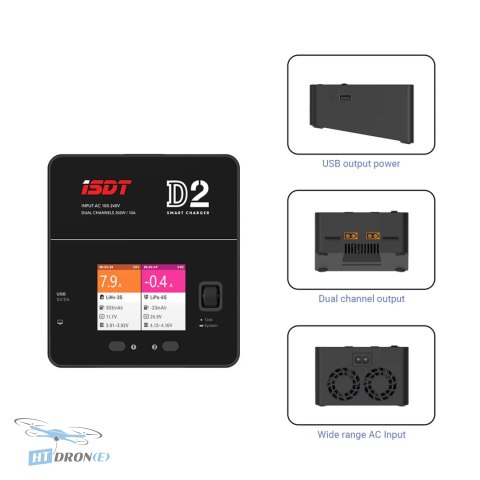

• Connector Type: XT60, USB
• Supported Battery Types:
  • LiFe, LiIon, LiPo, LiHv: 1-6S
  • NiMH/NiCd: 1-16S
  • Lead-Acid (Pb): 1-12S
• Display: 2.4 inch, 320x240 IPS LCD
• Operating Temperature: 0-40°C
• Storage Temperature: -20-60°C
• Dimensions: 120 x 108 x 70 mm
• Weight: 510 g

Applications

This charger is ideal for charging batteries used in FPV racing drones, freestyle drones, RC airplanes, RC cars, and other hobby applications. Its versatility makes it suitable for both beginners and experienced users who need reliable battery management for various battery chemistries and cell counts.

Compatibility

The ISDT D2MK2 supports a wide range of battery chemistries including LiFe, LiIon, LiPo, LiHv (1-6S), NiMH/NiCd (1-16S), and Lead-Acid (1-12S). It features XT60 and USB connectors. The AC input allows for global compatibility, and a DC power supply mode is available.

FAQ

What types of batteries can the ISDT D2MK2 200W charger support?

The ISDT D2MK2 supports a wide range of battery chemistries including LiFe, LiIon, LiPo, LiHv (1-6S), NiMH/NiCd (1-16S), and Lead-Acid (1-12S). This versatility makes it suitable for most RC and FPV applications.

Can the ISDT D2MK2 charge two batteries simultaneously?

Yes, the ISDT D2MK2 features dual channels, allowing you to charge or discharge two batteries simultaneously with a total output of 200W. You can also use parallel task mode to maximize power to a single battery for faster charging.

Does the ISDT D2MK2 have a DC input mode?

Yes, the ISDT D2MK2 can function as a dedicated DC power source when CH1 is selected, providing additional flexibility for your power needs beyond just charging.

Where can I buy the ISDT D2MK2 200W charger with fast delivery?

You can buy the ISDT D2MK2 200W Smart Balance Charger at HTDRONE, our specialized FPV and UAV drone parts store based in Poland. We offer fast international delivery via DHL worldwide.

What are the main benefits of the ISDT D2MK2 charger for FPV pilots?

For FPV pilots, the ISDT D2MK2 offers powerful and fast charging capabilities with its 200W dual-channel output, ensuring your batteries are ready quickly. Its smart charging system optimizes battery health, and the compact design with AC/DC input makes it versatile for field use.
