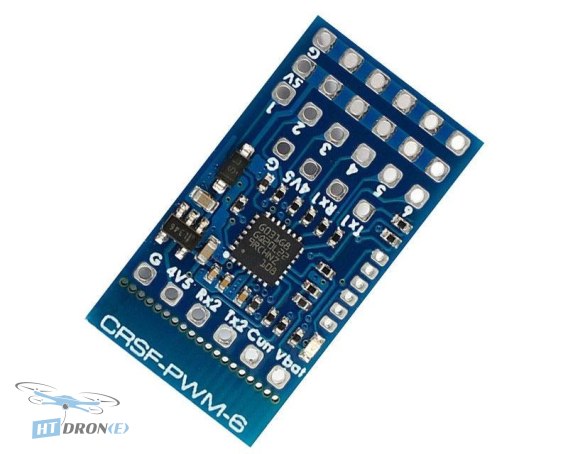

MATEKSYS CRSF-PWM-6 Signal Converter for CRSF Receivers to 6 PWM Outputs

Introduction

The MATEKSYS CRSF-PWM-6 is a compact and efficient signal converter designed specifically for FPV and UAV enthusiasts. It bridges the gap between modern long-range radio receivers using the CRSF protocol (like TBS Crossfire and ExpressLRS) and hardware requiring standard PWM signals, such as servos or flight controllers needing direct servo outputs. This module is perfect for fixed-wing models, custom drone builds, or any project where precise servo control is essential from a CRSF-compatible receiver.

Key Advantages

• Versatile Signal Conversion: Converts CRSF protocol signals into six independent PWM outputs, enabling compatibility with a wide range of servos and actuators.
• Adjustable PWM Frequency: Supports multiple PWM frequencies (50/100/160/330/400 Hz, default 50 Hz) to match the requirements of different servos.
• Dual UART Ports: Includes two UART ports for connecting your receiver, GPS module, or for easy firmware updates.
• Integrated Telemetry: Features battery voltage detection and supports external current sensor input for real-time monitoring of crucial flight data.
• Advanced Features: Automatically sets failsafe values upon initial signal reception and supports firmware upgrades for future enhancements.
• Wide RF Band Support: Compatible with CRSF receivers operating on 868 MHz, 915 MHz, and 2.4 GHz frequency bands.

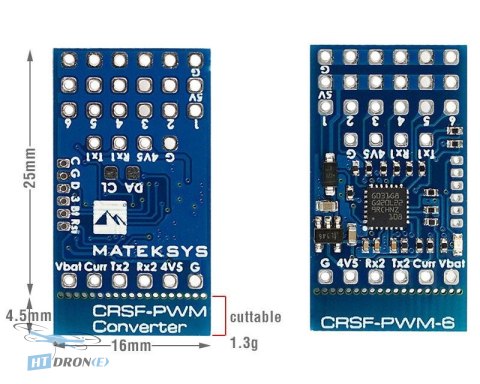

• Lightweight Design: Extremely compact (25 x 16 mm) and lightweight (1.3g), ensuring minimal impact on your drone's overall weight and balance.

Technical Specifications

• Receiver Protocol Support: CRSF (Crossfire, ExpressLRS)
• Supported RF Bands: 868 MHz, 915 MHz, 2.4 GHz
• Input Voltage: 5V
• Input Protocol: CRSF
• Output Protocol: 6x PWM
• PWM Frequency: 50 Hz, 100 Hz, 160 Hz, 330 Hz, 400 Hz (default 50 Hz)
• UART Ports: 2x (Receiver & GPS/Setup)
• Telemetry Data: Current, Voltage, Capacity, GPS Coordinates, GPS Speed, Altitude, Satellite Count
• Battery Voltage Sensor: Max 36V
• Current Sensor Input: 0-3.3V
• Dimensions: 25 x 16 mm
• Weight: 1.3 g

Applications

The MATEKSYS CRSF-PWM-6 is ideal for a variety of applications including FPV racing drones, long-range fixed-wing aircraft, UAVs for aerial photography and inspection, and custom robotics projects requiring multiple servo outputs controlled via a CRSF receiver. It's particularly useful for upgrading older models or integrating advanced control systems.

Compatibility

This module is designed to work exclusively with receivers utilizing the CRSF protocol, such as TBS Crossfire and ExpressLRS modules. It requires a 5V power input. The module provides 6 PWM outputs compatible with standard servos and features two UART ports for receiver and GPS/setup connections.

FAQ

What is the MATEKSYS CRSF-PWM-6 used for?

The MATEKSYS CRSF-PWM-6 is used to convert CRSF protocol signals from receivers like TBS Crossfire or ExpressLRS into six standard PWM outputs. This allows you to control servos and other PWM-compatible devices using a modern, long-range radio system, especially useful for fixed-wing models or custom FPV builds.

Which receivers are compatible with the MATEKSYS CRSF-PWM-6?

This converter is exclusively designed for receivers that support the CRSF (Crossfire) protocol. This includes popular systems like TBS Crossfire and ExpressLRS (ELRS) receivers operating on 868 MHz, 915 MHz, or 2.4 GHz bands.

Can I adjust the PWM output frequency on the MATEKSYS CRSF-PWM-6?

Yes, the MATEKSYS CRSF-PWM-6 offers adjustable PWM output frequencies. You can select from 50 Hz, 100 Hz, 160 Hz, 330 Hz, or 400 Hz (with 50 Hz being the default setting) to best match the requirements of your servos.

Does the MATEKSYS CRSF-PWM-6 support telemetry?

Yes, the module supports telemetry data, including battery voltage and external current sensor readings (0-3.3V input). It can also relay GPS coordinates, speed, altitude, and satellite count if a GPS module is connected via the UART port.
