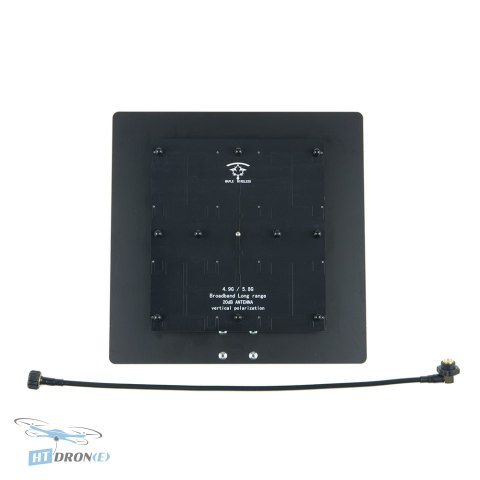

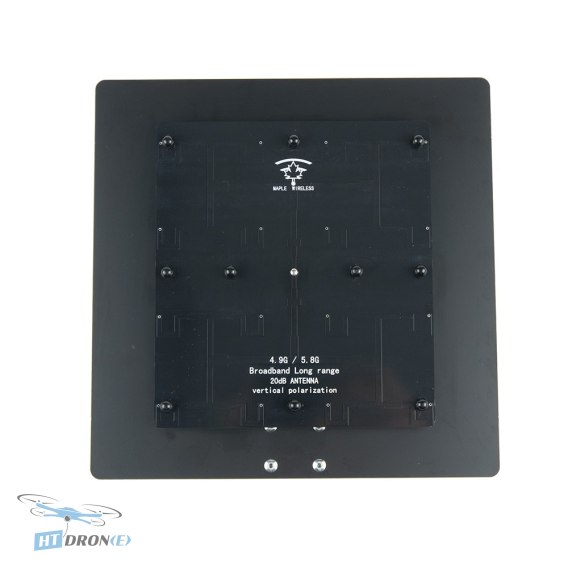

Maple Wireless Directional 4.9-5.8GHz 20dBi VTX Antenna SMA Male

Introduction

The Maple Wireless Directional Antenna is a high-performance VTX antenna engineered for demanding FPV and UAV applications. With its focused beam and significant gain, it excels at providing a stable and robust video transmission link, crucial for long-range flights and complex aerial maneuvers. If you're looking to overcome signal degradation and extend your operational range, this directional antenna is an excellent choice for your setup. Get the best performance for your FPV drone from HTDRONE.

Key Advantages

• Exceptional 20dBi gain for extended range and signal penetration.
• Wide 4.8-6.0 GHz frequency range ensures compatibility with most FPV VTX systems.
• High front-to-back ratio (>25dB) minimizes interference from rear signals.
• Low VSWR (<1.5) ensures efficient power transfer and optimal performance.</li>
• Durable construction with direct ground for electrostatic protection.
• Compact and lightweight design for minimal impact on drone flight characteristics.
• Linear vertical polarization for consistent signal reception.
• SMA Male connector for widespread compatibility with VTX and receivers.

Technical Specifications

• Frequency Range: 4800-6000 MHz
• Impedance: 50 Ω
• VSWR: <1.5
• Gain: 20 dBi
• Half Power Beamwidth: 16° H-plane, 16° E-plane
• Front-to-Back Ratio: >25 dB
• Max Power: 10 W
• Polarization: Linear, Vertical
• Connector: SMA MALE
• Electrostatic Protection: Direct Grounding
• Ambient Temperature: -40°C to +60°C
• Antenna Size: 168 x 168 x 15 mm
• Net Weight: 162g

Applications

This directional antenna is ideal for long-range FPV flying, drone racing, aerial photography, UAV inspections, and any application where a focused, high-gain video transmission is required. It's perfect for pilots who need to maintain a clear video feed over significant distances or in environments with potential interference.

Compatibility

Features a standard SMA Male connector, compatible with a wide range of FPV Video Transmitters (VTX) and receivers. Designed for systems operating within the 4.9-5.8GHz frequency band.

FAQ

What is the primary application for the Maple Wireless Directional 4.9-5.8G 20dB antenna?

This antenna is primarily designed for long-range FPV and UAV applications where a focused and strong video signal is crucial. Its high gain and directional nature help to overcome signal loss over distance and penetrate potential interference.

What is the frequency range and gain of this Maple Wireless antenna?

The antenna operates within the 4.9-5.8 GHz frequency range and offers a significant gain of 20 dBi, ensuring a powerful and stable video transmission.

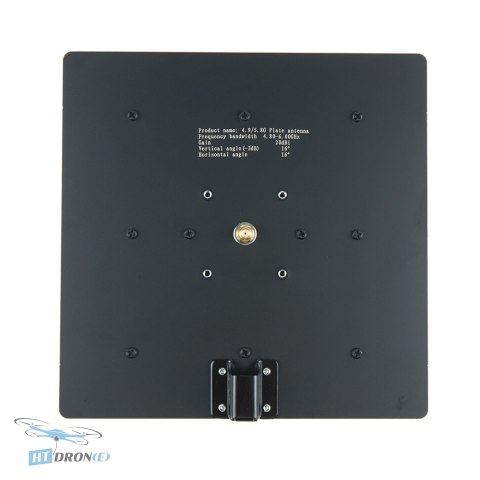

What type of connector does the Maple Wireless Directional Antenna use?

It features a standard SMA Male connector, making it compatible with a wide variety of FPV VTX units and receivers that utilize this common connection type.

How does the directional design benefit FPV pilots?

The directional design focuses the radio signal in a specific direction, providing a stronger, more stable video link to your ground station and reducing interference from signals coming from behind the antenna. This is ideal for long-range flights.
