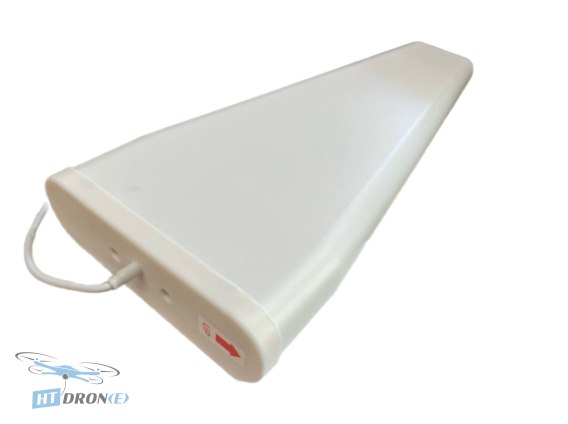

Maple Wireless Log-Periodic SMA-MALE Antenna (700-1020MHz)

Introduction

The Maple Wireless Log-Periodic Antenna is a specialized reception antenna engineered for optimal performance within the 700-1020MHz frequency band. Designed for demanding FPV and UAV applications, it provides superior signal clarity and range, ensuring a stable connection for critical operations. This antenna is the perfect upgrade for pilots seeking enhanced reliability and performance from their drone's receiver system.

Key Advantages

• Exceptional frequency coverage from 700-1020 MHz for versatile use.
• High gain of 9 dBi ensures strong signal reception.
• Low VSWR (<1.5) guarantees efficient power transfer and minimal signal reflection.</li>
• Wide beamwidth (H: 90°, E: 60°) for broad coverage.
• Excellent front-to-back ratio (>20 dB) minimizes interference from unwanted signals.
• Robust construction rated for ambient temperatures from -40°C to +60°C.
• Vertical polarization for optimal signal orientation.
• Direct grounding for electrostatic discharge protection.

Technical Specifications

• Frequency Range: 700-1020 MHz
• Impedance: 50 Ω
• VSWR: <1.5
• Gain: 9 dBi
• Half Power Beamwidth:
  • H-Plane: 90°
  • E-Plane: 60°
• Front-to-Back Ratio: >20 dB
• Maximum Power: 10 W
• Polarization: Vertical
• Input Connector: SMA
• Electrostatic Discharge Protection: Direct Grounding
• Ambient Temperature Range: -40°C to +60°C
• Antenna Size: 510×210×60 mm
• Net Weight: 870 g

Applications

This log-periodic antenna is ideal for various applications including long-range FPV flying, UAV data links, drone telemetry, and signal reception enhancement in challenging RF environments. Its wide frequency range makes it suitable for diverse communication systems requiring reliable signal acquisition.

Compatibility

Features an SMA male connector for broad compatibility with standard FPV and UAV receiver systems. Designed to handle up to 10W of power and operates within a wide temperature range, ensuring reliable performance in various conditions.

FAQ

What is the frequency range of the Maple Wireless Log-Periodic Antenna?

The Maple Wireless Log-Periodic Antenna operates within a wide frequency range of 700-1020 MHz, making it versatile for various communication needs.

What is the gain of this Maple Wireless antenna?

This antenna boasts a high gain of 9 dBi, ensuring strong and clear signal reception for your FPV or UAV system. This helps in maintaining a stable connection over longer distances.

What type of connector does the Maple Wireless Log-Periodic Antenna use?

The antenna features an SMA-Male connector, which is a standard and widely compatible interface for many FPV and UAV receivers.

Where can I buy the Maple Wireless Log-Periodic Antenna with fast delivery?

You can buy the Maple Wireless Log-Periodic Antenna at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your order promptly.

What are the main applications for the Maple Wireless Log-Periodic Antenna?

This antenna is primarily designed for FPV and UAV applications, where reliable and long-range signal reception is crucial. It's also suitable for general drone telemetry and data link enhancement.
