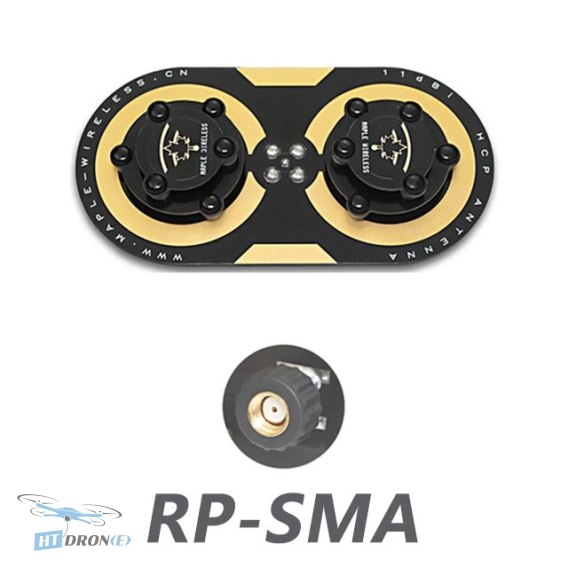

Maple Wireless RP-SMA 11dB Circular Polarization FPV Goggle Antenna

Introduction

The Maple Wireless RP-SMA 11dB Circular Polarization Antenna is a high-performance component designed to significantly enhance your FPV drone's signal reception and transmission capabilities. Ideal for demanding applications like FPV racing and professional aerial photography, this antenna provides a robust solution for achieving greater range and a more stable video link. Its circular polarization minimizes signal degradation from multi-path interference, ensuring a clearer, more reliable feed.

Key advantages

• Superior signal strength with 11dBi gain for extended FPV range.
• Circular polarization minimizes interference for a stable video link.
• Durable and lightweight construction ensures easy installation and reliability.
• Wide compatibility with FPV goggles, receivers, and transmitters using RP-SMA connectors.
• Optimized for high-frequency FPV bands (5500-5800 MHz).
• Low standing wave ratio (<1.5) ensures efficient power transfer.
• Rated for operation in extreme temperatures (-40 to +60 C).

Technical specifications

• Frequency Range (MHz): 5500-5800
• Input Impedance (Q): 50
• Standing Wave Ratio: <1.5
• Gain (dBi): 11
• Half Power Beamwidth: 75° H-plane -- 40° E-plane
• Front-to-Back Ratio (dB): >10
• Power (W): 10
• Polarization Method: Right-hand circular polarization
• Connector: RP-SMA
• Ambient Temperature (C): -40 ~ +60
• Antenna Size (mm): 82*42*24
• Net Weight (g): 19

Applications

This antenna is exceptionally well-suited for FPV drone applications, including high-speed FPV racing, freestyle flying, long-range exploration, and professional aerial photography or videography. It is designed to improve video link stability and range for pilots who demand the best performance from their equipment.

Compatibility

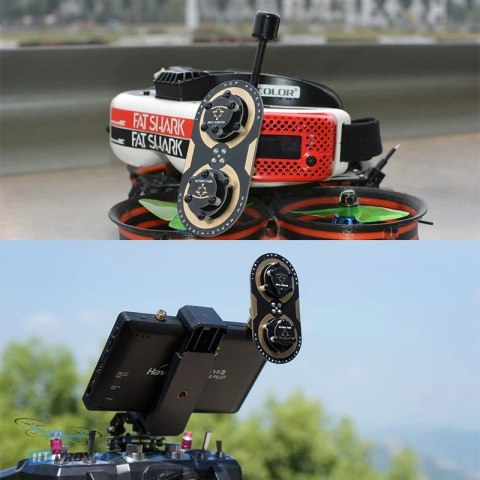

The Maple Wireless antenna features an RP-SMA connector, making it compatible with a wide array of FPV goggles, video receivers, and video transmitters from leading brands such as DJI, Fat Shark, and many others that utilize this standard connector. It supports a power handling capacity of up to 10W and operates within the common 5.8GHz FPV frequency band.

FAQ

What is the main advantage of the Maple Wireless RP-SMA 11dB antenna for FPV?

The main advantage is its high 11dBi gain combined with right-hand circular polarization, which significantly boosts signal range and reduces interference for a clearer, more stable FPV video link, especially crucial for racing and long-range flights.

Which FPV goggles and receivers are compatible with this Maple Wireless antenna?

This antenna is compatible with FPV goggles, receivers, and transmitters that feature an RP-SMA connector. This includes many popular models from brands like Fat Shark, DJI, and others commonly used in the FPV community.

What are the key technical specifications of the Maple Wireless 11dBi antenna?

Key specifications include an 11dBi gain, 5500-5800 MHz frequency range, RP-SMA connector, right-hand circular polarization, a standing wave ratio below 1.5, and a power handling capacity of 10W. It also has a front-to-back ratio greater than 10dB.

Is this antenna suitable for FPV racing drones?

Yes, the high gain and circular polarization make it an excellent choice for FPV racing, where extended range and a stable video feed are critical for performance and avoiding signal loss during high-speed maneuvers.

Where can I buy the Maple Wireless RP-SMA 11dB antenna with reliable delivery?

You can buy the Maple Wireless RP-SMA 11dB antenna at HTDRONE, our specialized FPV and UAV drone parts store based in Poland. We offer fast delivery within Poland and worldwide shipping via DHL for international orders, ensuring you receive your parts quickly.
