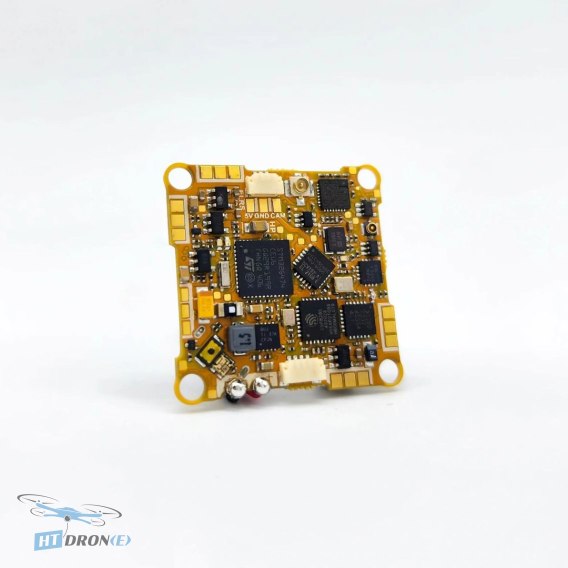

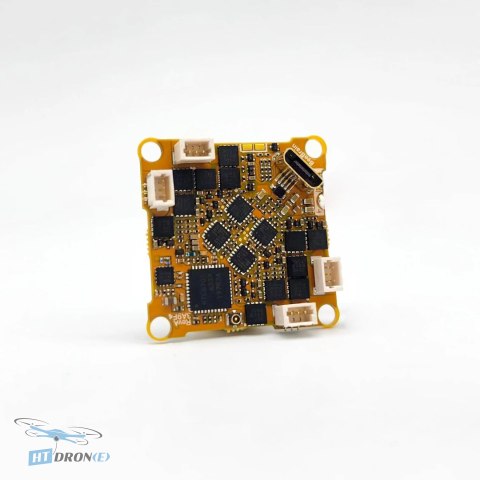

NewBeeDrone BeeBrain BLV5 AIO Flight Controller with ELRS 2.4G for FPV Drones

Introduction

The NewBeeDrone BeeBrain BLV5 AIO Flight Controller with ExpressLRS (ELRS) 2.4G represents the pinnacle of innovation in the BeeBrain series. As the fifth generation of NewBeeDrone's flagship flight controller, the BLV5 delivers enhanced technology for superior control, signal integrity, and durability. Engineered with an STM32G474 MCU and dual 18A ESCs running Bluejay firmware, this flight controller is built for precision and power, making it an ideal choice for serious FPV drone enthusiasts seeking top-tier performance.

Key Advantages

• Advanced STM32G474 MCU for high-speed processing
• 18A dual N-MOS ESC with Bluejay 0.19.2 firmware for smooth motor control
• Integrated ExpressLRS 2.4G diversity receiver for robust signal connection
• Smart-Max VTX Power Control dynamically adjusts VTX output for optimal video stability
• Supports 1S-2S LiPo batteries for versatile build options
• Compact size and lightweight design ideal for small FPV drones
• Durable construction for reliable performance in demanding FPV environments
• Includes necessary antennas and mounting hardware for easy installation

Technical Specifications

• MCU: STM32G474 216MHz
• Gyro: MPU6000
• VTX: 25mW/100mW/Smart-Max(400mW)
• Camera: Caddx Ant Nano 1200TVL
• ESC: Double N-MOS 1 Channel 18A Running Z-H-40 Bluejay 0.19.2 48KHz
• Motor Plug: JST-1.0 3Pin
• Receiver: Integrated TCXO ExpressLRS 2.4GHz Diversity Receiver (Uart Base)
• Flight Controller Weight: 5.8g
• Flight Controller Size: 29x29x7.6mm (Mounting pattern: 25.5x25.5mm)
• Battery Input: 1S-2S
• VTX Power Control: Smart-Max VTX Power Control (25mW, 100mW, 400mW)

Applications

This flight controller is expertly designed for FPV drones, particularly suited for freestyle flying, micro drone builds, and agile racing applications. Its robust features also make it suitable for advanced hobbyist UAV projects requiring precise control and reliable video transmission.

Compatibility

The BeeBrain BLV5 is compatible with 1S and 2S LiPo batteries. It utilizes a JST-1.0 3-pin motor connector and features a UART-based ExpressLRS receiver. It is designed to work seamlessly with the Caddx Ant Nano camera and recommended Flow 0804 14000KV motors for optimal performance.

FAQ

What is the NewBeeDrone BeeBrain BLV5 AIO Flight Controller?

The NewBeeDrone BeeBrain BLV5 AIO is a high-performance flight controller for FPV drones, featuring an integrated ExpressLRS 2.4G receiver and an STM32G474 MCU. It offers advanced features like Smart-Max VTX Power Control for stable video transmission.

What are the key technical specifications of the BeeBrain BLV5?

It boasts an STM32G474 216MHz MCU, MPU6000 gyro, 18A dual N-MOS ESC with Bluejay firmware, and an integrated ExpressLRS 2.4GHz diversity receiver. It supports 1S-2S batteries and has a 25.5x25.5mm mounting pattern.

What is Smart-Max VTX Power Control?

Smart-Max VTX Power Control dynamically adjusts the video transmitter's output power based on real-time temperature monitoring. This prevents overheating and maximizes signal strength, offering switchable power levels of 25mW, 100mW, and up to 400mW when conditions permit.

Who is the BeeBrain BLV5 AIO flight controller for?

This flight controller is ideal for FPV pilots building freestyle or racing drones, especially those looking for a compact, powerful, and reliable solution for 1S or 2S setups. It's also great for advanced hobbyists seeking cutting-edge technology.
