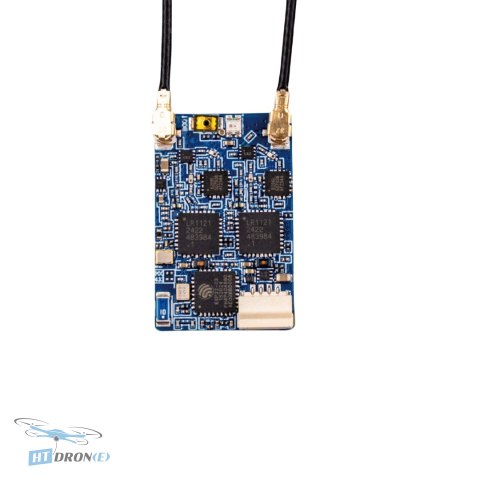

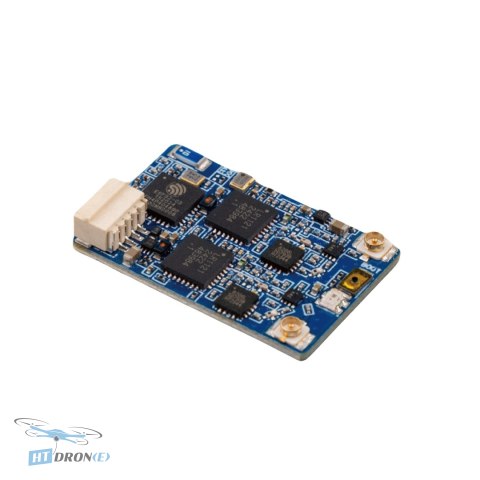

BAYCK C3 Dual Band 868/915/2.4G Receiver with 100mW Backhaul for ExpressLRS FPV Drones

Introduction

The BAYCKRC C3 is a cutting-edge dual-band receiver engineered for the discerning ExpressLRS FPV pilot. It delivers unparalleled reliability, extended range, and exceptional flexibility by fusing signals across three frequency bands: 868 MHz, 915 MHz, and 2.4 GHz. This ultralightweight component, weighing just 1.6 grams, is built to meet the rigorous demands of modern FPV flight, from long-range exploration to high-speed racing.

Key advantages

• ExpressLRS System Receiver: Experience advanced long-distance control performance with the latest ExpressLRS protocol.
• Triple Band Support: Seamlessly operates with 868 MHz, 915 MHz, and 2.4 GHz systems, offering unmatched frequency flexibility.
• 100mW Dual Backhaul Power: Ensures a strong, stable signal across all supported frequencies for consistent control.
• 8 Selectable Reception Modes: Choose from Differential, Gemini, and the dual-band GeminiX modes for optimized performance in any scenario.
• Ultra-Compact Design: Features a single-sided PCB layout measuring only 17x26.5mm and weighing a mere 1.6g, ideal for tight builds.
• Temperature-Compensated Crystal Oscillator: Equipped with a KDS 32 MHz TCXO for ultra-stable frequency accuracy.
• High-Performance Processor: Powered by an ESP32-C3 (RISC-V 32-bit, 160 MHz) with 4MB Flash memory for smooth operation.
• Versatile GeminiX Modes: Supports dual-band operation with 868 MHz & 2.4 GHz or 915 MHz & 2.4 GHz for enhanced signal redundancy.

Technical specifications

• Model: BAYCKRC C3 900/2400 Dual Band 100mW Gemini RX
• Protocol: ExpressLRS
• RF Frequencies: 868 MHz / 900 MHz / 2.4 GHz

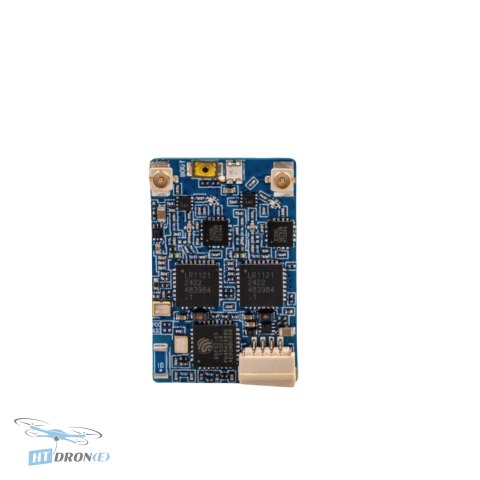

• IC: 2 × LR1121 + ESP32-C3 + TCXO
• TX Power: 2 × 100mW at 868 / 915 / 2400 MHz

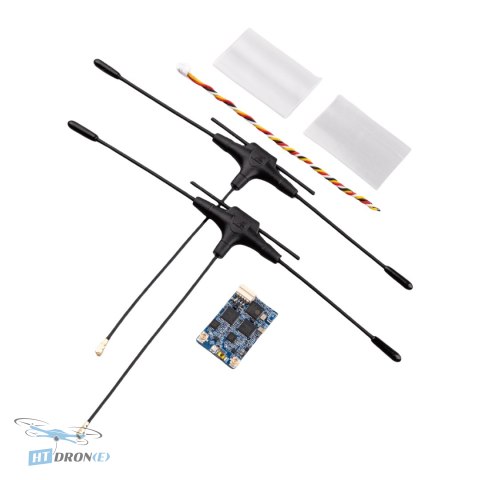

• Connector: 2 × IPEX 1
• Input Voltage: 3.6 - 5.5 V
• Weight: 1.6 g (receiver only)
• Size: 17 × 26.5 mm
• PCB Color: Blue

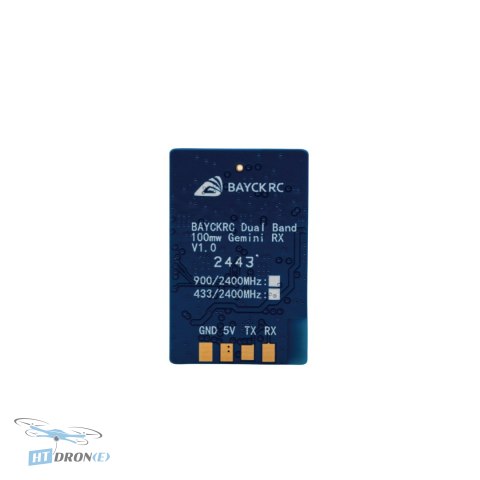

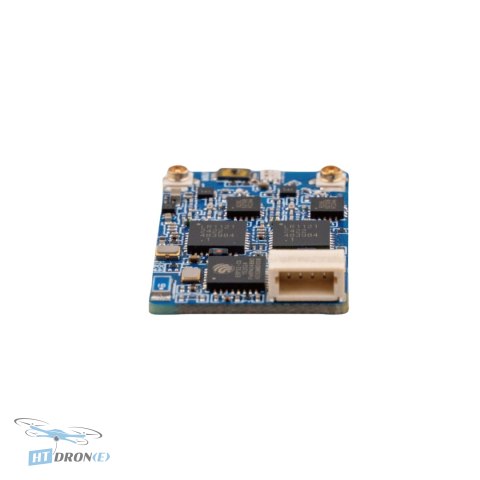

• Pinout: GND (Ground), 5V (Power), TX (UART Transmit), RX (UART Receive)

Applications

This receiver is ideal for a wide range of FPV applications, including long-range flights, freestyle, drone racing, and aerial photography/videography where a stable, high-performance radio link is critical. Its compact size and light weight make it suitable for smaller builds and weight-sensitive drones.

Compatibility

The BAYCK C3 receiver is compatible with the ExpressLRS protocol and requires a compatible transmitter module. It operates within a voltage range of 3.6-5.5V. The standard UART interface (TX/RX) ensures easy integration with most flight controllers. The IPEX 1 connectors allow for the use of various compatible antennas.
