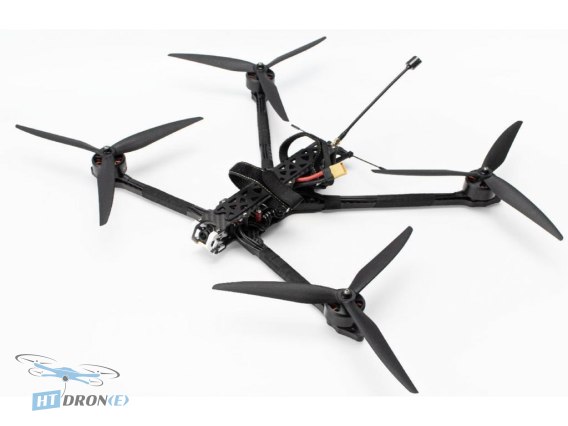

Partizan Rocky10 Pro ELRS Long Range FPV Drone with Night Vision Camera & 3.0W VTX

Introduction

The Partizan Rocky10 Pro ELRS is a premium 10-inch long-range FPV drone designed for pilots who demand exceptional performance and extended flight capabilities. Equipped with a high-performance Partizan 3214 720kv motor, Gemfan 1050-3 propellers, and a cutting-edge Caddx Ratel PRO 1500tvl night vision camera, this drone offers unparalleled visibility and image quality, even in challenging low-light environments. Its robust construction and advanced electronics ensure stability and reliability for demanding aerial missions.

Key Advantages

• Exceptional 10-inch long-range FPV platform for extended flight times.
• High-quality Caddx Ratel PRO night vision camera for superior low-light performance.
• Powerful Partizan 3214 720kv motors and Gemfan 1050-3 propellers for robust flight.
• Integrated 3.0W 5.8G VTX for strong, reliable video transmission.
• ELRS 915MHz receiver ensures stable, long-distance control.
• Impressive flight endurance: up to 40 minutes (no payload), 22 minutes (1.2kg payload).
• High payload capacity of up to 3.0kg for versatile applications.
• Durable 10" Partizan DC Foldable Frame for portability and resilience.

Technical Specifications

• Model: ROCKY 10 ELRS 3W Ratel Pro
• Frame: 10" Partizan DC Foldable Frame
• Dimensions: 400x315x60mm
• Weight: 840g
• Wheelbase: 426mm
• Arm Plate Thickness: 10mm
• Bottom/Top Plate Thickness: 3mm
• FC: Partizan F405 V2 MPU6500 Gyro
• Firmware: Betaflight 4.4.2
• ESC: Partizan BLheli-S 60A continuous, 70A burst
• VTX: 5.8G 3.0W
• VTX Antenna: Ultra Long 5.8G RHCP SMA 160mm
• Motor: Partizan 3214 720kv
• Propeller: GEMFAN 1050-3
• Camera: Caddx Ratel PRO 1500tvl
• Gimbal System: 9g Servo tilt gimbal
• Receiver: ELRS 915MHz
• Recommended Battery: 6S 8000mAh Lipo, 21700 6S 8000mAh
• Flight Time (8000mAh battery): 40 min (no payload), 22 min (1.2kg payload), 16 min (2kg payload), 10 min (3kg payload)
• MAX Speed: 140 km/h
• STABLE OPERATING TEMPERATURE RANGE: -10° to 40° C (14° to 104° F)
• Payload Capacity: up to 3.0kg

Applications

This versatile drone is perfect for long-range FPV exploration, professional aerial photography and videography, payload delivery, surveillance, and inspection tasks, especially in conditions requiring enhanced night vision capabilities. Its robust design and payload capacity make it suitable for demanding commercial and industrial applications.

Compatibility

The Partizan Rocky10 Pro ELRS is compatible with 6S 8000mAh Lipo or 21700 6S 8000mAh batteries. The included 9g Servo tilt gimbal system offers basic camera angle adjustment.

FAQ

What is the maximum flight time of the Partizan Rocky10 Pro ELRS drone?

With a recommended 6S 8000mAh Lipo battery, the Partizan Rocky10 Pro ELRS can achieve up to 40 minutes of flight time with no payload. Flight times are reduced with payload, such as 22 minutes with a 1.2kg load.

What makes the Caddx Ratel PRO camera suitable for night flights?

The Caddx Ratel PRO camera features 1500tvl resolution and is specifically designed for night vision, providing high-quality aerial imaging even in low-light conditions, making it ideal for nocturnal FPV missions.

What is the payload capacity of the Partizan Rocky10 Pro ELRS drone?

The Partizan Rocky10 Pro ELRS is capable of carrying a significant payload of up to 3.0kg, making it suitable for various professional applications including delivery or sensor mounting.

What is the control and video transmission system used on this drone?

This drone utilizes the ExpressLRS (ELRS) 915MHz system for reliable, long-range control and features a powerful 5.8G 3.0W VTX for clear video transmission. The VTX is equipped with an Ultra Long 5.8G RHCP SMA antenna.

Where can I buy the Partizan Rocky10 Pro ELRS drone with fast delivery?

You can buy the Partizan Rocky10 Pro ELRS drone at HTDRONE, our specialized FPV and UAV drone parts store based in Poland. We offer fast shipping within Poland and reliable international delivery via DHL.
