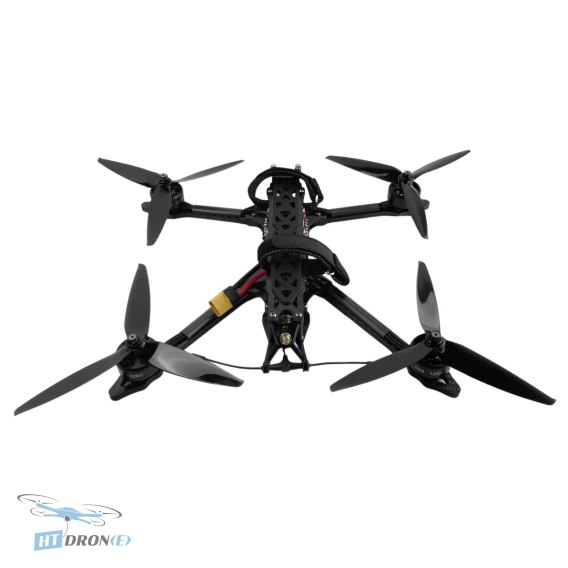

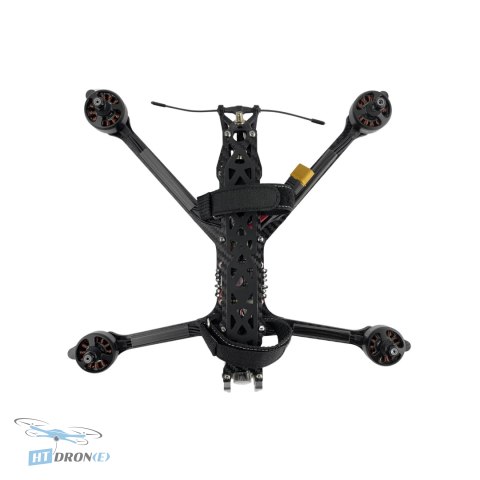

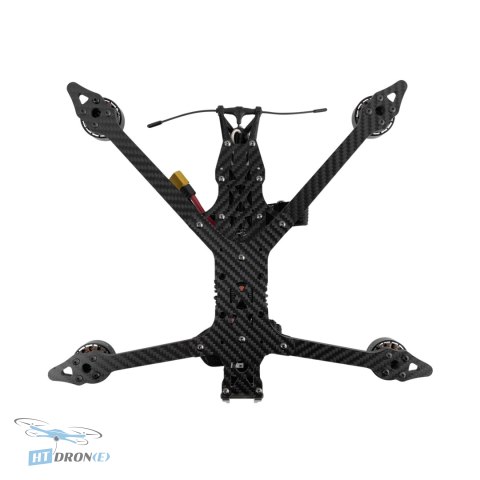

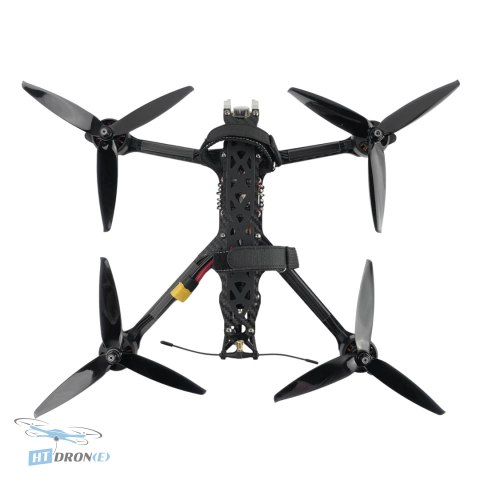

Partizan Rocky7 ELRS 5.8G 2.5W Long Range FPV Drone with Caddx H1 Camera

Introduction

The Partizan Rocky7 ELRS 5.8G 2.5W is a state-of-the-art 7-inch FPV drone meticulously designed for enthusiasts and professionals prioritizing long-range aerial exploration. It offers a superior flight experience with its robust video transmission system and advanced components, making it ideal for extended missions where signal integrity and clear video feed are paramount. This drone is built for performance and reliability in challenging FPV scenarios.

Key advantages

• Engineered for exceptional long-range FPV flights with a 7-inch frame.
• Powerful 2.5W 5.8G video transmitter ensures a stable and clear video signal over long distances.
• High-quality Caddx H1 analog camera provides sharp and detailed video footage.
• Equipped with the reliable ELRS 868/915MHz radio receiver system for precise control.
• Robust construction featuring a 7" Partizan DC Foldable Frame with 6mm arm thickness for durability.
• Optimized for extended flight times, capable of up to 30 minutes with a 6S 4000mAh battery (no payload).
• Impressive payload capacity of up to 1.5 kg, suitable for carrying essential equipment.
• Maximum speed of 150 km/h for exhilarating flight dynamics.

Technical specifications

• Model: Rocky7 ELRS 5.8G 2.5W
• Frame: 7" Partizan DC Foldable Frame
• Dimensions: 302x242x60mm
• Weight: 450g
• Wheelbase: 309mm
• Arm Plate Thickness: 6mm
• Bottom/Top Plate Thickness: 2.5mm
• Stack: F405 (F4 FC + 60A ESC 4in1)
• Firmware: Betaflight 4.4.2
• VTX: 5.8G 2.5W
• VTX Antenna: Ultra Long 5.8G RHCP SMA 160mm
• Motor: Partizan 2807 1300KV (6S)
• Propeller: Gemfan 7040-3
• Camera: Caddx H1
• Gimbal System: None
• RX: ELRS 868/915
• GPS: No
• Recommended Battery: 6S 4000mAh Lipo
• Flight Time (4000mAh battery): 30 min (no payload), 15 min (1.2 kg payload), 8 min (2 kg payload)
• Max Speed: 150 km/h
• Stable Operating Temperature: -10° to 40° C (14° to 104° F)
• Payload Capacity: up to 1.5 kg

Applications

This drone is ideally suited for long-range FPV flights, aerial photography and videography with light payloads, reconnaissance, and advanced hobbyist applications. Its robust design and powerful transmitter make it a versatile platform for various demanding aerial tasks.

Compatibility

The drone is compatible with 6S LiPo batteries, specifically recommending a 6S 4000mAh Lipo for optimal performance. It utilizes the ELRS 868/915MHz receiver system for control. The included F405 stack with a 60A ESC supports standard FPV flight controllers and peripherals.

FAQ

What is the maximum flight time of the Partizan Rocky7 ELRS drone?

With a recommended 6S 4000mAh Lipo battery, the Partizan Rocky7 ELRS drone can achieve up to 30 minutes of flight time with no payload. With a 1.2 kg payload, expect around 15 minutes, and with a 2 kg payload, approximately 8 minutes.

What is the video transmission range of the Partizan Rocky7 ELRS drone?

The drone is equipped with a 5.8G 2.5W video transmitter and an Ultra Long 5.8G RHCP SMA antenna, designed for robust signal transmission over long distances, making it ideal for long-range FPV flights.

What payload can the Partizan Rocky7 ELRS drone carry?

The Partizan Rocky7 ELRS drone is capable of carrying a payload of up to 1.5 kg, making it suitable for carrying various equipment for aerial tasks.

Where can I buy the Partizan Rocky7 ELRS FPV drone with fast delivery?

You can buy the Partizan Rocky7 ELRS FPV drone at HTDRONE, our specialized store based in Poland. We offer fast international delivery via DHL, ensuring you receive your order quickly.

What are the key features of the Partizan Rocky7 ELRS drone?

Key features include its 7-inch foldable frame, powerful 2.5W VTX, Caddx H1 analog camera, ELRS receiver, and impressive flight endurance and payload capacity for long-range missions.
