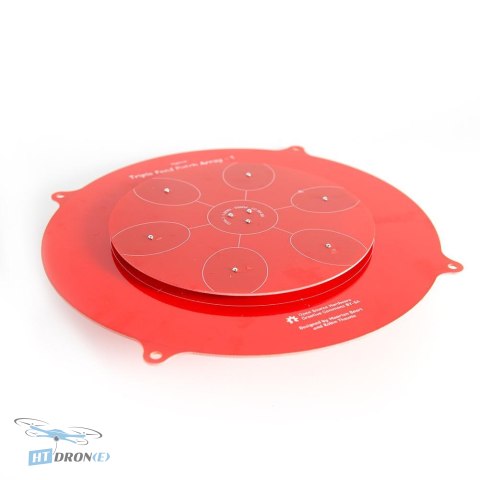

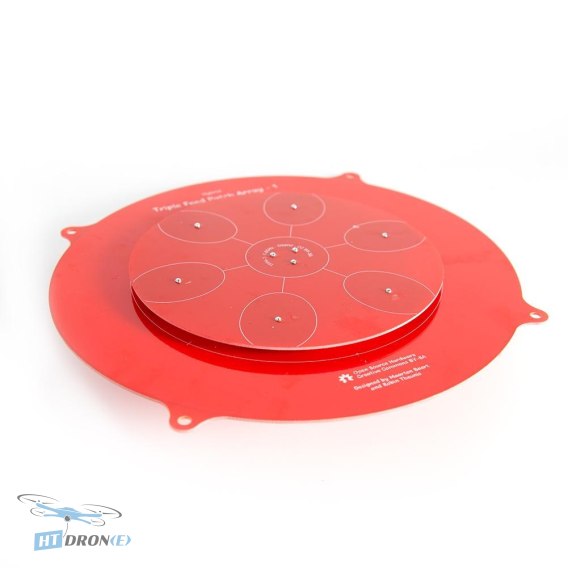

Partizan Triple Feed Patch Array 5.8G SMA FPV Goggle Antenna

Introduction

The Partizan Triple Feed Patch Array 5.8G SMA is a high-performance FPV goggle antenna designed to significantly improve your drone piloting experience. This advanced antenna utilizes a triple feed system for superior signal reception and transmission, ensuring a clearer and more stable video feed. Its robust construction and wide frequency range make it a top choice for serious FPV enthusiasts looking to upgrade their gear.

Key Advantages

• Enhanced Signal Reception: Triple feed design provides superior clarity and stability for your FPV video link.
• High Gain: A 15dBi antenna gain offers extended range and penetrates signal obstructions more effectively.
• Wide Bandwidth: Operates across the 5.1-6 GHz frequency range, ensuring compatibility and optimal performance.
• Low VSWR: Achieves an S11 value of less than 1.22 at the center frequency for efficient power transfer.
• Excellent Axial Ratio: With an axial ratio of 1.05, it minimizes signal polarization losses for a cleaner signal.
• Compact and Lightweight: Measuring 150x150x5mm, it's designed for easy integration without adding significant bulk.
• Easy Installation: Features a standard SMA female connector for quick and hassle-free setup with most FPV goggles.
• Durable Construction: Built to withstand the demands of FPV flying.

Technical Specifications

• Frequency: 5.8 GHz center frequency
• Bandwidth: 5.1-6 GHz

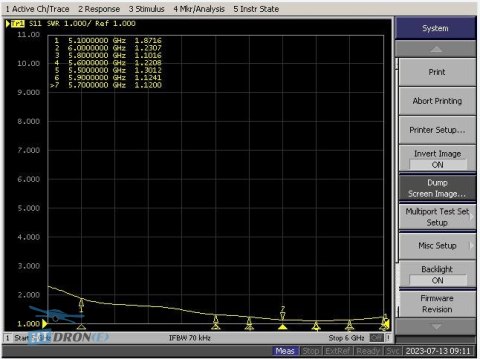

• VSWR: S11 <1.22 (at center frequency)
• Axial Ratio: 1.05
• Antenna Gain: 15dBi

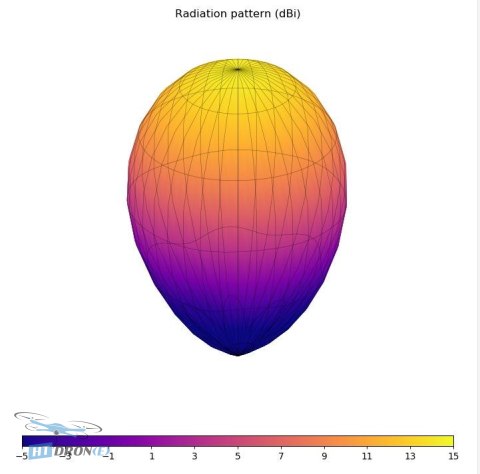

• Half Power Beam Width: 30 degrees (Horizontal and Vertical)
• Radiation Efficiency: 75%
• Dimensions: 150x150x5mm
• Connector Type: SMA Female

Applications

This antenna is perfectly suited for a wide range of FPV applications, including drone racing, freestyle flying, cinematic FPV, and long-range FPV. It significantly enhances the video link quality for FPV goggles, providing a more immersive and reliable flying experience.

Compatibility

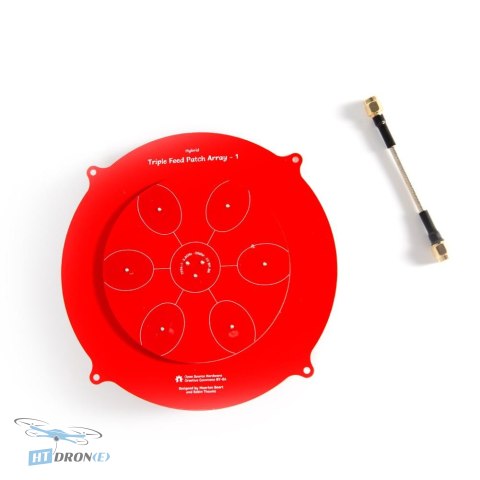

Equipped with a standard SMA female connector, this antenna is compatible with most FPV goggles and video receivers that utilize the SMA connector type. Please ensure your device has an SMA port for connection. Includes a cable for connection.

FAQ

What is the main benefit of the Partizan Triple Feed Patch Array 5.8G SMA antenna?

The main benefit is significantly improved FPV video link clarity and stability due to its triple feed design and 15dBi gain, offering a more reliable and immersive flying experience.

What is the frequency range and gain of this Partizan antenna?

This antenna operates in the 5.8 GHz frequency band with a bandwidth of 5.1-6 GHz and provides a high antenna gain of 15dBi for extended range.

Is the Partizan Triple Feed Patch Array antenna compatible with standard FPV goggles?

Yes, it features a standard SMA female connector, ensuring broad compatibility with most FPV goggles and video receivers that use SMA connections. An included cable facilitates connection.

Where can I buy the Partizan Triple Feed Patch Array 5.8G SMA antenna with fast delivery?

You can buy the Partizan Triple Feed Patch Array 5.8G SMA antenna at HTDRONE, your specialized FPV drone parts store. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

What are the physical dimensions of the Partizan Triple Feed Patch Array 5.8G SMA antenna?

The antenna has compact dimensions of 150x150x5mm, making it easy to mount on FPV goggles without adding excessive weight or bulk.
