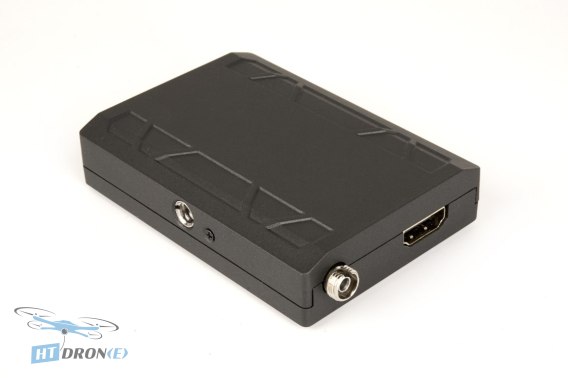

Phynan Photon VRX Fiber Optic Video Receiver for Long-Range FPV & UAV

Introduction

The Phynan Photon VRX is a cutting-edge fiber optic video receiver engineered for unparalleled digital video transmission capabilities. It is specifically designed for professional FPV (First Person View) drones, UAV (Unmanned Aerial Vehicle) systems, and ground station setups that require stable, high-definition video feeds over exceptionally long distances. This device solves the problem of signal degradation and interference common in traditional wireless systems, ensuring a crystal-clear and reliable video link for critical operations.

Key advantages

• Fiber optic video transmission for superior signal stability and clarity.
• Extended transmission range of up to 80 km, perfect for long-range missions.
• Full HD (1920x1080 @ 60fps) video output for smooth, detailed visuals.
• High resistance to electromagnetic interference ensures a clean signal.
• Wide input voltage range (DC 9-26V) for flexible power options.
• Compact design with standard mounting thread for easy integration.
• Supports telemetry output (UART) for seamless system integration.
• Low latency for real-time control and monitoring.

Technical specifications

• Model: Photon 20km VRX
• Power Supply Voltage: DC 9-26 V
• Power Connector: DC 2.1 mm
• Dimensions: 83.4 x 59.5 x 19 mm
• Video Output Port: HDMI Type A
• Output Format: 1920 x 1080 @ 60 fps
• Fiber Optic Type: Single-mode, single fiber
• Transmission Distance: 0-80 km
• Fiber Optic Interface: FC interface
• Data Transfer Rate: 3 Gb/s
• Mounting Thread Size: 1/4"
• Telemetry Interface: GH1.25 4-pin
• Telemetry Data Type: UART
• Telemetry Baud Rate: Adaptive
• Output Voltage: DC 5 V
• Max Output Current: 1 A

Applications

The Phynan Photon VRX is ideal for a wide range of demanding applications including long-range FPV drone racing, professional aerial cinematography, industrial inspections, UAV surveillance, search and rescue operations, and advanced ground station setups requiring robust video links.

Compatibility

This receiver is compatible with systems providing DC 9-26V power via a 2.1mm DC connector. It features an HDMI Type A output for video and a GH1.25 4-pin connector for UART telemetry data. The standard 1/4" mounting thread allows for easy integration into various setups.

FAQ

What is the maximum transmission range of the Phynan Photon VRX?

The Phynan Photon VRX supports transmission distances from 0 to 80 km using single-mode, single-fiber optic cable, ensuring reliable video feeds over extreme ranges.

What video resolution and frame rate does the Phynan Photon VRX support?

This receiver outputs video in Full HD resolution at 1920 x 1080 pixels with a smooth 60 frames per second, providing clear and fluid image quality.

Is the Phynan Photon VRX suitable for professional FPV and UAV applications?

Yes, its high-performance fiber optic transmission, low latency, and high interference resistance make it ideal for professional FPV, UAV, and ground station applications requiring stable, high-quality video.

What are the power requirements for the Phynan Photon VRX?

The receiver operates within a wide input voltage range of DC 9-26V and uses a standard 2.1mm DC power connector for flexible power options.

Where can I buy the Phynan Photon VRX with fast delivery?

You can order the Phynan Photon VRX directly from HTDRONE, your specialized FPV and UAV parts store. We offer fast shipping within Poland and reliable worldwide delivery via DHL.
