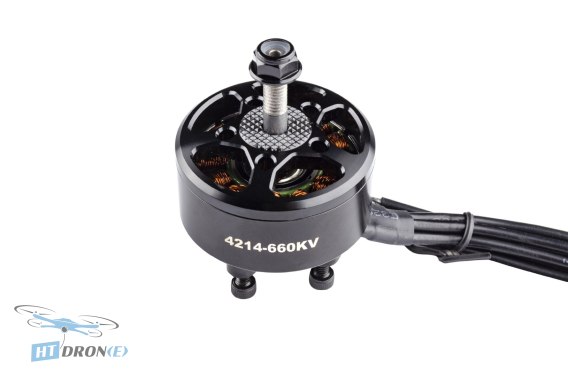

Pilotix 4214-660KV FPV Drone Motor - High Thrust, 8S LiPo Compatible

Introduction

The Pilotix 4214-660KV motor is a high-performance powerhouse designed for discerning FPV drone pilots who demand precision, efficiency, and durability. Its robust construction and optimized power output ensure exceptional thrust capabilities, making it suitable for aggressive flying styles and demanding aerial tasks. This motor is built to withstand rigorous use, offering a reliable upgrade for your FPV setup.

Key Advantages

• High Thrust: Delivers an impressive maximum thrust of 5531g for powerful aerial maneuvers.
• Optimized Power: Achieves a maximum power output of 1765.1W for demanding flights.
• Durable Construction: Features high-temperature resistant magnets (120℃) and enamel wire (180℃) for longevity.
• Lightweight Design: Compact dimensions (Φ49 x H43.5mm) and a weight of 273g (with wire) minimize impact on drone agility.
• Wide Battery Compatibility: Supports 8S LiPo batteries for versatile power options.
• Precision Engineering: Boasts a 12N14P configuration and excellent dynamic balance (≤20mg) for smooth operation.
• Reliable Performance: Low current draw at no load (≤1.5A) and stable resistance (23.41 mΩ ±3%) ensure consistent performance.

Technical Specifications

• Motor Model: F4214
• Configuration: 12N14P

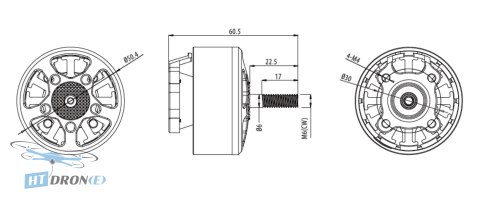

• Motor Size: Φ49 x H43.5mm
• Magnet Temperature Resistance: 120 ℃
• Enameled Wire Temperature Resistance: 180 ℃
• Insulation Test: 500V
• Mounting Dimensions: 4×M4 @ D30mm
• KV Rating: 660KV
• Battery Compatibility: 8S LiPo
• No-load Current: ≤1.5A
• Resistance: 23.41 mΩ ±3%
• Maximum Thrust: 5531g
• Maximum Power: 1765.1W
• Wire Size: 14AWG
• Wire Length: 300mm ±3mm
• Dynamic Balance: ≤20mg
• Weight (with wire): 273g

Applications

This motor is perfectly suited for high-performance FPV racing drones, freestyle quadcopters, and demanding UAV applications that require significant power and thrust. Its robust build also makes it a reliable choice for professional aerial photography and videography setups where stability and power are crucial.

Compatibility

The Pilotix 4214-660KV motor is designed for 8S LiPo battery systems. It features standard M4 mounting holes with a 30mm bolt circle diameter, compatible with most FPV drone frames. The 14AWG wire size and 300mm length offer flexibility for ESC connections.

FAQ

What is the maximum thrust generated by the Pilotix 4214-660KV motor?

The Pilotix 4214-660KV motor delivers an impressive maximum thrust of 5531g. This high thrust capability makes it ideal for FPV drones that require powerful acceleration and maneuverability.

What battery voltage is recommended for the Pilotix 4214-660KV motor?

This motor is compatible with 8S LiPo batteries, providing ample power for demanding FPV applications. Ensure your ESC and battery can handle the required output for optimal performance.

What are the key technical specifications of the Pilotix 4214-660KV motor?

Key specifications include a 660KV rating, 12N14P configuration, Φ49 x H43.5mm size, and a weight of 273g. It also features high-temperature resistance for magnets and wire, ensuring durability.

Where can I buy the Pilotix 4214-660KV FPV motor with reliable delivery?

You can order the Pilotix 4214-660KV FPV motor from HTDRONE. We offer fast and reliable international delivery via DHL, ensuring you receive your parts promptly.

Is the Pilotix 4214-660KV motor suitable for professional UAV applications?

Yes, with its robust construction, high thrust, and reliable performance, the Pilotix 4214-660KV motor is an excellent choice for professional UAV builds that require significant power and durability.
