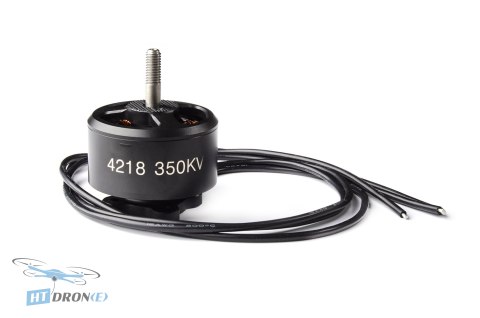

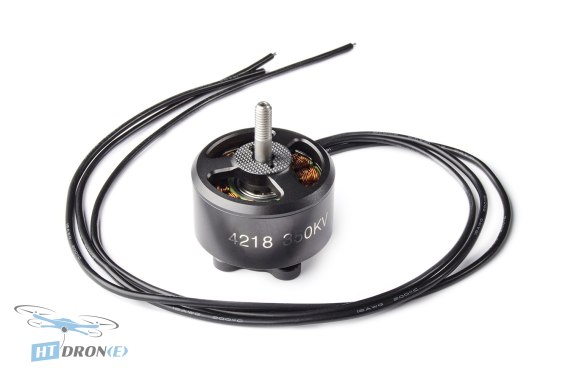

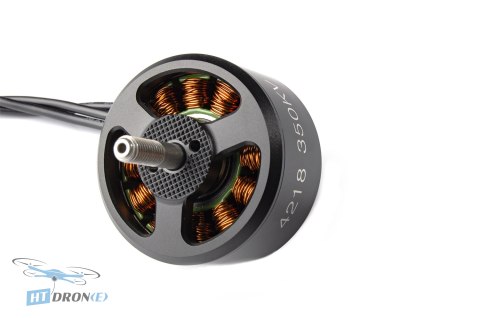

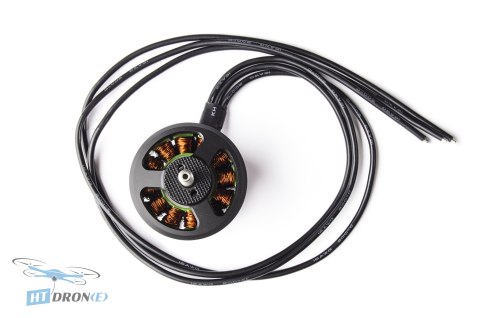

Pilotix 4218-350KV FPV Drone Motor - High Performance, 12S Power

Pilotix 4218-350KV: Powering Your FPV Experience

The Pilotix 4218-350KV motor is a cutting-edge propulsion solution designed for the most demanding FPV and UAV applications. It offers a perfect blend of precision, high performance, and exceptional durability. Built with a solid construction and optimized power delivery, this motor provides outstanding thrust while maintaining a compact and lightweight profile, making it an excellent choice for pilots who refuse to compromise on quality and performance.

Key Advantages

• High Performance: Engineered for demanding FPV and UAV applications requiring precision and efficiency.
• Exceptional Thrust: Delivers outstanding propulsive force for dynamic flight maneuvers.
• Durable Construction: Built to last with robust materials and reliable components.
• Lightweight Design: Compact and light, minimizing overall drone weight for better agility.
• 12S Compatibility: Rated for 12S (48V) operation, providing ample power for high-performance builds.
• Optimized Power Output: Features a 350KV rating for a balance of speed and torque.
• High-Quality Magnets: Utilizes 52SH Arc magnets for efficient magnetic flux.
• Ready for Documentation: Easy access to technical documentation for integration and setup.

Technical Specifications

• KV Rating: 350KV
• Configuration: 12S14P
• Internal Resistance: 40mΩ
• Shaft Length: 22 mm
• Rated Voltage: 12S (48V)
• Peak Current: 73.54A
• Idle Current (10V): 1.1A
• Magnets: 52SH Arc
• Stator Size: Ø42 × L18mm
• Overall Dimensions: Ø50.4 × L63.3 mm
• Shaft Diameter: M6
• Silicone Wire: 16AWG, 500mm
• Max Continuous Power: 3529.92W
• Weight (with cable): 320g

Applications

This motor is ideally suited for a wide range of applications including high-performance FPV racing drones, freestyle quads, professional UAV platforms, aerial photography, and inspection tasks where reliable power and precision control are paramount.

Compatibility

The Pilotix 4218-350KV motor is designed for compatibility with 12S (48V) battery systems. Its M6 shaft and standard mounting dimensions ensure broad compatibility with most FPV drone frames and propellers. The included 500mm 16AWG silicone wire provides ample length for easy ESC connection.

Need detailed specifications? Inquire about documentation.

FAQ

What is the Pilotix 4218-350KV motor designed for?

The Pilotix 4218-350KV motor is designed for demanding FPV and UAV applications that require precision, high performance, and durability. It's ideal for FPV racing, freestyle, and professional drone builds.

What voltage can the Pilotix 4218-350KV motor handle?

This motor is rated for 12S (48V) operation, providing substantial power for high-performance drone configurations.

What are the key technical specifications of the Pilotix 4218-350KV motor?

Key specs include a 350KV rating, 12S14P configuration, 40mΩ internal resistance, a 22mm shaft length, and a maximum continuous power of 3529.92W. It weighs 320g with the cable.

Where can I buy the Pilotix 4218-350KV motor with reliable delivery?

You can buy the Pilotix 4218-350KV motor at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your parts quickly.

Is the Pilotix 4218-350KV motor suitable for professional drone applications?

Yes, its robust construction, high performance, and precise power delivery make it an excellent choice for professional UAV platforms used in aerial photography, inspection, and other demanding tasks.
