Pilotix 4312 660KV FPV Drone Motor for High-Performance UAV Builds

Introduction

The Pilotix 4312 660KV motor is a high-performance brushless motor designed for serious FPV and UAV applications. It offers a potent combination of power, efficiency, and durability, making it an ideal component for pilots who demand the best from their equipment. This motor is built to handle challenging flights and deliver consistent performance under load.

Key Advantages

• High Power Output: Delivers over 7900g of lift capacity for powerful flight capabilities.
• Efficient Performance: Optimized for efficiency with a 660 RPM/V rating.
• Wide Voltage Range: Supports up to 22.2V (6S Lipo) for versatile power options.
• Durable Construction: Built with precision for long-lasting reliability.
• Low Vibration: Features low shaft and housing runout for smoother operation.
• Dynamic Balancing: Precisely balanced for reduced vibrations and improved flight stability.
• Professional Grade: Suitable for professional FPV and UAV builds requiring high reliability.

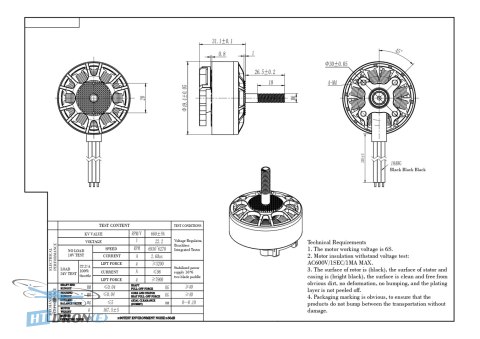

Technical Specifications

• Model: Pilotix 4312
• KV Value: 660 RPM/V
• Weight: 167.5g ± 5g
• Diameter: 42 mm
• Height: 31.1 mm
• Shaft Length: 18 mm
• Mounting Hole Diameter: 4 mm
• Shaft Diameter: 6 mm
• Rating Voltage (Lipo): 6S
• No-Load Voltage (10V test): 10V
• Speed (No Load): 6930 ± 670 RPM
• Max Current (No Load): 2.6A
• Lift Capacity (Min): ≥ 3200 g
• Voltage (Load Test): 22.2V at 100% throttle
• Current (Load Test): ≤ 98 A
• Lift Force (Max Load): ≥ 7900 g
• Shaft End Runout: ≤ 0.04 mm
• Housing Runout: ≤ 0.04 mm
• Dynamic Balance Value: ≤ 5 mg
• Shaft Tear-off Strength: ≥ 40 kg
• Stator Core and Socket Tear-off Strength: ≥ 5 kg
• Axial Clearance (Dummy): 0 ~ -0.10 mm
• Operating Noise: ≤ 90 dB
• Test Environment Noise: ≤ 50 dB

Applications

This motor is ideal for high-performance FPV racing drones, professional aerial photography UAVs, custom drone builds, and heavy-lift applications requiring significant power and stability. It excels in scenarios demanding precise control and robust performance.

Compatibility

The Pilotix 4312 660KV motor is compatible with 6S Lipo batteries and standard FPV ESCs. It features a 4mm mounting hole diameter and a 6mm shaft diameter, suitable for a wide range of propellers and mounting systems.

Packaging Includes:
1x Pilotix 4312 660KV Motor

For documentation, please contact us.

FAQ

What is the main application for the Pilotix 4312 660KV motor?

The Pilotix 4312 660KV motor is designed for high-performance FPV racing drones and professional UAV applications that require significant power and lift capacity. It's ideal for custom builds demanding robust and reliable power.

What is the maximum lift capacity of the Pilotix 4312 660KV motor?

This motor offers an impressive maximum lift capacity of over 7900g under load, making it suitable for heavy-lift configurations and aggressive flight maneuvers.

What voltage range does the Pilotix 4312 660KV motor support?

The motor is rated for up to 22.2V, which corresponds to a 6S Lipo battery configuration, providing ample power for demanding drone operations.

Where can I buy the Pilotix 4312 660KV motor with reliable delivery?

You can buy the Pilotix 4312 660KV motor directly from HTDRONE. We offer fast and reliable worldwide shipping via DHL, ensuring you receive your order promptly.

What are the key specifications of the Pilotix 4312 660KV motor?

Key specifications include a 660KV rating, 167.5g weight, 42mm diameter, 31.1mm height, and a 6mm shaft diameter. It supports 6S Lipo batteries and provides over 7900g lift.
