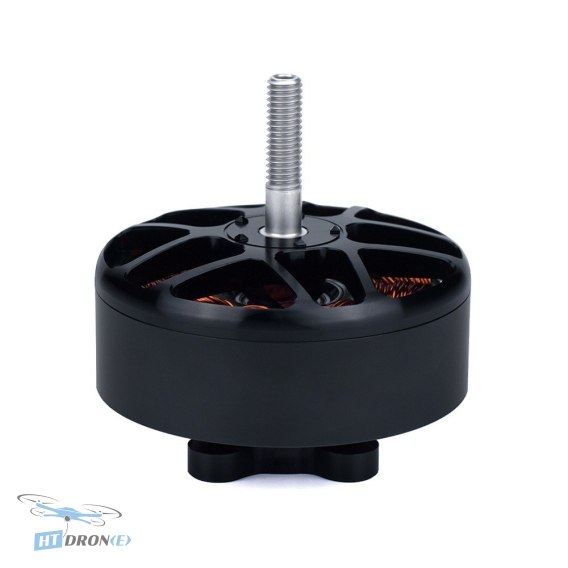

Pilotix 5315 380KV Brushless Motor for FPV Drones & UAV - High Torque, 6-12S LiPo

Introduction

The Pilotix 5315 380KV is a robust and efficient brushless motor designed for demanding FPV drones, unmanned aerial vehicles (UAVs), and high-performance multirotor applications. It offers a perfect blend of smooth, stable thrust, excellent thermal performance, and unwavering reliability, even under heavy load conditions. This motor is your go-to choice for building powerful and dependable aerial platforms.

Key advantages

• High Efficiency and Torque: Features an optimized 12N14P configuration for smooth, vibration-free power delivery.
• Wide Voltage Range: Compatible with 6-12S LiPo batteries, offering great flexibility for various builds.
• Durable Construction: Equipped with a precision-balanced rotor and high-quality bearings for extended lifespan and reduced noise.
• Stable Output: Delivers consistent thrust and performance, crucial for heavy-lift or high-durability designs.
• Low Internal Resistance: Boasts a low 30 mΩ internal resistance, enhancing electrical efficiency and minimizing heat generation.
• Flexible Silicone Wires: Comes with 13# AWG 150mm silicone wires for easy installation and optimal current flow.

Technical specifications

• KV Value: 380KV
• Internal Resistance: 30 mΩ
• Shaft Length: 6 mm
• Battery Compatibility: 6-12S LiPo
• Max Power: 4257.36 W
• Max Thrust: 9034.27 g
• Poles Configuration: 12N14P
• Dimensions: 61.5 x 64 mm
• Silicone Wire: 13# AWG x 150 mm
• Weight (with wires): 310 g
• Max Current: 101.88 A
• No-load Current (10V): 1.70 A

Applications

This motor is ideally suited for advanced FPV drone builds, professional UAV platforms, heavy-lift cargo drones, endurance-focused aerial vehicles, and other high-power multirotor systems requiring reliable and sustained performance.

Compatibility

Compatible with 6-12S LiPo batteries. Features 13# AWG silicone wires for easy connection. Standard motor mounting dimensions suitable for most large drone frames.

FAQ

What is the Pilotix 5315 380KV motor best suited for?

The Pilotix 5315 380KV motor is ideal for high-performance FPV drones, UAVs, and heavy-lift multirotor applications. Its robust design and high torque output make it suitable for demanding builds requiring stable and powerful performance.

What battery voltage is compatible with the Pilotix 5315 380KV motor?

This motor is highly versatile and compatible with a wide range of battery voltages, supporting 6S to 12S LiPo batteries. This allows for flexible configuration depending on your specific drone's power requirements.

What are the key technical advantages of the Pilotix 5315 380KV motor?

Key advantages include its optimized 12N14P configuration for smooth power delivery, high efficiency due to low internal resistance (30 mΩ), durable construction with quality bearings, and a substantial maximum thrust of over 9000g.

Where can I buy the Pilotix 5315 380KV motor with reliable delivery?

You can order the Pilotix 5315 380KV motor from HTDRONE. We offer fast shipping within Poland and reliable international delivery via DHL to ensure you receive your parts quickly.

What is the maximum thrust and power output of this motor?

The Pilotix 5315 380KV motor can generate a maximum thrust of 9034.27 grams and deliver a maximum power of 4257.36 watts, making it suitable for demanding aerial tasks.
