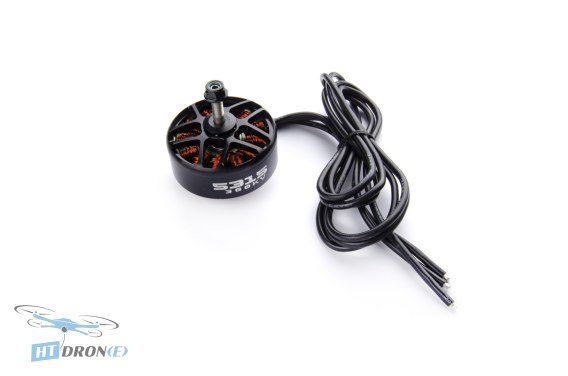

Pilotix 5315 380KV Brushless Motor for Professional FPV Drones

Introduction

The Pilotix 5315 380KV motor is a high-performance brushless motor designed for professional FPV drones and large-scale models. It's the ideal choice for applications requiring reliable power, stable operation, and the ability to handle significant payloads. Its optimized KV rating and low internal resistance ensure smooth and efficient performance, even when pushed to its limits.

Key Advantages

• High-performance brushless motor for demanding FPV applications.
• Optimized 380KV rating for efficient power delivery.
• Low internal resistance (30mΩ) for smooth operation and reduced heat.
• Exceptional maximum output power of up to 4257.36W.
• Impressive maximum thrust of 9034g for lifting heavy payloads.
• Versatile compatibility with 6-8S LiPo batteries for customized setups.
• Durable construction with a 6mm shaft and robust 13AWG silicone leads.
• Ideal for professional drones, large models, and heavy-lift UAVs.

Technical Specifications

• KV: 380
• Internal Resistance: 30mΩ
• Shaft Diameter: 6 mm
• Battery: 6-8S
• Max Power: 4257.36W
• Max Thrust: 9034.27g
• Stator Poles: 12N14P

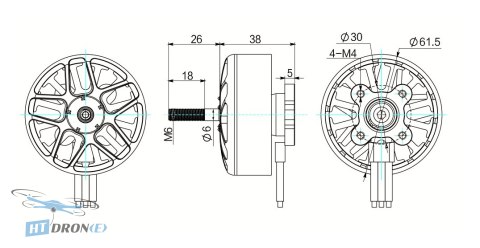

• Dimensions: Ø61.5 x 64mm
• Silicone Wire: 13AWG 150mm
• Weight (with wire): 310g
• Max Current: 101.875A
• No-Load Current (10V): 1.24A

Applications

This motor is perfectly suited for a wide range of applications including professional FPV drones, heavy-lift UAV platforms, aerial photography and videography setups, inspection drones, and custom large-scale model aircraft projects that require significant power and reliability.

Compatibility

Compatible with 6-8S LiPo batteries. Features 13AWG silicone wire for robust power connections. Designed for demanding FPV and UAV systems.

FAQ

What is the Pilotix 5315 380KV motor best suited for?

The Pilotix 5315 380KV motor is best suited for professional FPV drones and large-scale models that require high power output and stable performance, such as heavy-lift UAVs and advanced aerial platforms.

What is the maximum thrust this Pilotix motor can provide?

The Pilotix 5315 380KV motor can provide a maximum thrust of 9034.27g, making it capable of lifting substantial payloads for various professional applications.

What battery voltage is recommended for the Pilotix 5315 380KV motor?

This motor is compatible with 6-8S LiPo batteries, offering flexibility to match your drone's power requirements and flight duration needs.

Where can I buy the Pilotix 5315 380KV motor with reliable delivery?

You can buy the Pilotix 5315 380KV motor at HTDRONE. We offer fast and reliable shipping within Poland and worldwide via DHL for international orders.

What are the key technical specifications of the Pilotix 5315 380KV?

Key specifications include a 380KV rating, 30mΩ internal resistance, 6mm shaft diameter, 4257.36W max power, and a weight of 310g (including wire).
