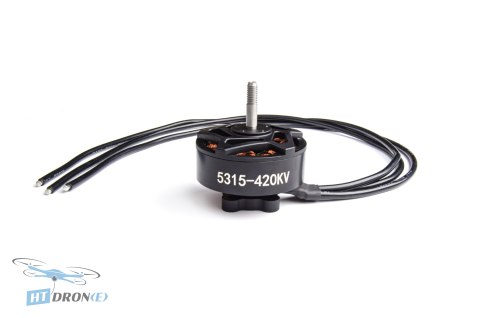

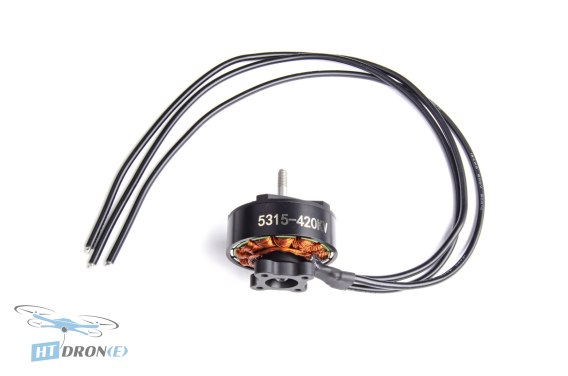

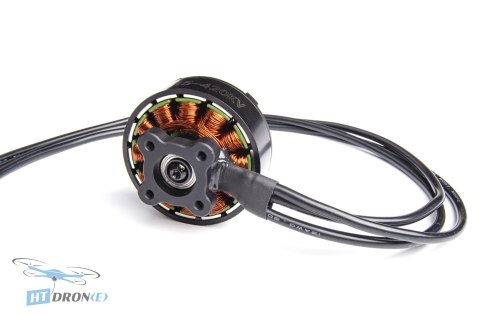

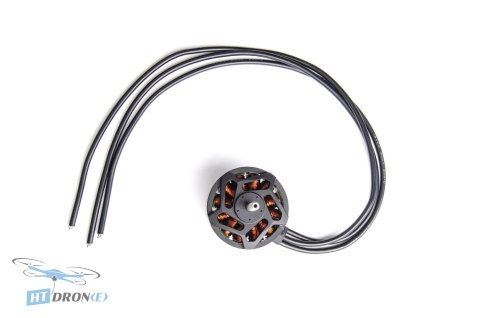

Pilotix 5315 420KV Brushless Motor for High-Power FPV Drones

Introduction

The Pilotix 5315-420KV is a high-performance brushless motor designed for FPV and UAV applications requiring significant power and efficiency. It offers exceptional thrust capabilities and consistent reliability, making it an ideal choice for heavy-lift drones, professional aerial photography platforms, and other demanding flight missions. Experience superior performance and smooth operation thanks to its robust construction and optimized design.

Key advantages

• High Power Output: Delivers up to 2980W for demanding aerial tasks.
• Impressive Thrust: Achieves maximum thrust of up to 8324g for heavy payloads.
• Durable Construction: Built with high-quality materials for long-lasting reliability.
• Smooth Operation: Optimized design ensures smooth and efficient performance during flight.
• Wide Compatibility: Suitable for 6-8S LiPo batteries.
• Efficient Design: Features a 12N14P configuration for optimal power delivery.
• Reliable Performance: Engineered for consistent and dependable operation in various conditions.

Technical specifications

• Product Code: F5315
• Configuration: 12N14P
• Motor Size: Ø61xH44mm
• Magnet Temperature Rating: 120°C
• Enamel Wire Temperature Rating: 180°C
• Insulation Test: 500V
• Mounting Dimensions: 4×M4@D30mm
• Recommended Propeller Size: GF1507
• KV Rating: 420KV
• Battery (LiPo): 6-8S
• No-Load Current /24V: ≤2.98A
• Resistance: 20.25mΩ ± 3%
• Max Thrust (g): 6128g / 8324g
• Max Power: 1588.9W / 2980W
• Wire Size (AWG): 12#
• Wire Length: 600mm ± 3
• Dynamic Weight: ≤20mg
• Weight (with wire): 401g

Applications

This motor is ideal for building powerful FPV drones, heavy-lift UAVs for professional cinematography, agricultural applications, inspection drones, and experimental aircraft projects requiring substantial power and thrust. Its 420KV rating and high power output make it suitable for large propeller setups on 6-8S systems.

Compatibility

Compatible with 6-8S LiPo batteries. Features standard M4 mounting holes with a 30mm bolt pattern. Recommended propeller size is GF1507. The 12# wire size and 600mm length offer flexibility in setup.

FAQ

What is the Pilotix 5315-420KV motor best suited for?

The Pilotix 5315-420KV motor is best suited for building high-power FPV drones and heavy-lift UAVs. Its high thrust and power output make it ideal for applications requiring significant payload capacity or demanding aerial performance.

What battery voltage is recommended for the Pilotix 5315-420KV motor?

This motor is designed to work with 6-8S LiPo batteries, offering flexibility for various power requirements and flight durations.

What is the maximum thrust this Pilotix motor can achieve?

The Pilotix 5315-420KV motor can achieve a maximum thrust of up to 8324g, making it suitable for carrying heavier payloads or for high-performance flight maneuvers.

Where can I buy the Pilotix 5315-420KV motor with reliable delivery?

You can buy the Pilotix 5315-420KV motor directly from HTDRONE. We offer fast and reliable shipping options, including worldwide delivery via DHL, to get your parts to you quickly.

What are the key technical specifications of the Pilotix 5315-420KV?

Key specifications include a 420KV rating, 12N14P configuration, Ø61xH44mm size, 6-8S LiPo compatibility, and a maximum power output of 2980W.
