Pilotix AM32 80A 6-8S Single ESC for High-Performance FPV Drones

Introduction

The Pilotix AM32 80A Single ESC is a compact, high-performance electronic speed controller engineered for the most demanding FPV drone applications. It is built to provide exceptional power delivery and reliability, making it a top choice for pilots who require the best from their custom-built multirotor aircraft. Whether you are into FPV racing, freestyle, or heavy-lift UAV projects, this ESC ensures your motors receive the consistent power they need for optimal performance.

Key Advantages

• High continuous current rating of 80A, with peak support up to 100A for aggressive maneuvers.
• Wide input voltage range (4S-8S LiPo) offers flexibility for various battery setups.
• Advanced AM32/HF32 firmware ensures compatibility with modern flight controllers and protocols like DShot 300/600.
• Integrated telemetry provides real-time data for enhanced battery management and flight monitoring.
• Variable PWM frequency allows for precise performance tuning to match your flying style.

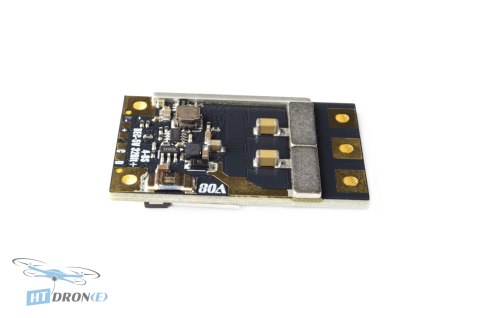

• Compact size (24x37mm) facilitates easy integration into tight drone builds.
• Reliable power delivery for consistent motor response and smooth flight control.
• Durable construction designed for the rigors of FPV flight.

Technical Specifications

• Current Meter: Yes
• Telemetry: Yes
• Continuous Current: 80A
• Peak Current: 100A
• Input Voltage: 4~8S LiPo
• Firmware: AM32
• Protocol: PWM / DShot 300 / 600
• Variable PWM Frequency: Yes
• Mounting: None specified
• Size: 24 x 37 mm

Applications

This ESC is perfectly suited for high-performance FPV drones, including racing drones, freestyle quads, and professional UAVs. Its robust current handling and advanced features make it ideal for applications requiring significant power and precise control, such as aerial cinematography, inspection drones, and competitive FPV racing.

Compatibility

The Pilotix AM32 80A ESC is compatible with flight controllers supporting PWM and DShot 300/600 protocols. Its wide 4-8S LiPo input voltage range ensures compatibility with a broad spectrum of battery configurations commonly used in FPV and UAV systems. The firmware support for AM32/HF32 allows for easy updates and customization.

FAQ

What is the Pilotix AM32 80A Single ESC best suited for?

The Pilotix AM32 80A Single ESC is best suited for high-performance FPV drones, including racing and freestyle builds, as well as demanding UAV applications that require robust and reliable power delivery.

What battery voltages does this ESC support?

This ESC supports a wide input voltage range from 4S up to 8S LiPo batteries, offering great flexibility for various drone configurations.

Does the Pilotix AM32 ESC have telemetry features?

Yes, the Pilotix AM32 80A ESC features integrated telemetry, allowing you to monitor crucial flight data in real-time for better performance management and flight safety.

What communication protocols are supported by this ESC?

It supports modern communication protocols including PWM and DShot 300/600, ensuring compatibility with a wide range of contemporary flight controllers.

Where can I buy the Pilotix AM32 80A ESC with fast delivery?

You can order the Pilotix AM32 80A 6-8S Single ESC from HTDRONE, a specialized FPV parts store. We offer fast international delivery via DHL for customers worldwide.
