Pilotix DIY F405 FC + 60A ESC Stack with ELRS 915MHz Receiver - Best FPV Drone Kit

Introduction

The Pilotix DIY F405 FC + 60A ESC Stack with ELRS 915MHz Receiver is a high-performance integrated solution for FPV drone builders. This kit combines a powerful F405 flight controller with a robust 60A Electronic Speed Controller (ESC) and a reliable ExpressLRS (ELRS) 915MHz receiver, offering a streamlined and efficient core for your custom FPV or UAV project. It's ideal for hobbyists and professionals looking to build or upgrade drones that require precise control and high power handling.

Key Advantages

• Integrated F405 Flight Controller with ICM42688 Gyro for stable flight.
• Powerful 60A continuous current ESCs (70A burst) supporting 3-6S LiPo for high-performance builds.
• Built-in Pilotix DIY ELRS 915MHz receiver for long-range, low-latency control.
• Supports a wide range of receiver protocols including ELRS/CRSF, SBUS, and more.
• 16MB Black Box for flight data logging and tuning.
• Ample 5V/2.5A and 9V/3A power outputs for accessories and FPV systems.
• Durable construction with standard 30.5mm x 30.5mm mounting pattern for universal compatibility.

Technical Specifications

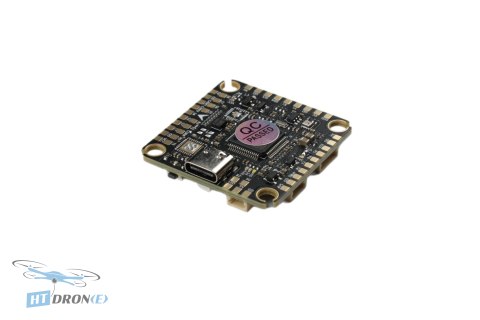

• Flight Controller (F405 V3)
  • Master Chip: STM32F405RGT6
  • Gyroscope: ICM42688
  • Barometer: SPL06
  • OSD: Supported
  • Black Box: 16MB/microSD
  • Motor Output Channels: 8
  • LED Light Strip Support: Supported
  • Buzzer Support: Supported
  • Receiver Protocol Support: ELRS/CRSF/SBUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX
  • Universal Serial Ports: 5 optional
  • Power Output: 5V/2.5A, 9V/3A
  • USB Connector: Type-C
  • DJI/Vista Digital Sky End Support: Supported
  • Camera Switching Support: Supported
  • Sbus and VTX Bus Jumper Switching: Supported
  • 9V and VCC Jumper Switching: Supported
  • Weight: 9.6g
  • External Dimensions: 36mm x 36mm
  • Mounting Hole Spacing: 30.5mm x 30.5mm
  • Firmware Name: AOCODARCF405V3 / AOCODARCF405V3SD

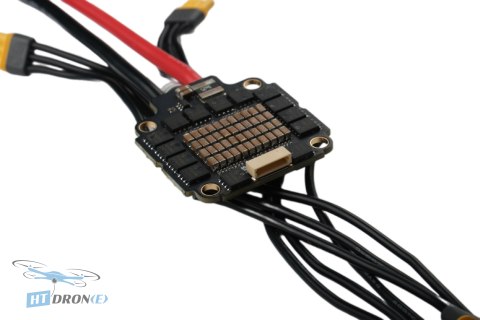

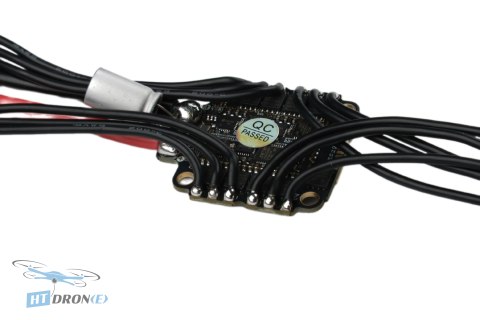

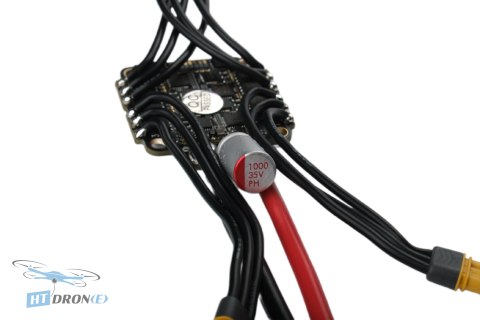

• Electronic Speed Controller (ESC - 3060 AM32)
  • Max Continuous Current: 60A x4
  • Max Burst Current: 70A x4
  • Input Voltage: 3-6S LiPo
  • ESC Protocol Support: Dshot300/Dshot600/PWM/Bi-directional Dshot
  • MCU: AT32F421K8U7
  • Built-in Ammeter: Supported
  • ESC Telemetry Support: Supported
  • Firmware: AM32_AT32PB4_540_F421_2.12.hex
  • Weight: 13.9g
  • External Dimensions: 40mm x 40.7mm
  • Mounting Hole Spacing: M3 30.5mm x 30.5mm
• ELRS 915MHz Receiver
  • Frequency Band: 915MHz
  • Telemetry Power: 17dbm
  • Receiver Protocol: CRSF/SBUS, etc.
  • Input Voltage: +5V DC
  • PCB Size: 22mm x 14mm
  • Weight: 1.3g (without antenna)
  • Firmware: BATAFPV SuperD 900MHz RX
  • Connection: 4-pin cable
  • Antenna: T-shaped 915MHz antenna (148mm x 70mm)
  • Reception: Dual antenna for stable reception and anti-interference.

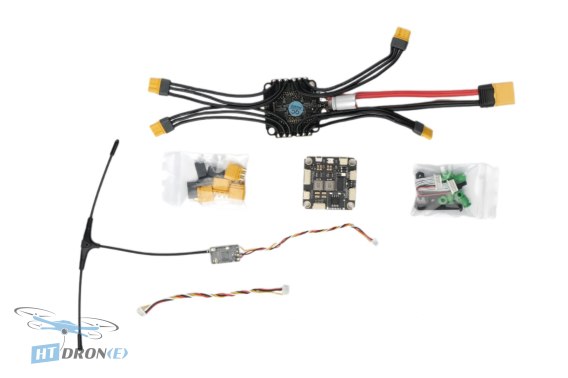

• Package Contents
  • F405 V3 Flight Control (with cables and capacitor)
  • 3060 AM32 60A ESC
  • 8PIN SH1.0 Connection Cable
  • ELRS915 Receiver (with 4-pin cable)
  • T-shaped 915MHz Antenna
  • 4x MR30 Male Motor Connectors
  • 3-pin Camera Cable
  • 6-pin VTX Cable
  • M3 Standoffs, Nuts, and Dampening Balls

Applications

This FPV stack is perfect for building custom racing drones, freestyle FPV quads, long-range exploration UAVs, and professional aerial platforms that require reliable and powerful flight control. The ELRS 915MHz receiver ensures excellent control link performance, making it suitable for demanding flight conditions.

Compatibility

Features a standard 30.5mm x 30.5mm mounting pattern, compatible with most FPV drone frames. Supports a wide array of receiver protocols, digital FPV system connections (DJI/Vista), and various camera/VTX setups via standard wiring. Powered by 3-6S LiPo batteries.

FAQ

What is the Pilotix DIY F405 FC + 60A ESC Stack with ELRS 915MHz Receiver?

This is an integrated FPV drone component that combines a flight controller (F405), a 4-in-1 Electronic Speed Controller (60A), and an ExpressLRS 915MHz receiver. It's designed to be the core electronics for building custom FPV drones.

What is the maximum input voltage for the ESC in this Pilotix stack?

The 3060 AM32 ESC within this Pilotix stack supports an input voltage range of 3-6S LiPo batteries, making it suitable for powerful FPV drone builds.

What are the mounting dimensions for the Pilotix F405 FC + 60A ESC Stack?

The Pilotix stack features a standard 30.5mm x 30.5mm mounting hole pattern, ensuring compatibility with most FPV drone frames.

Does this stack include the ELRS receiver and antenna?

Yes, the Pilotix DIY Stack with ELRS 915MHz includes the ELRS 915MHz receiver and a T-shaped 915MHz antenna, ready for long-range control setups.

Where can I buy the Pilotix F405 FC + 60A ESC Stack with fast delivery?

You can buy the Pilotix F405 FC + 60A ESC Stack with ELRS 915MHz Receiver at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL.
