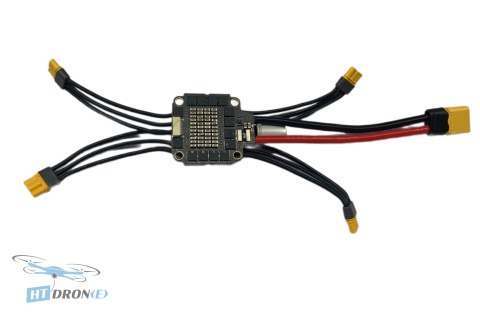

Pilotix DIY Kit F405V3 FC + 60A V4 ESC Stack for FPV Drones

Introduction

The Pilotix DIY Kit is a high-performance electronic speed controller (ESC) and flight controller (FC) stack designed for FPV drone enthusiasts and custom builders. This integrated solution combines the F405 V3 Flight Controller with a 60A V4 ESC, providing a solid foundation for powerful and reliable FPV builds. If you're looking to build or upgrade your drone with top-tier components, this stack offers excellent value and performance.

Key Advantages

• Integrated F405 V3 Flight Controller and 60A V4 ESC for a streamlined build.
• Powerful STM32F405RGT6 MCU for fast processing and stable flight.
• High-current 60A continuous rating with 70A burst for demanding motors.
• Supports multiple input signals including Dshot300, Dshot600, and PWM.
• Onboard 16MB Blackbox for flight logging and tuning.
• Built-in 5V/2.5A and 9V/2A BEC outputs for powering peripherals.
• Bluetooth support for easy configuration and telemetry.
• Robust construction designed for the rigors of FPV flight.

Technical Specifications

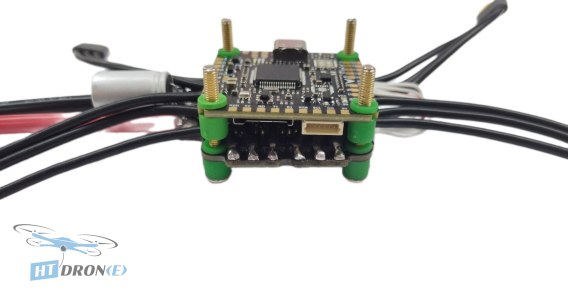

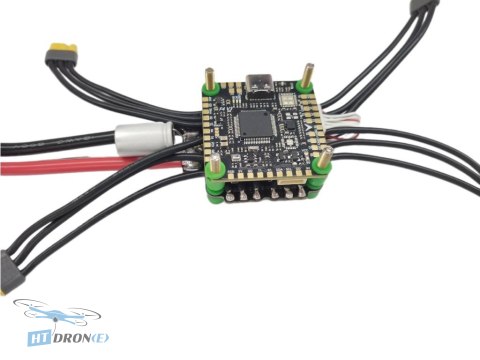

• Flight Controller (F405 V3 FC)
  • MCU: STM32F405RGT6
  • Gyroscope: ICM42688
  • Barometer: SPL06B
  • Blackbox: 16MB
  • Motor Outputs: 8 channels
  • UARTs: 5 channels
  • BEC Output: 5V/2.5A, 9V/2A
  • OSD: Supported
  • Bluetooth: Supported
  • Weight: 9.6g
  • Dimensions: 36mm x 36mm
  • Mounting Hole Pattern: 30.5mm x 30.5mm
  • Firmware Name: AOCODAF405V3

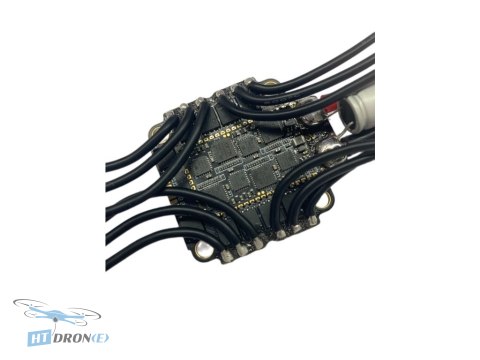

• Electronic Speed Controller (60A V4 ESC)
  • Continuous Current: 60A x 4
  • Burst Current: 70A x 4
  • Input Signal: Dshot300, Dshot600, PWM, Bi-directional Dshot
  • Telemetry: Supported
  • Current Meter: Supported
  • Input Voltage: 3-6S LiPo
  • Firmware Name: AM32 AORC AT421A
  • Operating Temperature: -20°C to +85°C
  • Operating Humidity: 20% to 95%
  • Storage Temperature: -20°C to +70°C
  • Mounting Hole: M3, 30.5mm x 30.5mm
  • Weight: 13.9g
  • Dimensions: 41mm x 44.5mm

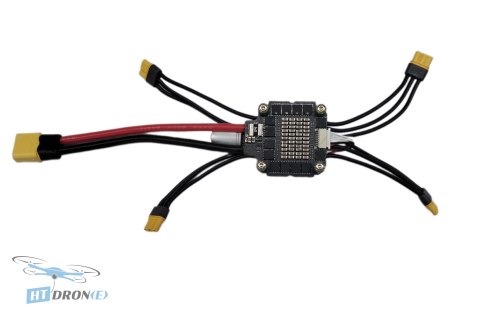

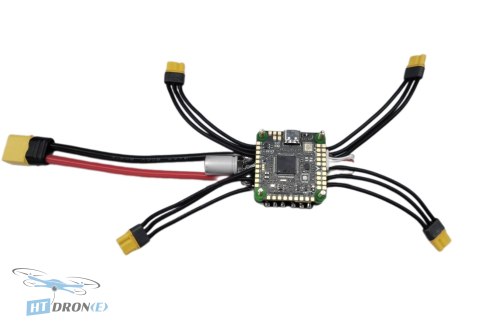

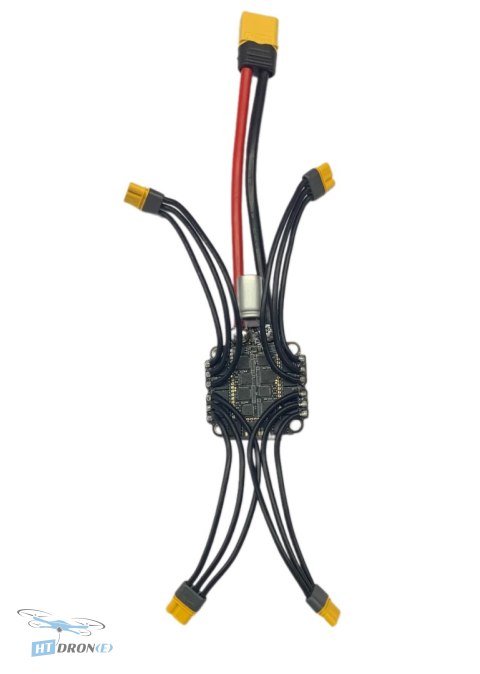

  • Included in package: 4 motor cables, 1 power cable, 1 capacitor

Applications

This Pilotix stack is perfect for building high-performance FPV racing drones, freestyle quads, and professional UAV platforms that require reliable power and precise flight control. It's suitable for builds using 3S to 6S LiPo batteries.

Compatibility

The stack features a standard 30.5mm x 30.5mm mounting pattern, compatible with most FPV drone frames. It supports a wide range of input signals for maximum flexibility. The included BEC outputs provide stable power for your flight controller, FPV camera, and other onboard electronics.

FAQ

What is the Pilotix DIY Kit F405V3 FC + 60A ESC V4 stack?

The Pilotix DIY Kit is an integrated flight controller (FC) and electronic speed controller (ESC) stack designed for FPV drones. It combines the F405 V3 FC with a 60A V4 ESC, offering a powerful and compact solution for custom drone builds. You can buy this essential FPV component at HTDRONE.

What are the key technical specifications of the Pilotix F405V3 FC?

The F405 V3 FC features an STM32F405RGT6 MCU, ICM42688 gyroscope, SPL06B barometer, and 16MB of Blackbox memory. It supports 8 motor outputs, 5 UARTs, has onboard OSD, and Bluetooth connectivity, with 5V/2.5A and 9V/2A BEC outputs.

What is the current rating and input voltage for the Pilotix 60A ESC V4?

The 60A V4 ESC offers a continuous current of 60A per motor (x4) and a burst current of 70A per motor (x4). It is compatible with 3-6S LiPo batteries, making it suitable for a wide range of FPV applications.

What kind of FPV drones is this Pilotix stack suitable for?

This Pilotix stack is ideal for building high-performance FPV racing drones, freestyle quads, and custom UAV platforms. Its robust specifications and integrated design make it a great choice for demanding flight conditions.

Where can I buy the Pilotix F405V3 FC + 60A ESC V4 stack and what are the delivery options?

You can order the Pilotix F405V3 FC + 60A ESC V4 stack directly from the HTDRONE shop. We offer fast international delivery via DHL for customers worldwide. Check our store for the best deals and reliable shipping.
