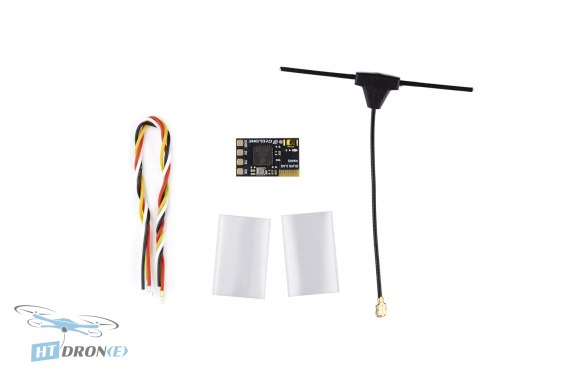

Pilotix ELRS 2.4G Nano Receiver with T-antenna PNP for FPV Drones

Introduction

The Pilotix ELRS 2.4GHz Nano Receiver is a cutting-edge component engineered for the demanding world of FPV drones and remote-controlled applications. It leverages the ExpressLRS protocol to deliver superior performance, making it an excellent choice for pilots seeking reliable, long-range control with minimal delay. This receiver is built for enthusiasts and racers who demand precision and stability in their equipment.

Key advantages

• High-performance ExpressLRS (ELRS) system for reliable control
• Exceptional long-range capabilities for extended flight operations
• Ultra-low latency for precise and responsive flight control
• Stable telemetry feedback for real-time flight data
• Lightweight design (0.6g) to minimize impact on drone performance
• Compact dimensions (11mm x 18mm x 3mm) for easy integration into small builds
• Equipped with ESP8285 MCU and SX1281 RF chip for efficient signal processing
• IPEX1 antenna connector for secure and easy antenna attachment

Technical specifications

• MCU: ESP8285
• RF Chip: SX1281
• Telemetry Power: 20dBm
• Operating Voltage: 5V
• Weight: 0.6 g (receiver only)
• Dimensions: 11mm x 18mm x 3mm
• Antenna Connector: IPEX1

Applications

This Pilotix ELRS Nano receiver is perfectly suited for a wide range of applications including FPV racing drones, freestyle quads, long-range FPV setups, and other RC aircraft requiring a robust and low-latency control link. Its compact size and light weight make it ideal for smaller builds where space and weight are critical factors.

Compatibility

The receiver operates on a 5V supply voltage and features an IPEX1 antenna connector. It is designed to work seamlessly within the ExpressLRS ecosystem. For detailed documentation, please inquire about documentation.

FAQ

What is the Pilotix ELRS 2.4G Nano Receiver designed for?

The Pilotix ELRS 2.4G Nano Receiver is specifically designed for FPV drones and remote-controlled applications utilizing the ExpressLRS (ELRS) protocol. It offers excellent long-range capabilities, low latency, and reliable telemetry feedback for FPV racing and freestyle flying.

What are the key technical specifications of the Pilotix ELRS Nano Receiver?

This receiver features an ESP8285 MCU and an SX1281 RF chip, operates at 5V, provides 20dBm telemetry power, and weighs only 0.6g. Its dimensions are 11mm x 18mm x 3mm, and it uses an IPEX1 antenna connector.

Is this receiver suitable for long-range FPV flights?

Yes, the Pilotix ELRS 2.4G Nano Receiver is built for long-range performance thanks to the ExpressLRS protocol. It ensures a stable and reliable connection over extended distances, making it ideal for exploration and long-distance FPV flights.

Where can I buy the Pilotix ELRS 2.4G Nano Receiver with fast delivery?

You can order the Pilotix ELRS 2.4G Nano Receiver at HTDRONE, a specialized FPV drone parts store based in Poland. We offer fast delivery within Poland and reliable international shipping via DHL to ensure you receive your parts quickly.

What is the advantage of the Nano size and low weight?

The Nano size (11mm x 18mm x 3mm) and ultra-low weight (0.6g) of this receiver are crucial for FPV drones, especially smaller builds or racing quads. This minimizes the impact on the drone's overall weight and balance, contributing to better flight performance and agility.
