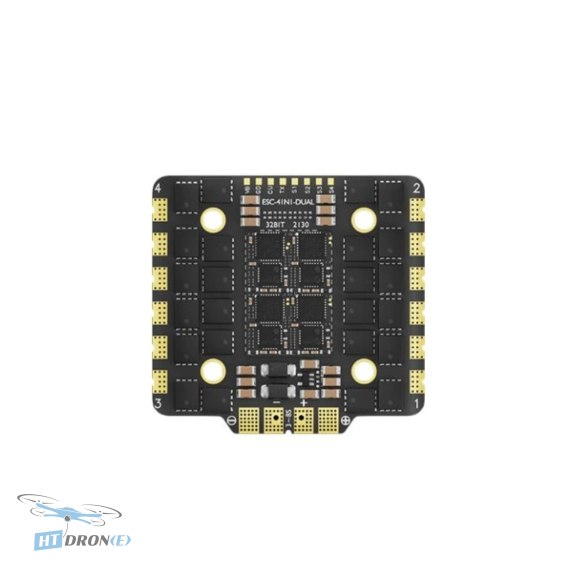

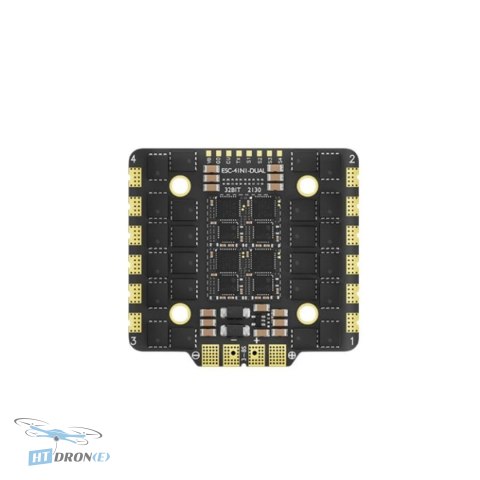

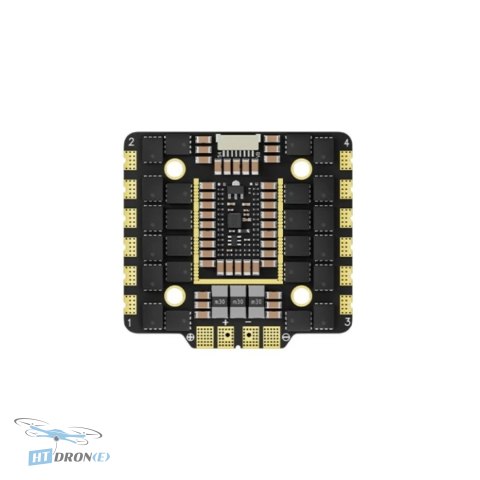

Pilotix ESC 4in1 100A AM32 Lite - High-Performance FPV Drone Speed Controller

Introduction

The Pilotix AM32 Lite is a high-performance 4-in-1 ESC designed for demanding FPV drones and advanced RC projects. Built around a powerful 32-bit ARM® Cortex®-M4 MCU operating at 120 MHz, this controller ensures lightning-fast processing and efficient handling of flight commands, making it an excellent upgrade for serious drone enthusiasts. Whether you're building a custom FPV racer or a powerful aerial platform, the Pilotix AM32 Lite provides the reliability and performance you need.

Key advantages

• Integrated Amperage Meter & Telemetry: Monitor your power consumption and receive real-time data during flights for optimal performance tuning.
• High Current Capacity: Supports a continuous 100A per motor and a peak of 120A, ideal for high-power drone configurations.
• Wide Voltage Range: Operates from DC 12V to 33V, making it compatible with 3S to 8S Lipo batteries.
• Versatile Signal Compatibility: Works seamlessly with 150/300/600, Multishot, OneShot, Proshot, PWM, and other popular signal protocols.
• Compact and Lightweight Design: Weighing only 33g and measuring 55mm x 52mm, it fits perfectly into tight builds without adding unnecessary bulk.
• Durable Construction: Designed to withstand humidity levels from 20-95%, ensuring reliable operation even in challenging environmental conditions.
• Advanced Processing Power: Features a 32-bit ARM® Cortex®-M4 MCU running at 120MHz for superior control and responsiveness.

Technical specifications

• Firmware: AM32_AORC_K_A_F421_2.16.hex
• Built-in Amperometer: Supported
• Max Continuous Current: 100A x 4
• Max Burst Current: 120A x 4
• MCU: 32-bit ARM® Cortex®-M4 120MHz
• Telemetry: Supported
• Input Voltage: DC 12V-33V (3-8S Lipo)
• Operating Humidity: 20-95%
• Mounting Hole: M3 30.5mm x 30.5mm
• Dimensions: 55mm x 52mm
• Weight: 33g
• Input Signal: 150/300/600 & Multishot/OneShot/Proshot/PWM etc.

Applications

This ESC is ideal for high-performance FPV racing drones, freestyle quads, professional UAV platforms, and custom RC projects requiring robust power handling and real-time feedback. Its versatility makes it suitable for a wide range of demanding aerial applications.

Compatibility

The Pilotix AM32 Lite is compatible with 3S-8S Lipo batteries, offering flexibility for various power setups. It supports a wide array of input signals including 150/300/600, Multishot, OneShot, Proshot, and PWM. The standard 30.5mm x 30.5mm mounting pattern ensures easy integration into most FPV and drone frames.

FAQ

What is the Pilotix ESC 4in1 100A AM32 Lite?

The Pilotix ESC 4in1 100A AM32 Lite is a high-performance Electronic Speed Controller designed for FPV drones and RC projects. It features a 32-bit ARM Cortex-M4 MCU, 100A continuous current rating, and integrated telemetry support.

What is the maximum current handling of this ESC?

This ESC supports a maximum continuous current of 100A per motor and a peak burst current of 120A per motor, making it suitable for powerful drone builds.

What battery voltages is the Pilotix AM32 Lite compatible with?

The Pilotix AM32 Lite is compatible with a wide input voltage range of DC 12V to 33V, which corresponds to 3S to 8S Lipo batteries.

Does the ESC support telemetry?

Yes, the Pilotix AM32 Lite features built-in telemetry support, allowing you to monitor key flight data such as power consumption in real-time.

Where can I buy the Pilotix ESC 4in1 100A AM32 Lite with fast delivery?

You can order the Pilotix ESC 4in1 100A AM32 Lite directly from the HTDRONE store. We are based in Poland and offer fast shipping within Poland and reliable worldwide delivery via DHL.
