Pilotix AM32 80A Single ESC 32-bit ARM Cortex-M4 for FPV Drones

Introduction

The Pilotix 32-bit AM32 Single ESC is a high-performance electronic speed controller engineered for the most demanding FPV and UAV applications. It delivers stable and precise power, ensuring your drone responds instantly to your commands, even under extreme load. This ESC is built for pilots who require top-tier reliability and performance.

Key Advantages

• High Continuous Current: Handles 80A continuous current, perfect for powerful setups.
• High Burst Current: Supports up to 90A burst for intense maneuvers and acceleration.
• Advanced 32-bit Architecture: Features an ARM Cortex-M4 core for faster response times and enhanced precision.
• Wide Input Voltage Range: Compatible with 4-8S LiPo batteries (14-33.6V).

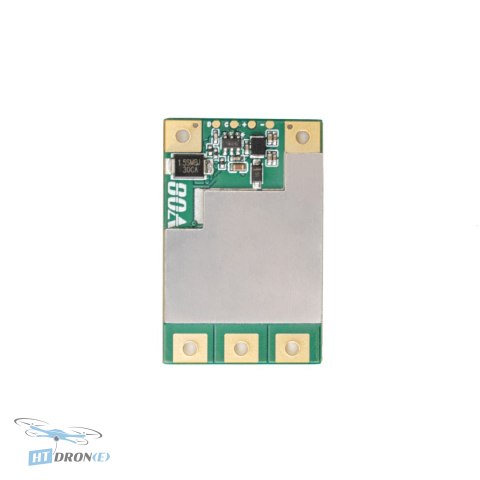

• Durable Construction: Built on a 6-layer PCB with 3 OZ copper thickness for efficient heat dissipation and durability.
• Versatile Protocol Support: Compatible with DShot150/300/600, MultiShot, and OneShot protocols.
• Optimized Firmware Options: Supports HF32 firmware for flight stabilization and AM32 for specific applications.

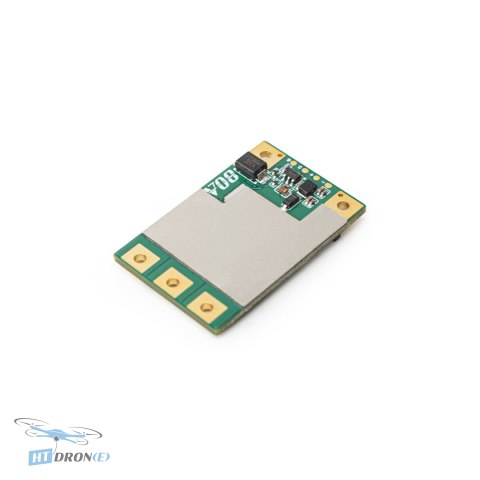

• Compact Size: Measuring just 37x24mm, it fits easily into most FPV drone frames.

Technical Specifications

• Model Name: Pilotix AM32 single ESC

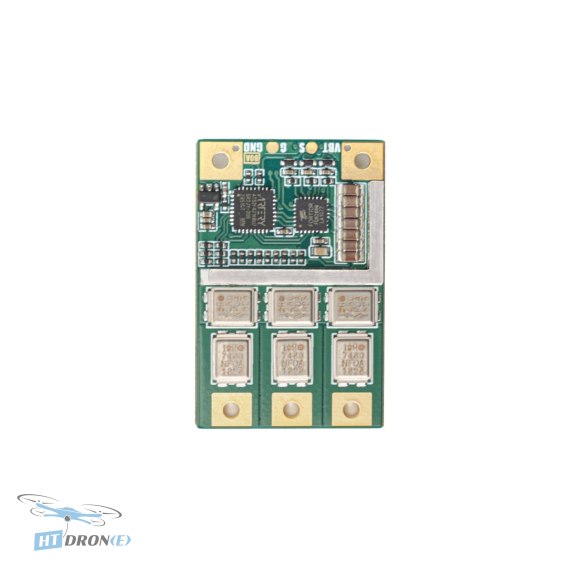

• MCU: AT32F421
• Core: ARM ® Cortex ® - M4
• Input Voltage: 4-8S (14-33.6V)
• Operating Temperature: -40℃ to 90℃
• Continuous Current: 80A
• Burst Current: 90A
• Continuous Power: 1900W
• Peak Power: 2100W
• Current Sensor: No
• Telemetry: No
• Bi-directional Dshot: Supported
• ESC Firmware: HF32
• ESC Protocol: DShot150/300/600/MultiShot/OneShot etc. (PWM not supported)
• Dimensions: 37x24mm
• PCB: 6-layer PCB with 3 OZ copper thickness
• Configuration Tool: https://hf32.neutron-rc.com/

Important Notes:
1. Adequate heat dissipation is required for high-current operation.
2. Switching from HF32 firmware back to AM32 firmware requires an ATlink parameter tuner.
3. AM32 firmware is more suitable for RC crawlers, while HF32 firmware is better suited for fixed-wing and multi-rotor aircraft.

Applications

This ESC is designed for high-performance FPV racing drones, freestyle quadcopters, and demanding UAV applications. Its robust power handling and precise control make it suitable for both competitive racing and professional aerial cinematography where reliability is paramount.

Compatibility

The Pilotix AM32 ESC is compatible with 4-8S LiPo batteries (14-33.6V) and supports DShot150/300/600, MultiShot, and OneShot protocols. Ensure your flight controller and motor setup are compatible with these specifications. The firmware can be configured for different aircraft types.

FAQ

What is the Pilotix AM32 80A Single ESC best suited for?

The Pilotix AM32 80A Single ESC is ideal for high-performance FPV racing drones and freestyle quadcopters. Its robust power delivery and precise control make it suitable for demanding aerial applications where reliability and speed are critical.

What is the maximum current this ESC can handle?

This ESC can handle a continuous current of 80A and a burst current of up to 90A. This allows for aggressive maneuvers and ensures stable power delivery even under heavy load.

What input voltage range does the Pilotix AM32 ESC support?

The Pilotix AM32 ESC supports a wide input voltage range of 4-8S LiPo batteries, which translates to 14-33.6V. This makes it compatible with a variety of power setups for different drone builds.

Does the Pilotix AM32 ESC support telemetry?

No, the Pilotix AM32 ESC does not feature telemetry. It supports bi-directional DShot for precise control and feedback, but does not transmit telemetry data.
