Pilotix F405 65A V1 AIO Flight Controller & ESC - Premium FPV Drone Part

Introduction

The Pilotix F405 65A V1 AIO represents a flagship, European-engineered solution for FPV drone enthusiasts. This integrated unit masterfully combines a Flight Controller (FC) and an Electronic Speed Controller (ESC) onto a single, high-performance board. It's designed to streamline your build process while delivering exceptional thermal management and advanced flight capabilities, making it a top choice for serious FPV pilots.

Key advantages

• Integrated 2-in-1 Design: Combines FC and ESC on one board for superior heat dissipation, reducing overheating risks and component failures.

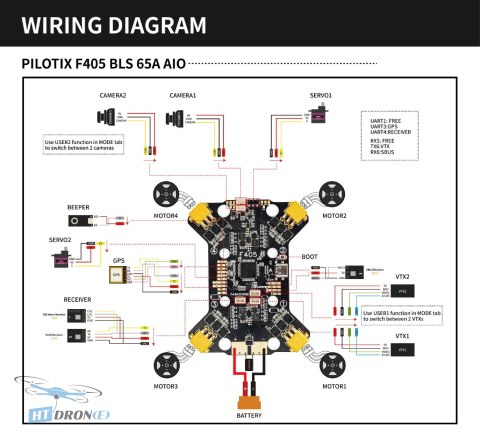

• Dual VTX Switching: Seamlessly switch between two connected video transmitters for optimized video transmission in any scenario.
• Dual Camera Support: Install two FPV cameras simultaneously (e.g., day and thermal) for 24/7 visibility and reliable visual control in all conditions.
• True Diversity RX Support: Enhance signal reception by connecting two receivers, significantly boosting control system reliability.
• Effortless Installation: Features pre-soldered connections, ideal for quick DIY builds and minimizing installation errors.
• Extensive Peripheral Connectivity: Equipped with ample UART ports for connecting GPS, telemetry, and other sensors to expand system functionality.
• High Power Output: Handles up to 65A continuous current, providing ample power for large FPV drones (7-13 inch frames).
• Built for Performance: Powered by STM32F405 MCU and utilizing BLHeli_S/Bluejay ESC firmware for smooth and responsive control.

Technical specifications

• MCU: STM32F405
• GYRO: ICM42688P
• OSD: AT7456E
• Barometer: SPL06
• Blackbox: 16M memory
• UARTs: 5 sets
• ESC Signal: 8 sets
• BEC 5V: 2.2A
• BEC 12V: 2.2A
• TVS Protection: Yes
• Firmware: Betaflight
• CURR: Yes
• Current: 65A
• Peak Current: 75A
• Input: 3-6S (3-8S version also available)
• ESC Firmware: BLHeli_S/Bluejay
• Protocol: PWM/Oneshot/DShot 150/300/600/MultiShot
• Mounting: 30.5x30.5mm/M3
• Size: 79x100mm

Applications

This AIO board is perfectly suited for high-performance FPV drones, including racing quads, freestyle builds, and larger cinematic platforms requiring significant power and advanced control. Its dual camera and VTX capabilities also make it excellent for inspection drones or any application demanding enhanced visual data and reliability.

Compatibility

Note: The Pilotix F405 65A V1 AIO is exclusively compatible with Pilotix PT V3 series frames. It supports 3-6S LiPo batteries (with a 3-8S version also available) and utilizes standard ESC protocols like PWM, Oneshot, and DShot.

FAQ

What is the Pilotix F405 65A V1 AIO and who is it for?

The Pilotix F405 65A V1 AIO is an integrated flight controller and ESC board designed in Europe. It's ideal for FPV drone builders and pilots looking for a high-performance, space-saving solution with robust power delivery and advanced features like dual camera and VTX support.

What are the key advantages of the Pilotix F405 65A V1 AIO?

Key advantages include its integrated 2-in-1 design for better heat management, support for dual VTX and dual cameras for enhanced visual capabilities, true diversity RX adapter compatibility for improved signal reliability, and ease of installation with pre-soldered connections.

What is the maximum current rating for the Pilotix F405 65A V1 AIO?

This AIO board supports a continuous current of 65A and a peak current of 75A. It is designed to provide ample power for larger FPV drones, typically in the 7 to 13-inch size range.

What FPV drone frames is the Pilotix F405 65A V1 AIO compatible with?

The Pilotix F405 65A V1 AIO is specifically designed for compatibility ONLY with Pilotix PT V3 series frames. Ensure you are using a compatible frame for proper installation and function.
