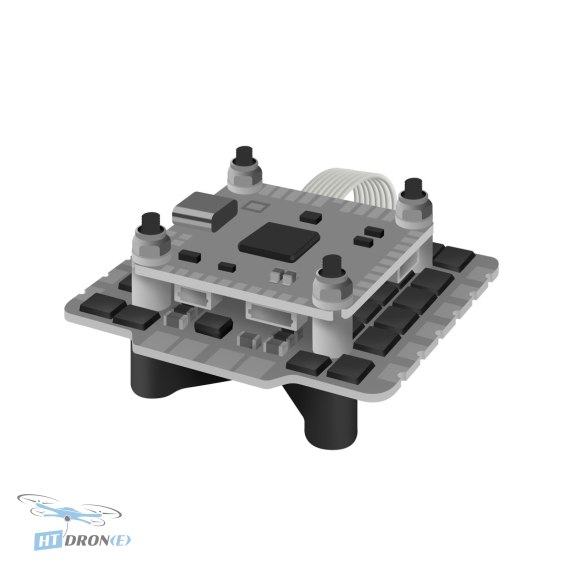

Pilotix F405 V3 ICM42688 AM32 80A CZ Stack - High-Performance FPV Drone Flight Controller and ESC Combo
Elevate your FPV experience with the Pilotix F405 V3 ICM42688 AM32 80A CZ Stack. This EU-made flight control system combines a powerful F405 V3 flight controller with an 80A AM32 4-in-1 ESC, delivering exceptional stability and responsiveness. Ideal for both freestyle and long-range builds, it supports 3S-8S LiPo batteries and offers ultra-responsive flight performance. Check out this top-tier combo for your next drone build at HTDRONE.
| Enter your email |
| Reviews | |
| Price of consignment | 35 |
| The Availability Of |
|
| The bar code | |
| EAN | 5061099730358 |
| Leave your phone |
Introduction
The Pilotix F405 V3 ICM42688 AM32 80A CZ Stack is a high-performance flight control system designed and manufactured in the EU for demanding FPV and professional drone applications. It seamlessly integrates the precise control of the F405 V3 flight controller with the robust power of an 80A AM32 4-in-1 ESC. This powerful combination ensures exceptional stability, responsiveness, and durability, making it perfect for both aggressive freestyle maneuvers and extended long-range flights. Experience smooth flight characteristics and consistent performance across 3S-8S LiPo battery systems.
Key Advantages
- Manufactured in the European Union, guaranteeing superior quality and reliability.
- Integrated 32-bit architecture for ultra-responsive and efficient flight control.
- High-precision ICM42688 gyroscope and SPL06B barometer for accurate motion and altitude data.
- Broad compatibility with Betaflight 4.5.0 and ArduPilot firmware for versatile applications.
- Dual BEC outputs (5V & 9V) provide clean, stable power for all your peripherals.
- AM32 ESC firmware offers real-time telemetry, current, and temperature monitoring.
- Supports a wide voltage range with 3S-8S LiPo battery compatibility.
- Dual camera input switching and extensive connectivity with 5 UART ports.
Technical Specifications
- FC Model: Pilotix F405 V3 ICM42688 CZ
- Max Frequency: 168 MHz
- MCU: STM32F405RGT6
- Gyroscope: ICM42688
- Barometer: SPL06B
- Firmware: Betaflight 4.5.0 (ArduPilot support)
- Telemetry: Supported
- OSD: Yes
- Blackbox: Built-in 16 MB
- UART: x5ch
- Motor Outputs: x8ch
- Additional Pinout: Sbus, x1 Led, x1 Bz, RSSI, I2C-SDA SCL, VTX, VCC

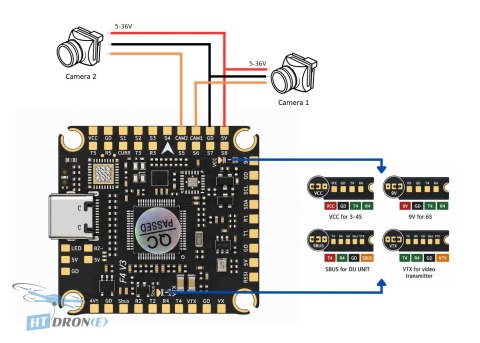

- Camera Pinout: x2 (Dual camera input switch)
- BEC: 5V/2.5A, 9V/2A
- USB: Type C
- FC Weight: 9.6 g
- FC Dimensions: 36 x 36 x 7 mm
- FC Mounting: 30.5 x 30.5 mm

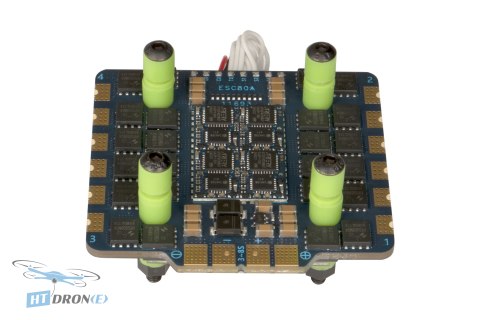

- ESC Model: Pilotix ESC AM32 80A 4w1
- ESC Firmware: AM32 2.16
- Continuous Current: 80Ax4
- Peak Burst Current: 100Ax4
- Input Signal: Dshot300, Dshot600, PWM, Bidirectional Dshot
- ESC Telemetry: Supported
- Current Meter: Yes
- Temperature Sensor: Yes
- Input Voltage: 8-36 V (3-8S LiPo)
- Battery Input Pads: Dual
- Battery Connector: XT90
- ESC to FC Cable: SH1.0 (8-pin)
- ESC Weight: 33 g
- ESC Dimensions: 55 x 52 mm
- ESC Mounting: M3 30.5 x 30.5 mm
Applications
This versatile stack is engineered for a wide range of applications, including high-performance FPV freestyle flying, long-range exploration drones, professional aerial photography platforms, and competitive FPV racing. Its robust design and advanced features ensure reliable operation in diverse flight conditions.
Compatibility
The Pilotix F405 V3 stack features a standard 30.5x30.5mm mounting pattern, making it compatible with most FPV drone frames. It supports a wide input voltage range of 8-36V (3S-8S LiPo) and offers flexible connectivity with 5 UART ports, dual camera inputs, and standard connections for Sbus, LED, buzzer, RSSI, I2C, VTX, and VCC. The XT90 battery connector is standard for high-current applications.
FAQ
What is the Pilotix F405 V3 ICM42688 AM32 80A CZ Stack?
The Pilotix F405 V3 ICM42688 AM32 80A CZ Stack is a high-performance, EU-made flight control system for FPV drones. It combines a Pilotix F405 V3 flight controller with an 80A AM32 4-in-1 ESC, offering advanced features for both freestyle and long-range applications.
What are the key technical specifications of the Pilotix F405 V3 FC?
The Pilotix F405 V3 FC features an STM32F405RGT6 MCU, ICM42688 gyroscope, SPL06B barometer, 16MB blackbox, 5 UART ports, dual camera inputs, and 5V/9V BEC outputs. It's designed for Betaflight 4.5.0 and ArduPilot.
What is the power handling capability of the AM32 ESC in this stack?
The Pilotix AM32 80A 4-in-1 ESC in this stack provides a continuous current of 80A per motor and a peak burst current of 100A per motor. It supports input voltages from 8V to 36V (3S-8S LiPo) and uses an XT90 connector.
Is this Pilotix stack suitable for advanced FPV builds?
Yes, the Pilotix F405 V3 stack is ideal for advanced builds due to its high-performance components, EU manufacturing quality, extensive connectivity options (5 UARTs, dual camera input), and support for popular firmware like Betaflight and ArduPilot. Its robust 80A ESC handles demanding setups.
Where can I buy the Pilotix F405 V3 ICM42688 AM32 80A CZ Stack and what are the shipping options?
You can buy the Pilotix F405 V3 ICM42688 AM32 80A CZ Stack directly from HTDRONE. We are based in Poland and offer fast shipping within Poland. For customers in Ukraine, we provide reliable delivery via Nova Poshta. International customers can benefit from fast worldwide shipping via DHL.
