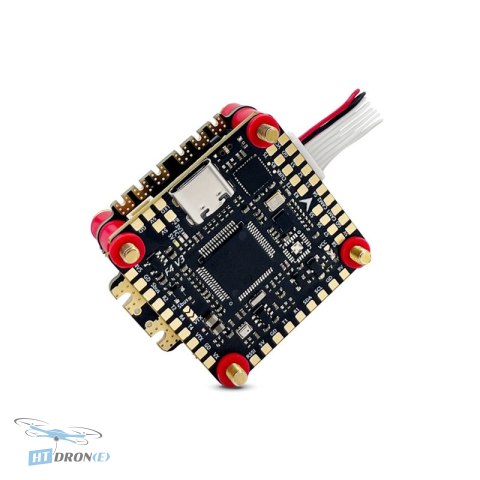

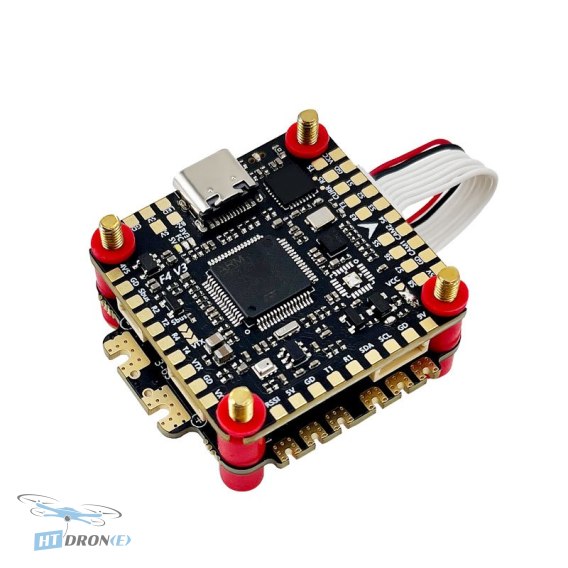

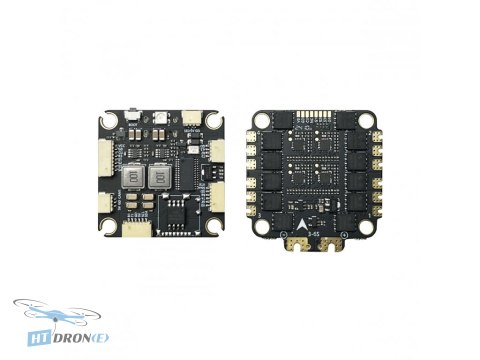

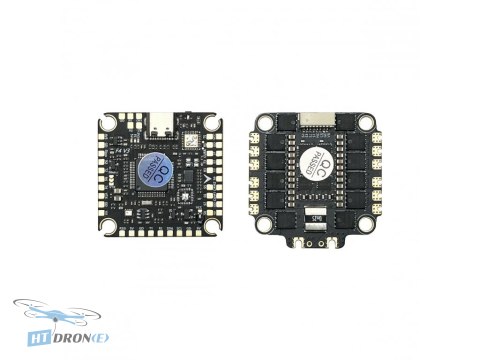

Pilotix F405 V3 ICM42688 BLS 60A Stack - High-Performance FPV Flight Controller and ESC Combo

Introduction

The Pilotix F405 V3 ICM42688 BLS 60A Stack is a cutting-edge flight controller (FC) and electronic speed controller (ESC) integrated unit designed for high-performance FPV and UAV applications. It combines a powerful F405 processor with a high-resolution ICM42688 gyroscope for exceptional flight stability and responsiveness. The integrated 60A BLS ESC ensures efficient power delivery to your motors, making it suitable for demanding builds that require speed and agility.

Key Advantages

• High-performance F405 MCU for rapid flight control processing.
• ICM42688 gyroscope for superior flight stabilization and accuracy.
• Robust 60A continuous current ESC for powerful motor control.
• Wide receiver protocol support including ELRS, CRSF, SBUS, and more.
• Integrated BlackBox with 16MB for flight data logging and analysis.
• Supports DJI/Vista Digital Sky and camera switching for advanced setups.
• Multiple power outputs (5V/2.5A, 9V/2A) for powering peripherals.
• Durable construction with a standard 30.5x30.5mm mounting pattern.

Technical Specifications

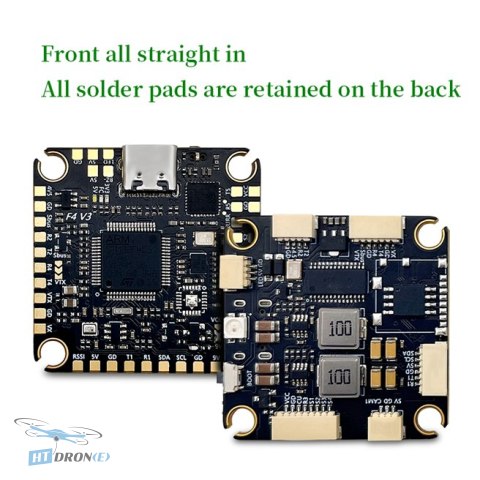

• FC Specifications:
• Processor: STM32F405RGT6
• Gyroscope: ICM42688
• Barometer: BMP280
• OSD: Supported
• BlackBox: 16MB

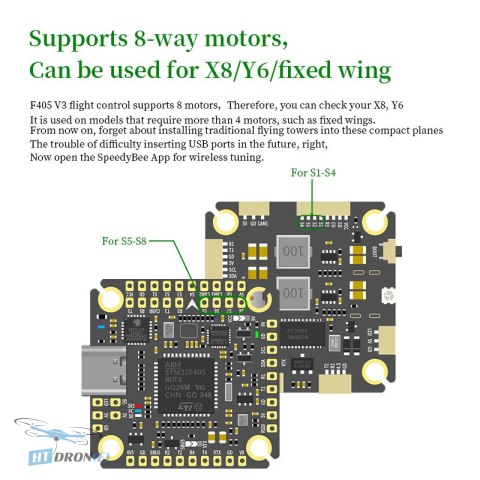

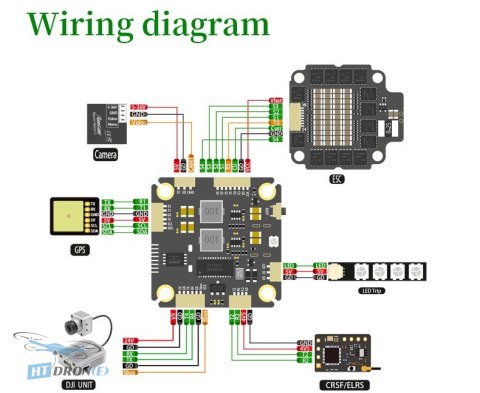

• Motor Output: 8-way optional
• LED Strip: Supported
• Buzzer: Supported
• Receiver Protocol: ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX
• UART Ports: 5-way optional
• Power Output: 5V/2.5A, 9V/2A
• USB Connector: Type-C
• DJI/Vista Digital Sky End: Supported
• Camera Switching: Supported
• Sbus and VTX Jumper: Supported
• 9V and VCC Jumper: Supported
• Bluetooth: Supported

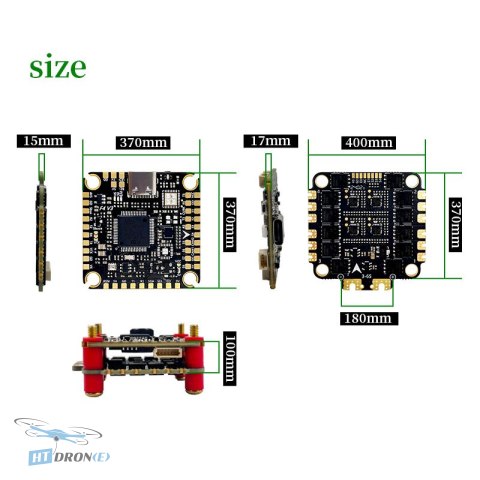

• FC Weight: 9.6g
• Mounting Hole: 30.5x30.5mm, M3
• FC Size: 36x36mm
• FC Firmware: Pilotix
• ESC Specifications:
• Continuous Current: 60A x4
• Burst Current: 70A x4
• Power Input: 3-6S Lipo
• Default Protocol: 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
• ESC Telemetry: No output
• Current Sensor: Supported
• ESC Firmware: Bluejay H-H50
• ESC Weight: 10.4g
• ESC Size: 40x40.7mm
• Mounting Hole: M3 30.5x30.5mm

Applications

This versatile stack is perfect for building high-performance FPV racing drones, freestyle quads, cinematic FPV setups, and custom UAV platforms. Its robust specifications cater to pilots demanding precise control, high power output, and reliable performance in competitive or professional aerial applications.

Compatibility

The Pilotix F405 V3 stack features a standard 30.5x30.5mm mounting pattern compatible with most FPV drone frames. It supports a wide array of receiver protocols including ELRS, CRSF, SBUS, and DSMX. It also offers seamless integration with DJI/Vista Digital Sky systems and includes support for camera and VTX switching.

FAQ

What is the Pilotix F405 V3 ICM42688 BLS 60A Stack?

The Pilotix F405 V3 ICM42688 BLS 60A Stack is an integrated flight controller and ESC unit designed for high-performance FPV drones. It offers precise flight control with its F405 processor and ICM42688 gyro, coupled with a powerful 60A ESC for demanding applications.

What receiver protocols does the Pilotix F405 V3 stack support?

This Pilotix stack supports a wide range of receiver protocols, including ELRS, CRSF, S.BUS, Frsky, Futaba, flysky, TBS Crossfire, and DSMX, ensuring broad compatibility with most modern FPV radio systems.

What are the key technical specifications of the ESC part?

The ESC section of the Pilotix F405 V3 stack provides 60A continuous current (70A burst) per motor, supports 3-6S LiPo batteries, and runs the Bluejay H-H50 firmware. It also features a current sensor.

Can this stack be used with DJI Digital FPV Systems?

Yes, the Pilotix F405 V3 stack explicitly supports DJI/Vista Digital Sky systems, making it an excellent choice for pilots looking to integrate high-definition digital video transmission into their FPV builds.

Where can I buy the Pilotix F405 V3 ICM42688 BLS 60A Stack with fast delivery?

You can buy the Pilotix F405 V3 ICM42688 BLS 60A Stack at HTDRONE, based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you get your FPV parts quickly.
