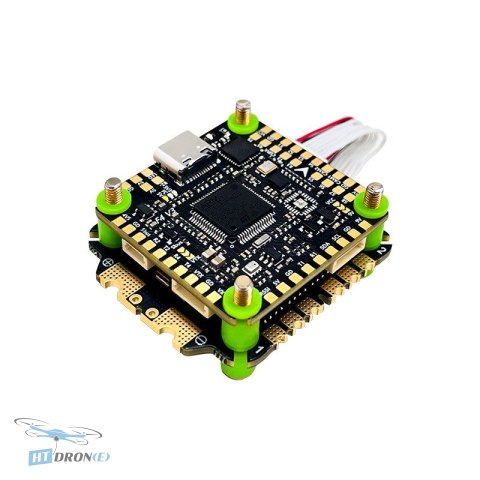

Pilotix F405 V3 ICM42688 BLS 75A FPV Flight Controller and ESC Stack

Introduction

The Pilotix F405 V3 ICM42688 BLS 75A stack is a premium flight control and electronic speed controller (ESC) solution designed for demanding FPV and UAV applications. This integrated system combines a powerful F405 V3 flight controller with a high-current 3075S ESC, offering exceptional performance, stability, and advanced features for drone builders and racers. Get the best performance for your custom build at HTDRONE.

Key Advantages

• High-performance STM32F405RGT6 flight controller for precise control.
• Powerful 75A continuous current ESCs for demanding setups.
• Integrated OSD, Black Box (16MB onboard or microSD), and buzzer support.
• Wide compatibility with major receiver protocols including ELRS, CRSF, SBUS, and more.
• Supports DJI/Vista digital video transmission and camera switching.
• Robust power output options (5V/2.5A, 9V/3A) for peripherals.
• Durable construction with standard 30.5x30.5mm mounting for easy integration.
• Includes both flight controller and ESC specifications for a complete system overview.

Technical Specifications

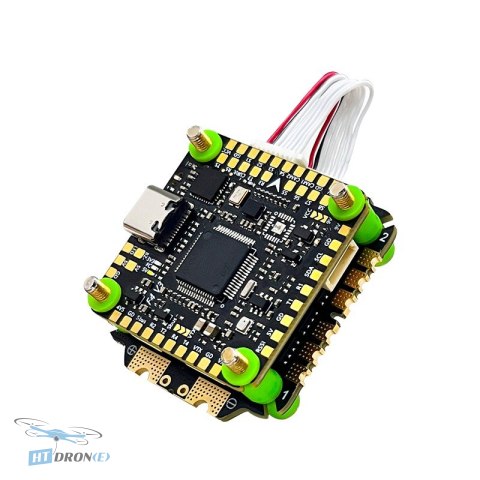

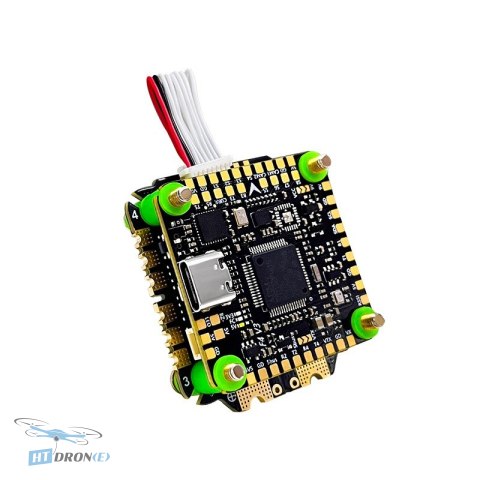

Pilotix F405 V3 Flight Controller

• Master Chip: STM32F405RGT6
• Gyroscope: ICM42688
• Barometer: SPL06
• On-Screen Display (OSD): Supported
• Black Box: 16 MB onboard or microSD support
• Motor Output Channels: 8CH
• LED Light Strip: Supported
• Buzzer: Supported
• Receiver Protocols: ELRS, CRSF, SBUS, FrSky, Futaba, Flysky, TBS Crossfire, DSMX
• Universal UART Ports: 5 optional
• Output Power: 5V/2.5A, 9V/3A
• USB Connector: Type-C
• DJI/Vista Digital Video Transmission: Supported
• Camera Switching: Supported
• USB and VTX Jumper Switching: Supported
• 9V and VCC Jumper Switching: Supported
• Weight: 9.6 g

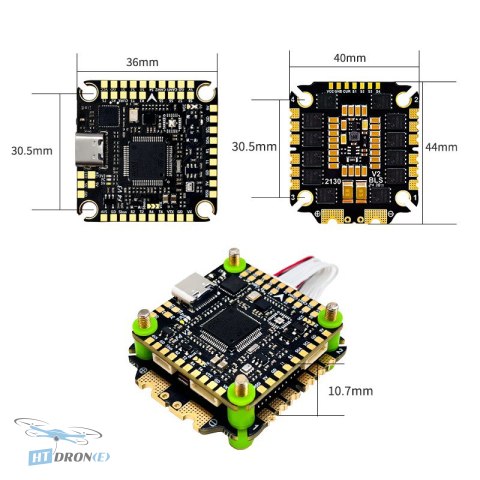

• Dimensions: 36mm x 36mm
• Mounting Hole Spacing: 30.5mm x 30.5mm
• Firmware Name: F405V3/F405V3SD

3075S Electronic Speed Controller (ESC)

• Continuous Max Current: 75A x 4
• Peak Continuous Current: 85A x 4
• Input Voltage: 3-6S LiPo
• ESC Protocols: 150/300/600/1200 & MultiShot, OneShot, Proshot, PWM, etc.
• MCU: EFM8BB51F16G
• Built-in Ammeter: Supported
• ESC Telemetry: Supported
• Firmware: BluejayD X 30 24 v0.21.1-RC1.hex
• Weight: 15.1g
• Dimensions: 40mm x 44mm
• Mounting Hole Spacing: M3, 30.5mm x 30.5mm

Applications

This Pilotix stack is perfect for building high-performance FPV racing drones, freestyle quads, professional UAVs, and custom aerial platforms. Its robust power delivery and advanced flight control capabilities make it suitable for aggressive flying and complex aerial tasks.

Compatibility

The F405 V3 flight controller supports a wide range of receiver protocols, including ELRS, CRSF, SBUS, and more. The ESC is compatible with 3-6S LiPo batteries and various ESC protocols. The standard 30.5x30.5mm mounting pattern ensures compatibility with most FPV drone frames. It also supports DJI/Vista digital FPV systems.

FAQ

What is the Pilotix F405 V3 ICM42688 BLS 75A stack suitable for?

The Pilotix F405 V3 ICM42688 BLS 75A stack is ideal for building high-performance FPV racing drones, freestyle quads, and custom UAVs. Its robust power handling and advanced flight control features make it perfect for demanding aerial applications.

What are the key technical specifications of the Pilotix F405 V3 flight controller?

The flight controller features an STM32F405RGT6 master chip, ICM42688 gyroscope, and SPL06 barometer. It supports OSD, 16MB Black Box, and a wide range of receiver protocols like ELRS, CRSF, and SBUS.

What is the maximum current rating of the Pilotix 3075S ESC?

The Pilotix 3075S ESC can handle a continuous maximum current of 75A per motor (4 motors total) and a peak continuous current of 85A per motor. It's designed for 3-6S LiPo batteries.

Does the Pilotix F405 V3 stack support digital FPV systems like DJI or Vista?

Yes, the Pilotix F405 V3 stack fully supports DJI/Vista digital video transmission and camera switching, making it an excellent choice for modern digital FPV builds.

Where can I buy the Pilotix F405 V3 ICM42688 BLS 75A stack with fast delivery?

You can buy the Pilotix F405 V3 ICM42688 BLS 75A stack at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you get your FPV parts quickly.
