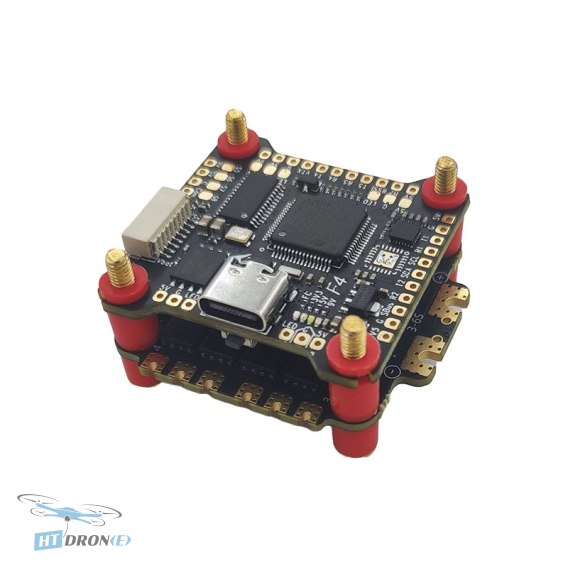

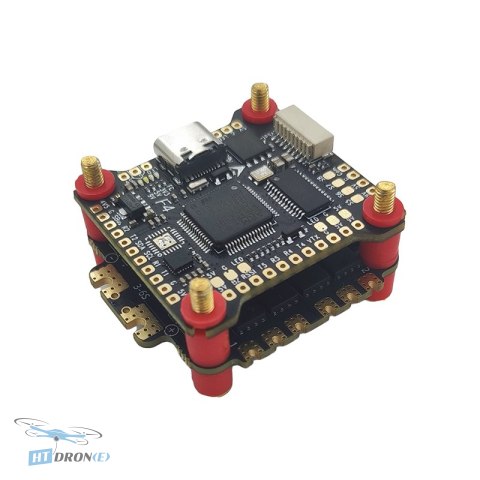

Pilotix F460 Stack F405V2 FC + 60A ESC for High-Performance FPV Drones

Introduction

The Pilotix F460 Stack is a cutting-edge integration of a flight controller (FC) and an electronic speed controller (ESC), meticulously engineered for high-performance FPV and UAV applications. This stack combines the advanced F405V2 Flight Controller with a potent 60A ESC, offering pilots unparalleled control, stability, and power for demanding aerial maneuvers. It's the perfect solution for drone enthusiasts looking to build or upgrade a powerful and responsive FPV machine.

Key Advantages

• High-performance F405V2 Flight Controller for rapid and precise flight control.
• Robust 60A ESC capable of handling high currents for powerful motors and props.
• Wide receiver protocol support including ELRS, CRSF, S.BUS, and more.
• Integrated support for DJI/Vista Digital FPV systems.
• Onboard 16MB BlackBox for flight data logging and analysis.
• Multiple UARTs for extensive peripheral connectivity.
• Compact 30.5x30.5mm mounting pattern for universal compatibility.
• Includes essential accessories for a straightforward installation.

Technical Specifications

• FC CPU: STM32F405RGT6
• FC Gyroscope: MPU6500
• FC Barometer: BMP280/DPS310
• FC OSD: Supported
• FC BEC Output: 5V/2.5A, 9V/2A
• FC BlackBox: 16MB
• FC Uarts: 5ch
• FC Light Strip Buzzer: Supported
• FC Receiver Protocol: ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX
• FC USB Connector: Type-C
• FC DJI/Vista Digital Sky End: Supported

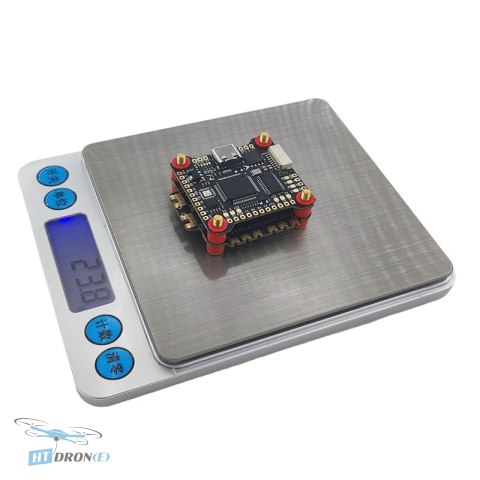

• FC Weight: 8.2g
• FC Mounting Hole: 30.5x30.5mm, M3
• FC Size: 36x36mm
• FC Firmware: AOCODARCF405V2MPU6500

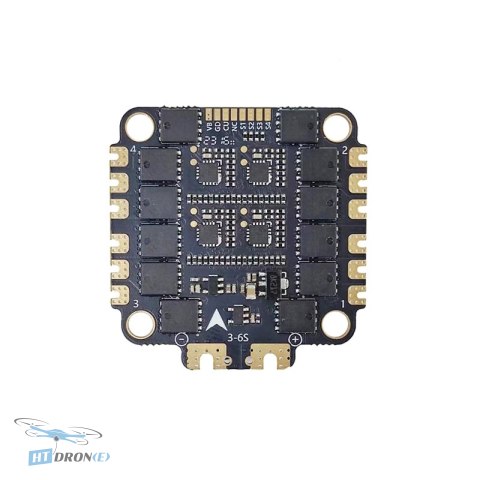

• ESC Continuous Current: 60A x4
• ESC Burst Current: 70A x4
• ESC Power Input: 3-6S Lipo
• ESC Default Protocol: 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
• ESC Telemetry: No output
• ESC Current Sensor: Supported
• ESC Firmware: Bluejay H-H50
• ESC Weight: 10.4g
• ESC Size: 40x40.7mm
• ESC Mounting Hole: M3 30.5x30.5mm

Applications

This FPV stack is perfectly suited for a wide range of applications including high-speed FPV racing, dynamic freestyle flying, professional UAV operations, aerial cinematography, and custom drone builds requiring robust power and control.

Compatibility

The Pilotix F460 Stack features a standard 30.5x30.5mm mounting pattern, ensuring compatibility with most FPV drone frames. It supports a broad array of receiver protocols, including modern ELRS and TBS Crossfire, as well as traditional S.BUS and DSMX. The integrated support for DJI/Vista digital FPV systems makes it a versatile choice for pilots using digital video transmission.

FAQ

What is the Pilotix F460 Stack and who is it for?

The Pilotix F460 Stack is an integrated flight controller (F405V2) and 60A ESC unit designed for high-performance FPV drones. It's ideal for experienced pilots involved in FPV racing, freestyle, or building custom high-power drones.

What are the main technical advantages of the F405V2 Flight Controller in this stack?

The F405V2 FC features an STM32F405RGT6 CPU for fast processing, an MPU6500 gyroscope for stable flight, 16MB of BlackBox memory for flight logging, and supports a wide range of receiver protocols including ELRS and CRSF, plus DJI/Vista digital FPV systems.

What is the power handling capability of the 60A ESC in the Pilotix F460 Stack?

The ESC provides a continuous current of 60A per motor, with a burst current of 70A per motor. It is designed to work with 3-6S LiPo batteries, offering robust power delivery for demanding FPV applications.

Does the Pilotix F460 Stack support digital FPV systems like DJI?

Yes, the Pilotix F460 Stack explicitly supports DJI/Vista Digital Sky End, making it a versatile choice for pilots utilizing these advanced digital FPV systems.

Where can I buy the Pilotix F460 Stack with reliable delivery?

You can order the Pilotix F460 Stack from HTDRONE, a specialized FPV drone parts store based in Poland. We offer fast worldwide shipping via DHL, ensuring you receive your components quickly for your next build or repair.
