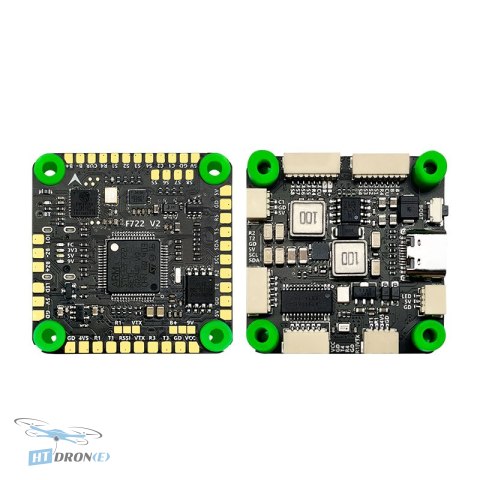

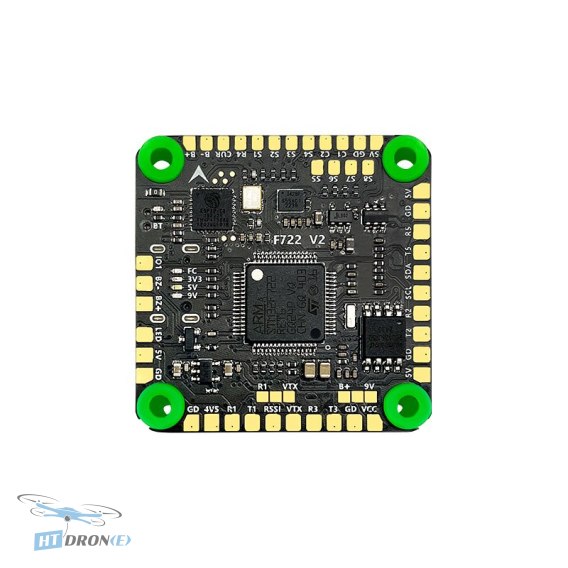

Pilotix F722 V2 Flight Controller - STM32F722RET6, ICM42688P Gyro for FPV Drones

Pilotix F722 V2 Flight Controller: The Ultimate FPV Core

The Pilotix F722 V2 Flight Controller is engineered for the demanding world of FPV drone piloting. Whether you're building a professional racing machine, a freestyle rig, or a custom UAV, this FC provides the processing power and sensor accuracy needed for peak performance. It's the perfect central unit for pilots seeking reliable flight control and extensive configuration options. Upgrade your drone with a flight controller that keeps pace with your skills.

Key Advantages

• High-Performance Processing: Equipped with a robust STM32F722RET6 CPU for lightning-fast calculations and smooth flight control.
• Advanced Stabilization: Features the sensitive ICM42688P gyroscope for precise and stable flight dynamics, even under stress.
• Onboard Data Logging: Includes 16MB of Blackbox memory to record crucial flight data for post-flight analysis and tuning.
• Integrated OSD: Built-in On-Screen Display functionality for real-time flight data directly in your FPV feed.
• Versatile Connectivity: Offers 5 UART channels and 8 motor outputs, providing ample room for expansion and various configurations.
• Comprehensive Receiver Support: Compatible with a wide range of protocols including ELRS, CRSF, S.BUS, Frsky, Futaba, Flysky, TBS Crossfire, and DSMX.
• Integrated Power Solutions: Multiple BEC outputs (4.5V/2A, 5V/2.5A, 9V/3A) to power your peripherals efficiently.

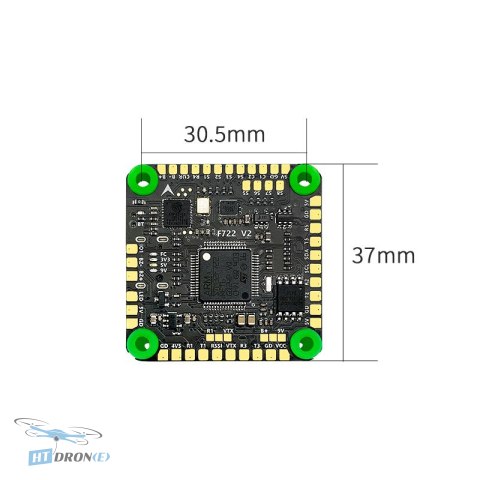

• Compact and Lightweight Design: Measuring 37mm x 37mm and weighing only 9.4g, it fits easily into most FPV drone frames with standard 30.5mm mounting.

Technical Specifications

• CPU: STM32F722RET6
• Gyro: ICM42688P
• Barometer: BMP280
• Black Box: 16MB
• OSD: Yes
• Motor Outputs: 8 channels
• UART: 5 channels
• LED Strip Support: Yes
• Buzzer Support: Yes
• BEC Output: 4.5V/2A, 5V/2.5A, 9V/3A
• Receiver Support: ELRS/CRSF/S.BUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX
• Dimensions: 37mm x 37mm
• Weight: 9.4g
• Mounting Holes: 30.5mm x 30.5mm
• Firmware: AOCODARCF722V2

Applications

This flight controller is ideal for high-performance FPV drones, including racing drones, freestyle quadcopters, and custom UAV builds. Its robust features make it suitable for demanding flight conditions, competitive racing, and intricate aerial maneuvers. Use it for building powerful, responsive FPV systems that require reliable flight control and extensive configuration options.

Compatibility and Mounting

The Pilotix F722 V2 features standard 30.5mm x 30.5mm mounting holes, ensuring compatibility with a wide range of FPV drone frames. It supports numerous receiver protocols, making it highly versatile for different radio systems. The multiple BEC outputs simplify power distribution to your components.

FAQ

What is the Pilotix F722 V2 Flight Controller best suited for?

The Pilotix F722 V2 Flight Controller is best suited for high-performance FPV drones, including racing and freestyle quadcopters. Its robust CPU, advanced gyro, and ample features make it ideal for pilots seeking precise control and extensive configuration options.

What are the key technical specifications of the Pilotix F722 V2?

Key specifications include an STM32F722RET6 CPU, ICM42688P Gyro, BMP280 Barometer, 16MB Blackbox, integrated OSD, 8 motor outputs, and 5 UART channels. It supports a wide range of receivers and features multiple BEC outputs.

Does the Pilotix F722 V2 support popular FPV receiver protocols?

Yes, the Pilotix F722 V2 offers broad compatibility with major FPV receiver protocols including ELRS, CRSF, S.BUS, Frsky, Futaba, Flysky, TBS Crossfire, and DSMX, ensuring flexibility for your setup.

Where can I buy the Pilotix F722 V2 flight controller with reliable delivery?

You can buy the Pilotix F722 V2 flight controller at HTDRONE. We offer fast shipping within Poland and worldwide delivery via DHL, ensuring you receive your order promptly.

What is the mounting pattern for the Pilotix F722 V2?

The Pilotix F722 V2 features standard 30.5mm x 30.5mm mounting holes, making it compatible with most FPV drone frames that utilize this common mounting pattern.
