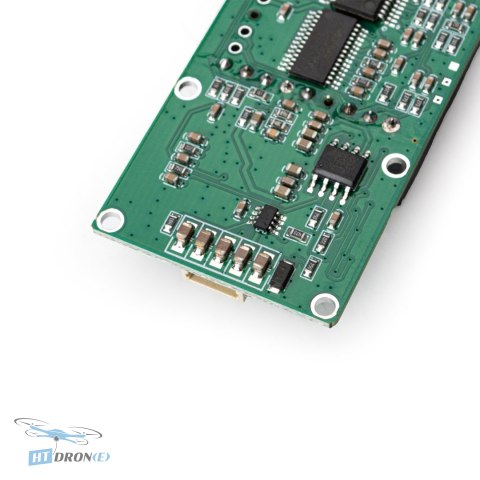

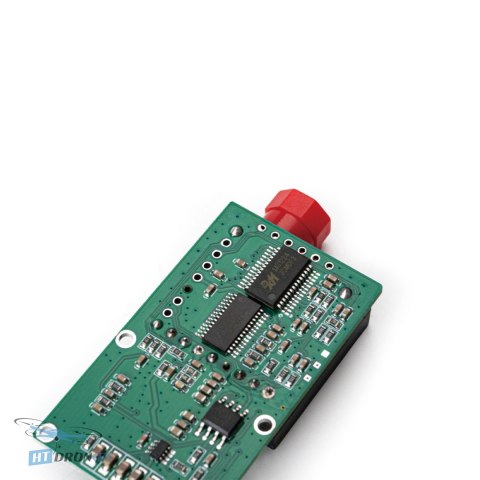

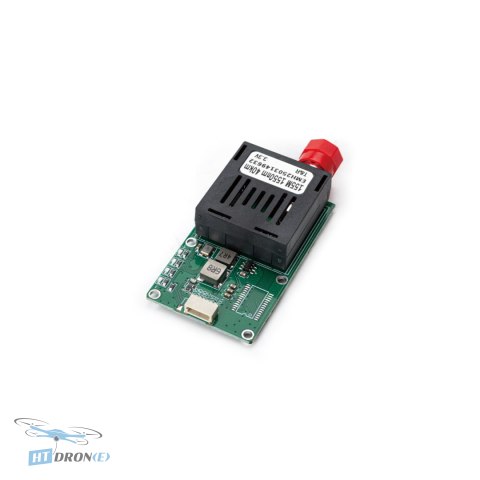

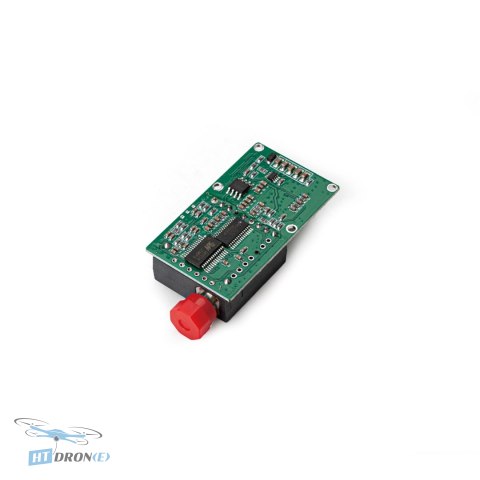

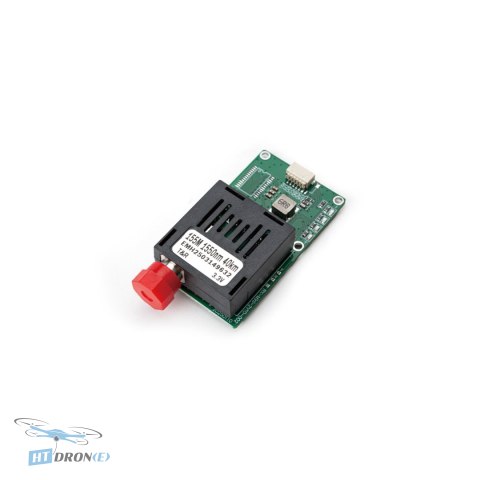

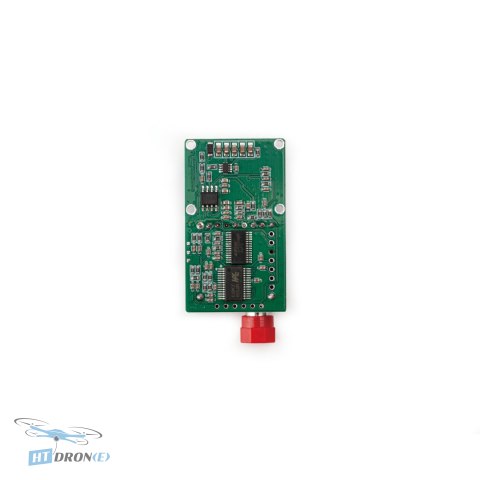

Pilotix Ground Station PCB 40km Single Mode Fiber Optic Transceiver for Drones and ROVs

Introduction

The Pilotix Ground Station PCB is a core component for advanced remote control systems, designed for seamless integration with the Pilotix fiber optic communication system. It provides a robust solution for stable, high-speed data transmission for drones, underwater ROVs, and ground robotic systems, especially in scenarios where radio communication is unreliable or impossible. This unhoused module offers maximum flexibility for custom installations and development.

Key Advantages

• Extended communication range up to 40km using single-mode fiber.
• Provides stable and fast data transmission, crucial for critical operations.
• Interference-free and low-latency connection for enhanced control.
• Dual-direction data transmission capabilities.
• Ideal for developers and integrators needing flexible mounting solutions.
• Supports NTSC/PAL/SECAM video formats.
• Compatible with TTL/SBUS data formats.
• Reliable performance even in challenging environments.

Technical Specifications

• Fiber Optic Interface: FC Interface
• Fiber Type: Single-Mode Fiber
• Data Interface: SH1.0
• Video Format: NTSC/PAL/SECAM
• Data Direction: Bi-directional
• Data Format: TTL/SBUS
• Speed: 0~1Mbps
• Single Mode Wavelength: 1550 (9/125μm)
• Transmission Range: Up to 40 km (Single-Mode Fiber)

Applications

This Pilotix PCB is perfect for a wide range of applications including long-range FPV drone operations, underwater ROV control, advanced ground robotics, industrial inspections, and any scenario requiring secure, high-bandwidth, and long-distance data links where traditional radio communication is insufficient.

Compatibility

Pilotix fiber optic communication modules are exclusively compatible with transceivers from the same series. We do not guarantee compatibility or assume responsibility for the proper functioning of devices from other series.

FAQ

What is the maximum reliable communication range for the Pilotix Ground Station PCB?

For reliable communication up to 9 km, a transceiver with a range up to 20 km is recommended. For distances between 10 km and 14 km, choose a transceiver with a range up to 40 km. For 15 km and beyond, up to 60 km range is recommended.

Is the Pilotix Ground Station PCB compatible with other brands or series?

No, Pilotix fiber optic communication modules are exclusively compatible with transceivers from the same series. Compatibility with other series is not guaranteed, and we are not responsible for their proper functioning.

What type of fiber optic cable does this module use?

This Pilotix Ground Station PCB utilizes single-mode fiber optic cable with a 1550nm wavelength (9/125μm) for its transmission up to 40 km.

What applications is the Pilotix Ground Station PCB suitable for?

It's ideal for drones, underwater ROVs, and ground robotic systems requiring stable, high-speed, low-latency, and interference-free data transmission, especially where radio communication is limited.
