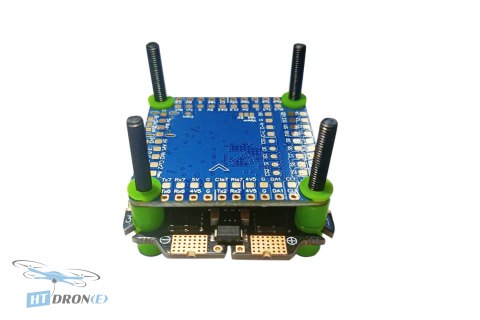

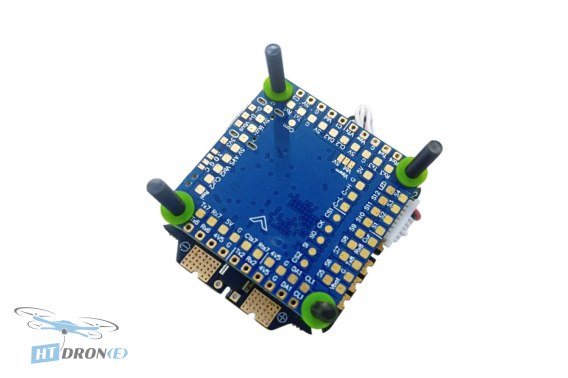

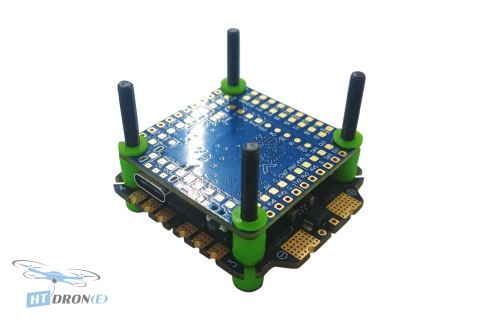

Pilotix H743-SLIM 3065 AM32 FPV Stack - High-Performance Flight Controller & ESC Combo

Introduction

The Pilotix H743-SLIM 3065 AM32 Stack is a high-performance, integrated flight control system engineered for advanced FPV drone applications. It combines the cutting-edge H743 flight controller, featuring a powerful STM32H743 microcontroller, with a robust 65A AM32 Electronic Speed Controller (ESC). This synergy provides exceptional flight precision, stable power output, and extensive expansion capabilities, making it the ideal choice for serious FPV enthusiasts building freestyle, racing, or long-range drones.

Key Advantages

• Powerful H7 Flight Controller: Experience smooth processing and future-proof performance with the advanced H7 series controller.
• Dual Firmware Support: Flexibility to run either ArduPilot for autonomous missions or Betaflight for freestyle and racing applications.
• Integrated Features: Built-in barometer, OSD, and CRSF protocol compatibility streamline your setup.
• Versatile Power Outputs: Multiple adjustable voltage outputs (5V, 9V, 3.3V) allow direct powering of various peripherals.
• High-Performance ESC: A robust 65A 4-in-1 ESC with AM32 firmware ensures reliable power delivery and supports telemetry.
• Enhanced Reliability: Comes with a solid capacitor, damping grommets, and heat shrink tubing for increased durability.
• Compact Mounting: Standard 30.5x30.5mm mounting pattern ensures easy integration into most FPV drone frames.

Technical Specifications

• Flight Controller (FC) Specifications:

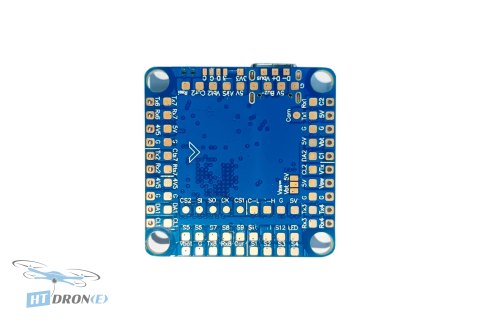

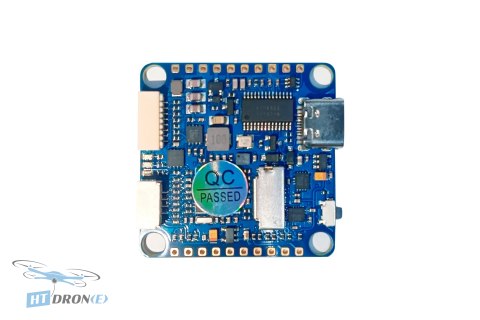

  • Model: H743-SLIM
  • IMU: ICM-42688-p
  • MCU: STM32H743VIH6
  • Barometer: DPS310XTSA1
  • OSD: AT7456E
  • Protocol: CRSF
  • Supported Firmware: ArduPilot and BetaFlight
  • Input Voltage: 6~36V (2~8S LiPo)
  • 5V BEC: 2A continuous (3A max)
  • 9V BEC: 2A continuous (3A max)
  • 3.3V LDO: Max 200mA
  • Built-in Current Sensor: No (VBAT ADC supports up to 69V via voltage divider)
  • Mounting: 30.5x30.5mm, φ4mm holes with φ3mm grommets
  • Dimensions: 36 x 36 x 5 mm
  • Weight: 7 g
• Electronic Speed Controller (ESC) Specifications:

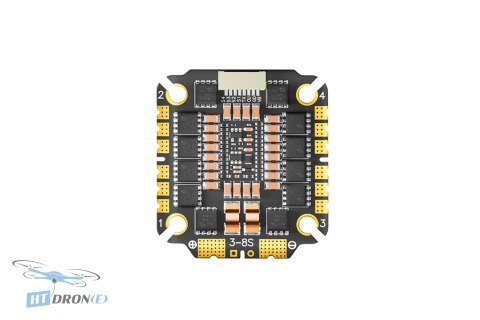

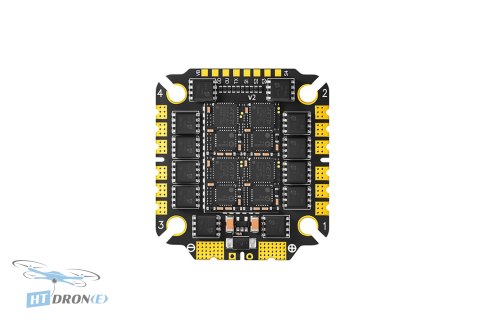

  • Model: 3065 AM32 ESC
  • Continuous Current: 65A x 4
  • Peak Burst Current: 75A x 4
  • Input Signal: DShot150/300/600 & MultiShot OneShot etc.
  • Telemetry: Supported
  • Current Meter: Supported
  • Input Voltage: 3-8S Lipo
  • Firmware: AM32
  • Operating Temperature: -20°C to +85°C
  • Operating Humidity: 20% to 95%
  • Storage Temperature: -20°C to +70°C
  • Mounting Hole: M3 30.5x30.5mm
  • Weight: 15.8 g
  • Dimensions: 44.5 x 40.5 mm

Applications

This FPV stack is perfectly suited for a wide range of aerial applications including high-performance FPV racing, dynamic freestyle flying, long-range exploration, and potentially custom UAV builds requiring robust flight control and power management.

Compatibility

The Pilotix H743-SLIM 3065 AM32 Stack features a standard 30.5x30.5mm mounting pattern compatible with most FPV drone frames. It supports 2-8S LiPo batteries and integrates seamlessly with CRSF receivers. Multiple BEC outputs (5V, 9V, 3.3V) are available for powering accessories like FPV cameras, VTXs, and GPS modules.

FAQ

What is the Pilotix H743-SLIM 3065 AM32 FPV Stack suitable for?

This FPV stack is designed for demanding FPV applications such as racing, freestyle, and long-range drones. Its powerful H7 flight controller and 65A AM32 ESC provide the performance and reliability needed for advanced aerial maneuvers and extended flight times.

What firmware options are available for the Pilotix H743-SLIM flight controller?

The Pilotix H743-SLIM flight controller supports both ArduPilot and Betaflight firmware. This flexibility allows you to choose the software that best suits your flying style, whether it's for precise autonomous missions with ArduPilot or agile freestyle and racing with Betaflight.

What are the key technical specifications of the Pilotix H743-SLIM 3065 AM32 stack?

The stack features an STM32H743VIH6 MCU on the H743-SLIM FC and a 65A continuous current rating on the 4-in-1 AM32 ESC. It supports 2-8S LiPo batteries, offers multiple BEC outputs (5V, 9V, 3.3V), and uses a standard 30.5x30.5mm mounting pattern.

Where can I buy the Pilotix H743-SLIM 3065 AM32 FPV Stack and what are the delivery options?

You can order the Pilotix H743-SLIM 3065 AM32 FPV Stack directly from HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL for international customers. Check our store for the best deals and delivery information.

Does the Pilotix H743-SLIM 3065 AM32 stack include a current sensor?

The Flight Controller (FC) board itself does not have a built-in current sensor. However, the ESC board does support a current meter, allowing you to monitor your drone's power consumption via telemetry if you configure it appropriately.
