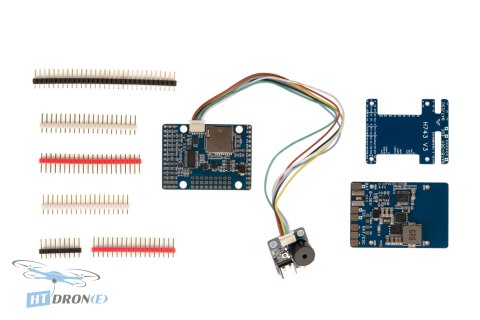

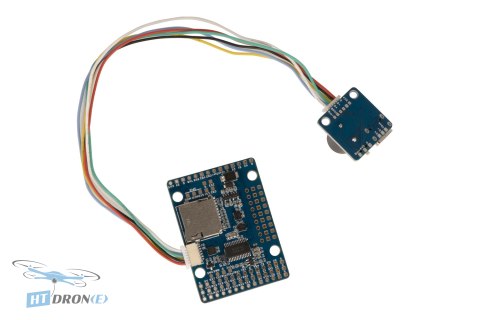

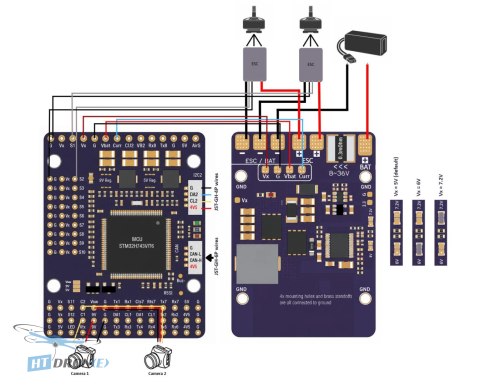

Pilotix H743-WING V3 Advanced Flight Controller for Fixed Wing UAVs

Introduction

The Pilotix H743-WING V3 Advanced Flight Controller is a cutting-edge solution designed specifically for Unmanned Aerial Vehicle (UAV) applications, with a strong focus on fixed-wing platforms. It delivers optimized stability, exceptional precision, and reliable, robust performance, making it the ideal choice for pilots seeking top-tier control for their advanced UAV systems. Its sophisticated design ensures it can handle complex tasks while maintaining a compact and lightweight profile.

Key Advantages

• High-Performance Processing: Equipped with an STM32H743VIH6 MCU running at 480MHz, providing ample power for complex flight calculations.
• Advanced Stabilization: Features dual third-generation InvenSense gyroscopes (ICM-42688-P & ICM-42605) optimized for superior UAV flight stability.
• Accurate Altitude Sensing: Integrates an IPX8 waterproof DPS368 barometer from Infineon Semiconductor for highly accurate altitude readings.
• Extensive Connectivity: Offers 13 PWM output ports with CAN bus expansion for increased output capabilities.
• Robust Power Management: Built-in BEC modules deliver a combined output of up to 130W for connected devices.
• Comprehensive Data Logging: Includes an onboard TF card slot supporting up to 32GB for extensive flight data recording (Blackbox functionality).
• Integrated OSD: Supports both Analog and HD OSD for clear, on-screen flight information.
• Versatile Firmware Support: Compatible with INAV (MATEKH743) and Ardupilot (MATEKH743) firmware.

Technical Specifications

• MCU: STM32H743VIH6
• Frequency: 480MHz
• Flash: 2MB
• RAM: 1MB
• Gyroscopes: Dual InvenSense ICM-42688-P & ICM-42605 (3rd Gen)
• Barometer: Infineon DPS368 (IPX8 Waterproof)
• Compass: QMC5883L
• OSD: Analog/HD OSD
• UARTs: 7x
• PWM Outputs: 13x
• I2C: 2x
• CAN Bus: 1x
• ADC: 4x (VLT2, CURR2, ASPD, RSSI)
• Built-in BEC: 9V for VTX and Camera (3A), 5V/6.2V/7.4V for Servos (12A), 5V for other devices (5A)
• Video Switch: Built-in dual CAM PinIO switch
• Blackbox Storage: TF card slot (Max 32GB)
• Input Voltage: 12-28V DC (3-6S LiPo)
• Dimensions: 30.5mm x 44.5mm x 7.5mm
• Weight: 27g
• Firmware: INAV (MATEKH743), Ardupilot (MATEKH743)

Applications

This advanced flight controller is perfect for a wide range of UAV applications including long-endurance fixed-wing aircraft, aerial photography platforms, mapping drones, inspection UAVs, and custom-built autonomous systems. Its robust features also make it suitable for advanced FPV fixed-wing racers seeking maximum control and stability.

Compatibility

The Pilotix H743-WING V3 is designed for compatibility with standard LiPo batteries (3-6S) and features multiple BEC outputs (9V, 5V, 6.2V, 7.4V) to power various onboard components like VTX, cameras, and servos. It offers extensive UART, PWM, I2C, and CAN interfaces for connecting a wide array of peripherals and sensors.

FAQ

What is the Pilotix H743-WING V3 Advanced Flight Controller best suited for?

The Pilotix H743-WING V3 Advanced Flight Controller is optimized for fixed-wing UAV applications, offering superior stability and precision for tasks like aerial photography, mapping, inspection, and advanced FPV racing.

What are the key processing and sensor advantages of the H743-WING V3?

It features a powerful STM32H743VIH6 MCU running at 480MHz, dual InvenSense ICM-42688-P & ICM-42605 gyroscopes for enhanced stability, and a high-accuracy DPS368 barometer for precise altitude control.

What connectivity options does the Pilotix H743-WING V3 offer?

This flight controller provides 13 PWM output ports, 7 UARTs, 2 I2C ports, and a CAN bus interface, along with ADC inputs for voltage, current, airspeed, and RSSI. It also includes a dual CAM PinIO video switch.

Can I log flight data with the Pilotix H743-WING V3?

Yes, the Pilotix H743-WING V3 features an integrated TF card slot that supports up to 32GB, enabling extensive Blackbox data logging for flight analysis and tuning.

Where can I buy the Pilotix H743-WING V3 flight controller with fast delivery?

You can order the Pilotix H743-WING V3 Advanced Flight Controller directly from HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL.
